Disassembly & Reassembly

Separate outer CV joint from axle shaft. Place stub shaft assembly onto Remover/Installer (T88P-20202-A) with splined end of stub shaft up. Press anti-lock brake sensor ring off stub shaft assembly.
To reassemble, place ABS sensor ring onto remover/installer. Position stub shaft through anti-lock brake sensor ring (splined end of stub shaft down). Press stub shaft through ring until fully seated.

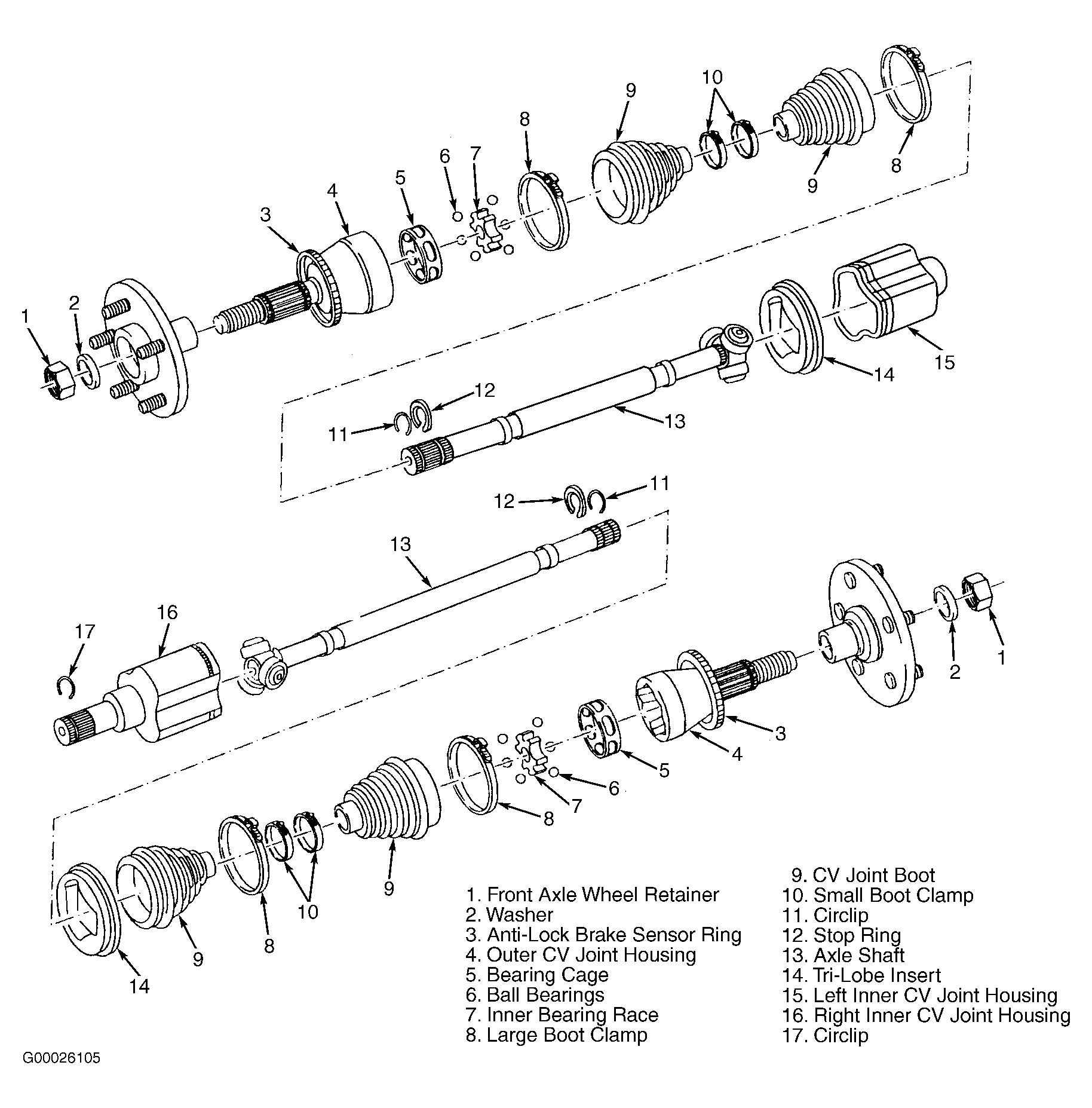

Fig 1: Exploded View Of Axle Shaft & CV Joint Assemblies (GKN)

Courtesy of FORD MOTOR.

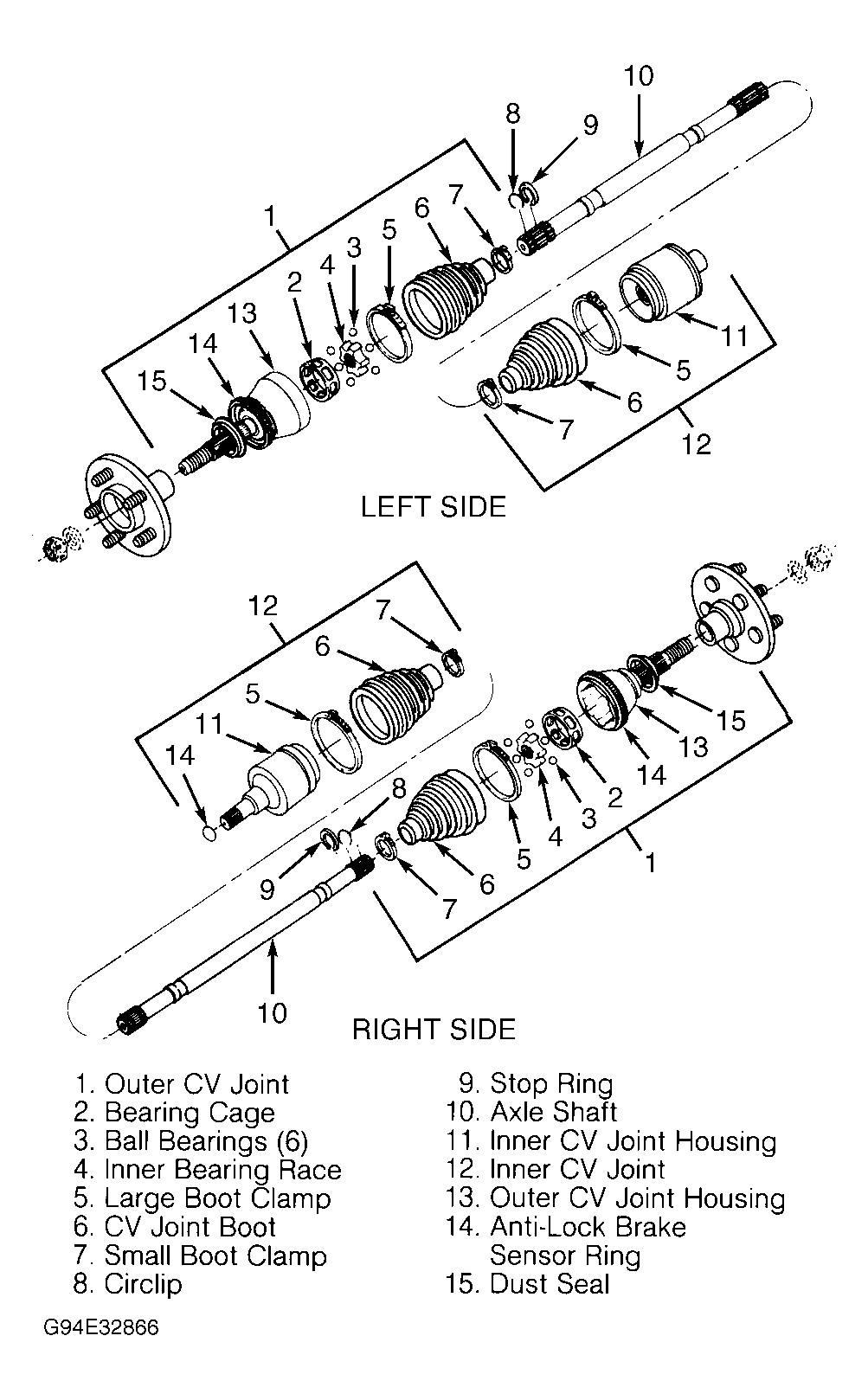

Fig 2: Exploded View Of Axle Shaft & CV Joint Assemblies (Ford)

Courtesy of FORD MOTOR CO.
