Removal (3.0L 2V - Sable & Taurus)

  1. Remove the battery. Disconnect the Mass Air Flow (MAF) sensor and the breather tubes. See Fig 1.

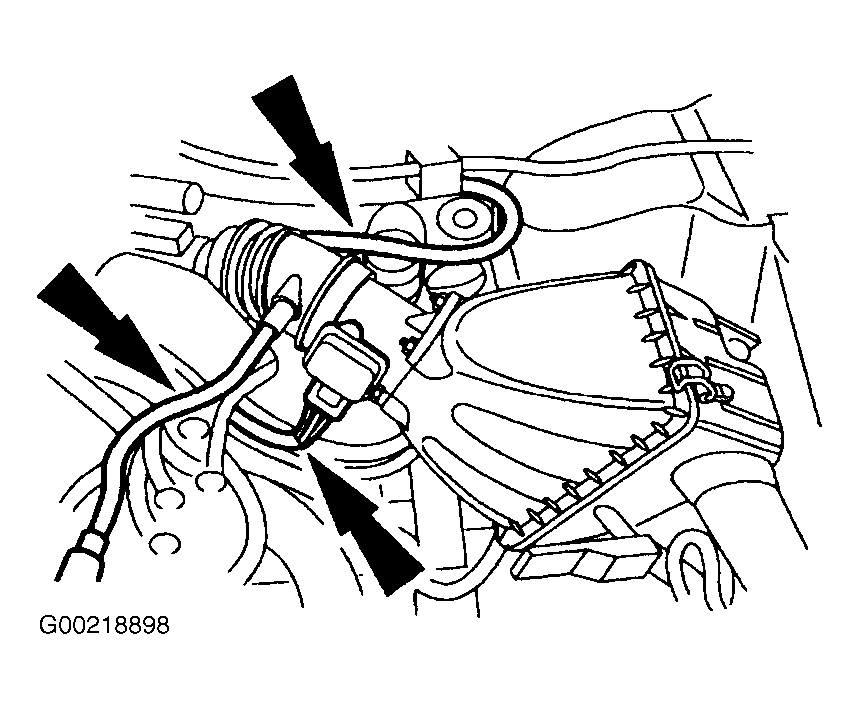

    2. Fig 1: Disconnecting Mass Air Flow Sensor & Breather Tubes
    G00218898Courtesy of FORD MOTOR CO.
  2. Remove the engine air cleaner. See Fig 2. Remove the air filter assembly. See Fig 2.

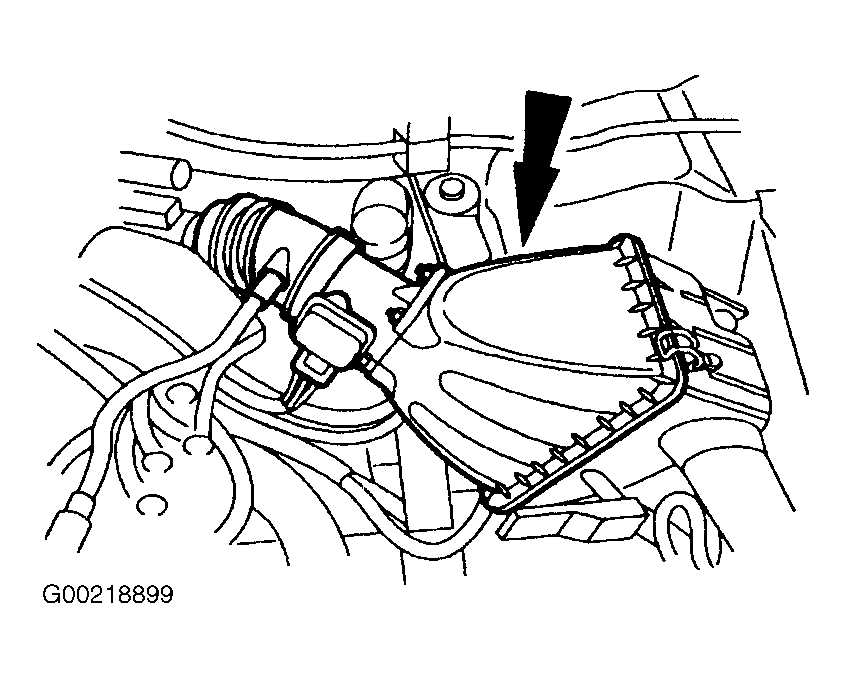

    3. Fig 2: Removing Engine Air Cleaner
    G00218899Courtesy of FORD MOTOR CO.

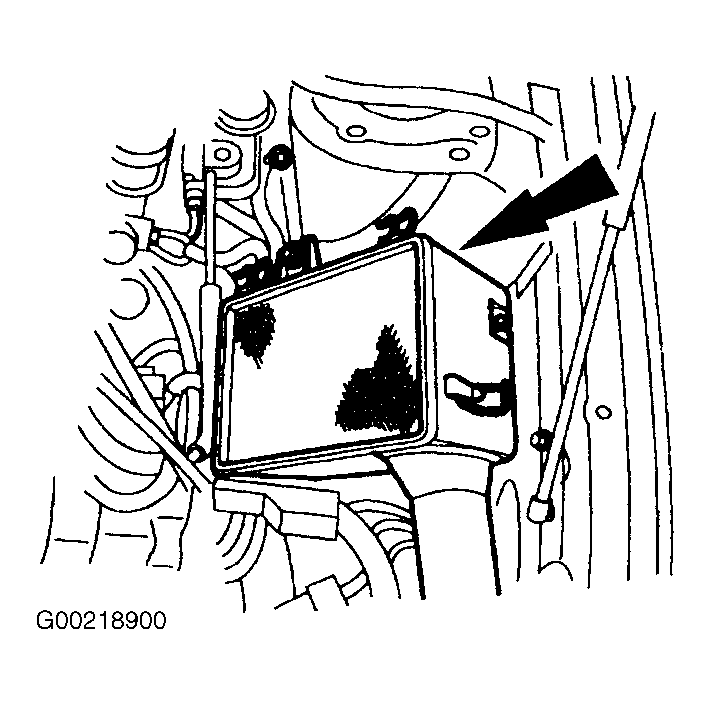

    Fig 3: Removing Air Filter Assembly
    G00218900Courtesy of FORD MOTOR CO.
  3. Remove the battery tray. See Fig 4. Disconnect the connectors. See Fig 5.

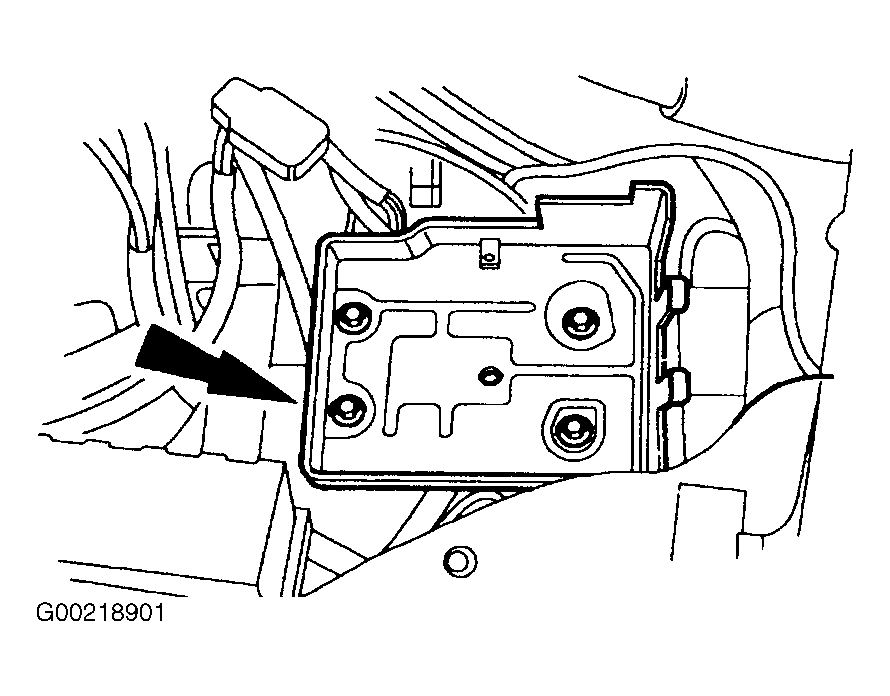

    4. Fig 4: Removing Battery Tray
    G00218901Courtesy of FORD MOTOR CO.

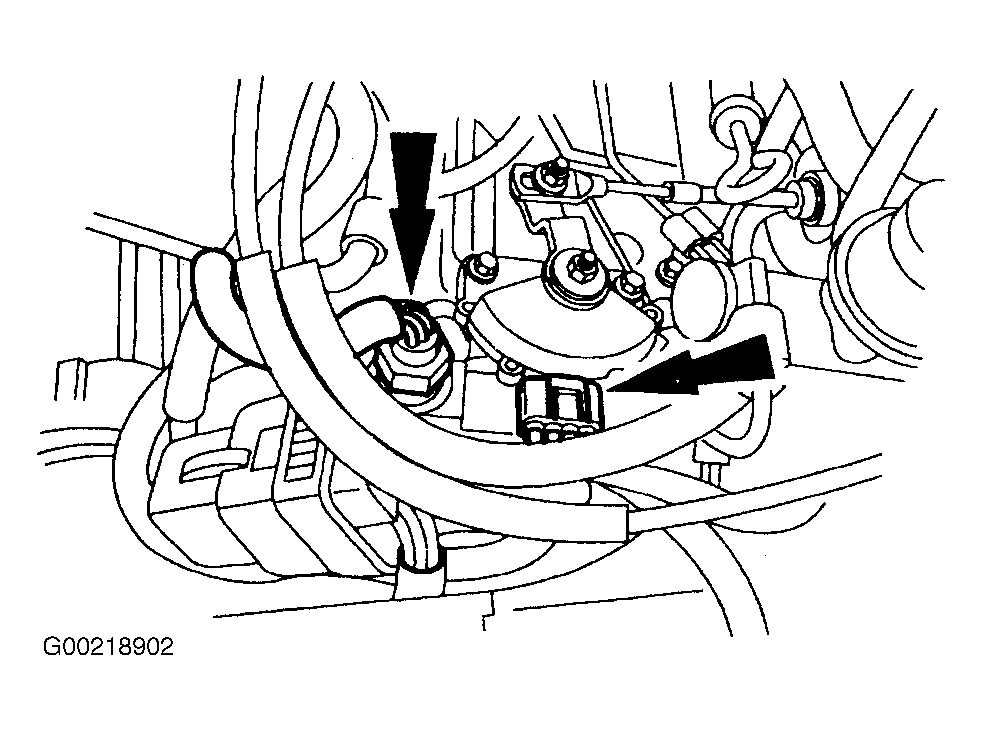

    Fig 5: Disconnecting Connectors
    G00218902Courtesy of FORD MOTOR CO.
  4. Disconnect the connector. See Fig 6. Remove the power steering line bracket. See Fig 7.

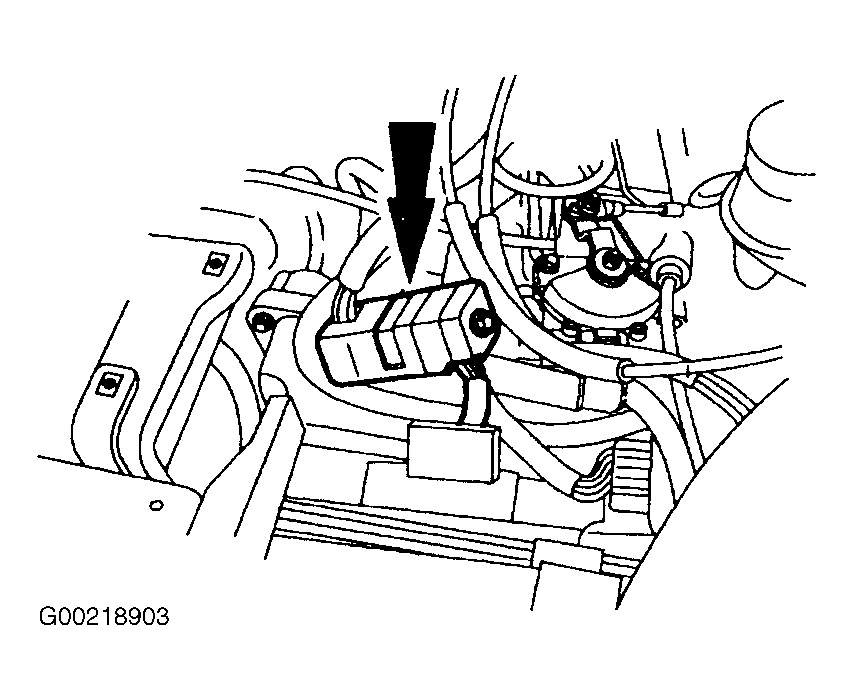

    5. Fig 6: Disconnecting Connector
    G00218903Courtesy of FORD MOTOR CO.

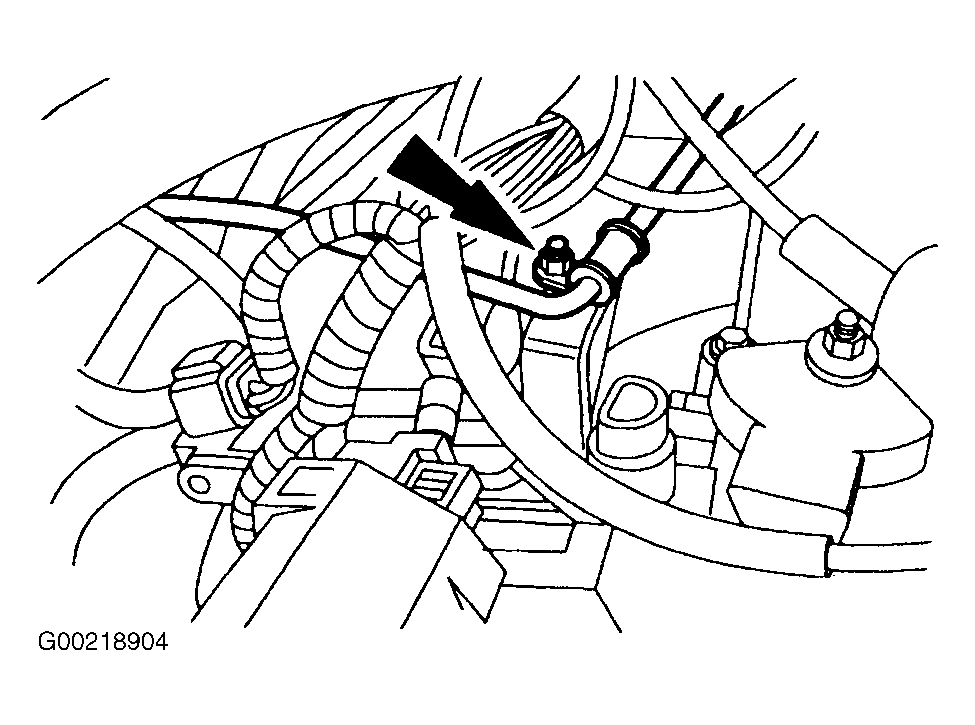

    Fig 7: Removing Power Steering Line Bracket
    G00218904Courtesy of FORD MOTOR CO.
  5. Remove the electrical connector bracket. See Fig 8. Disconnect the power steering and Turbine Shaft Speed (TSS) sensor connectors. See Fig 9.

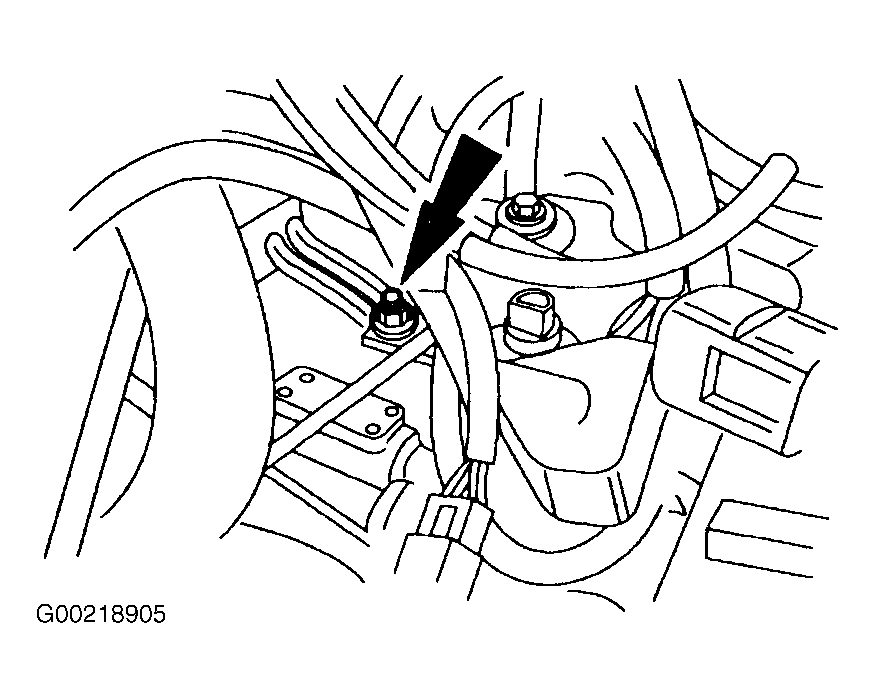

    6. Fig 8: Removing Electrical Connector Bracket
    G00218905Courtesy of FORD MOTOR CO.

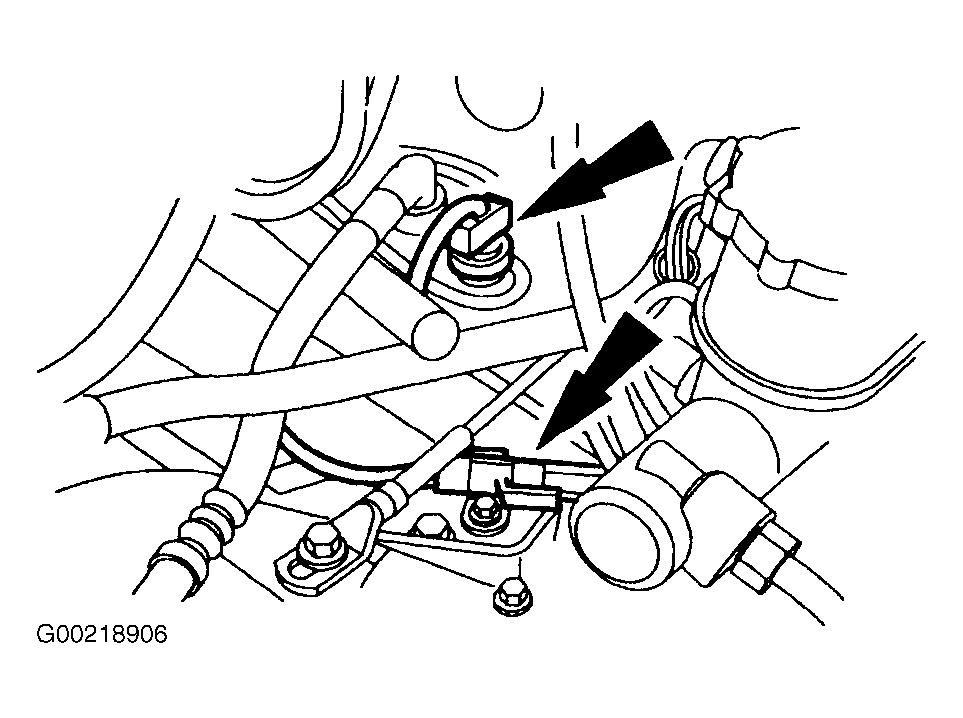

    Fig 9: Disconnecting Power Steering & Output Shaft Speed Sensor
    G00218906Courtesy of FORD MOTOR CO.
  6. Disconnect the TSS sensor connector. See Fig 10. Remove the manual control lever cable. Remove the nut. Remove the shift actuator cable fitting from the shift cable and bracket. See Fig 11.
    7. Fig 10: Disconnecting Turbine Shaft Speed Sensor
    G00218907Courtesy of FORD MOTOR CO.

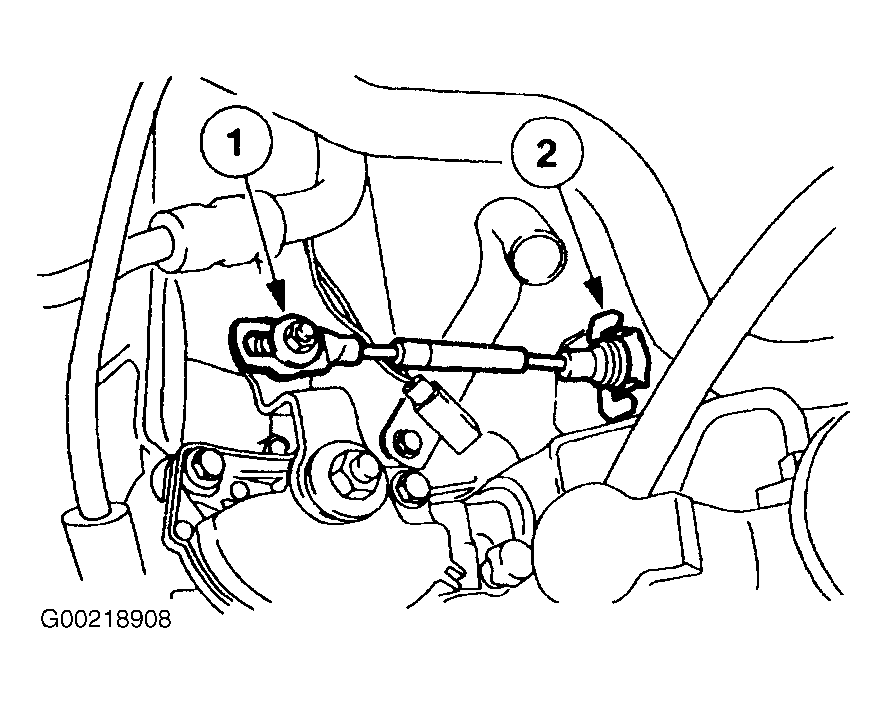

    Fig 11: Removing Manual Control Lever Cable
    G00218908Courtesy of FORD MOTOR CO.
  7. Remove the ground cable and bracket. See Fig 12. Remove the cooler line retaining clips. See Fig 13.

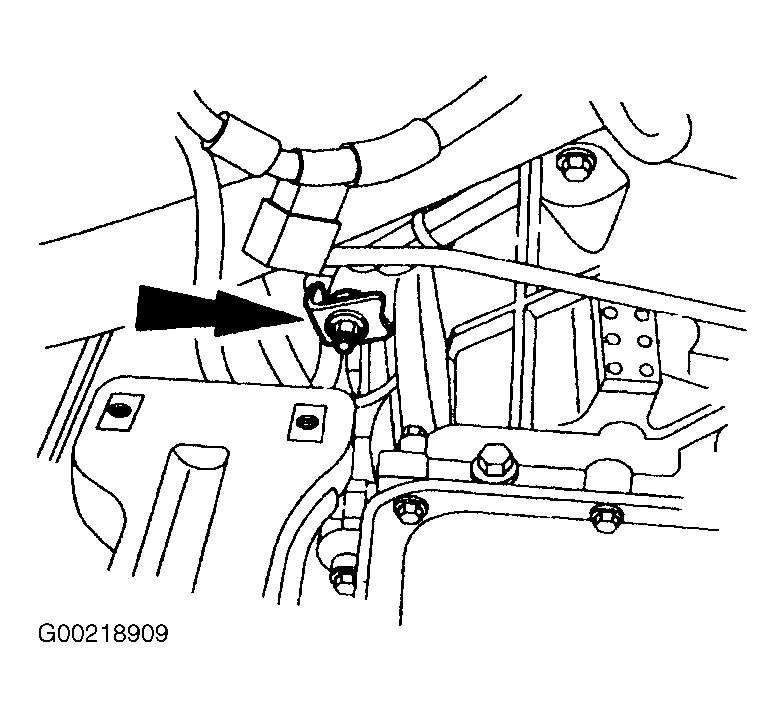

    8. Fig 12: Removing Ground Cable & Bracket
    G00218909Courtesy of FORD MOTOR CO.

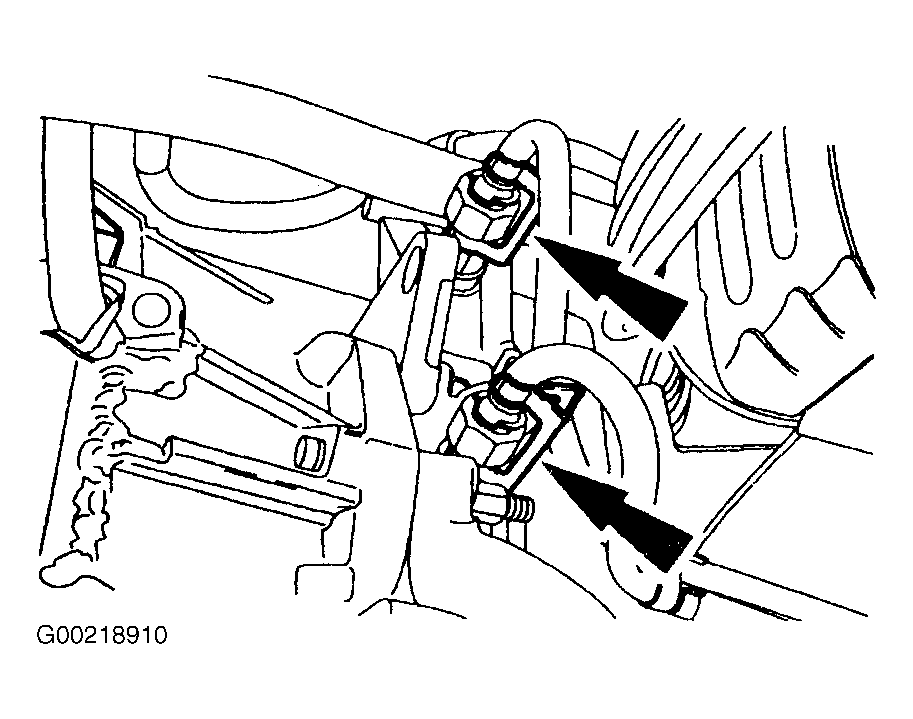

    Fig 13: Removing Cooler Line Retaining Clips
    G00218910Courtesy of FORD MOTOR CO.
  8. Depress the tabs on the plastic insert retainer and remove cooler lines from fitting. See Fig 14. Remove the bolts. See Fig 15.

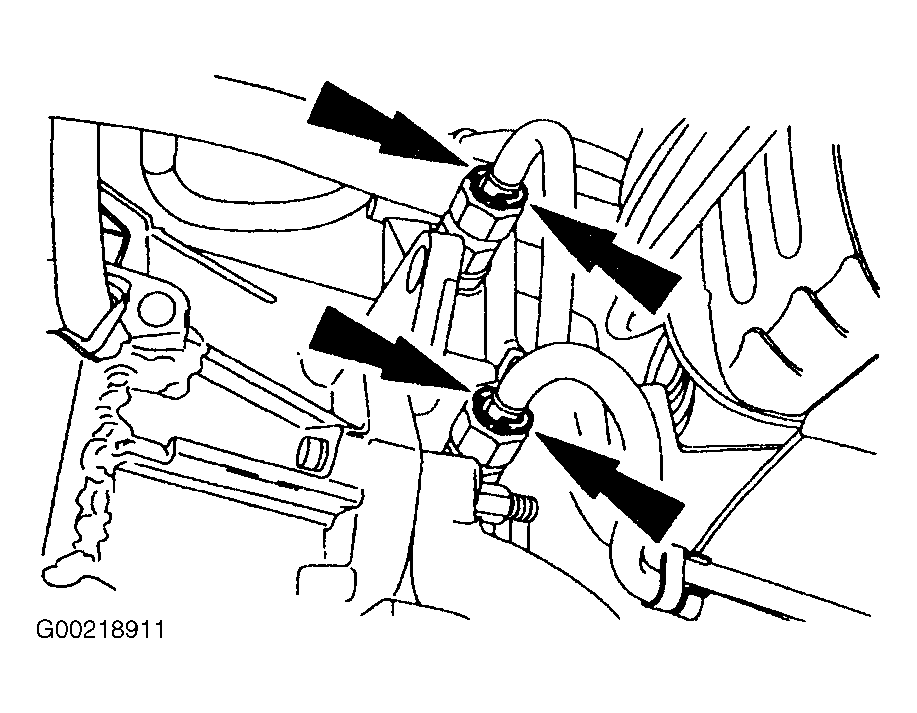

    9. Fig 14: Removing Cooler Lines From Fitting
    G00218911Courtesy of FORD MOTOR CO.

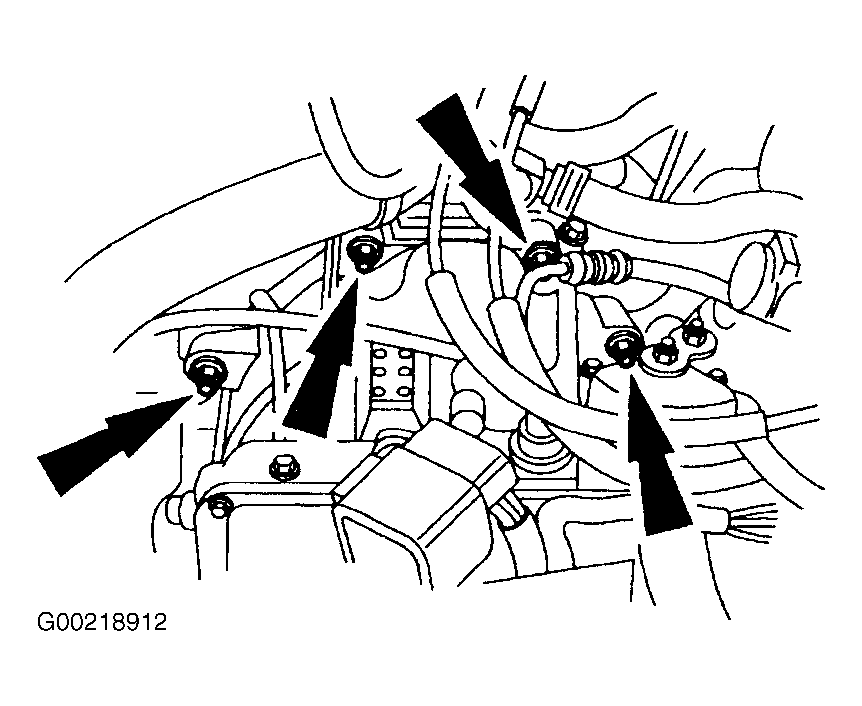

    Fig 15: Removing Bolts
    G00218912Courtesy of FORD MOTOR CO.
  9. Install the 3 bar engine support. See Fig 16. Install the engine lifting bracket on the right (back) hand side of the engine. See Fig 17.

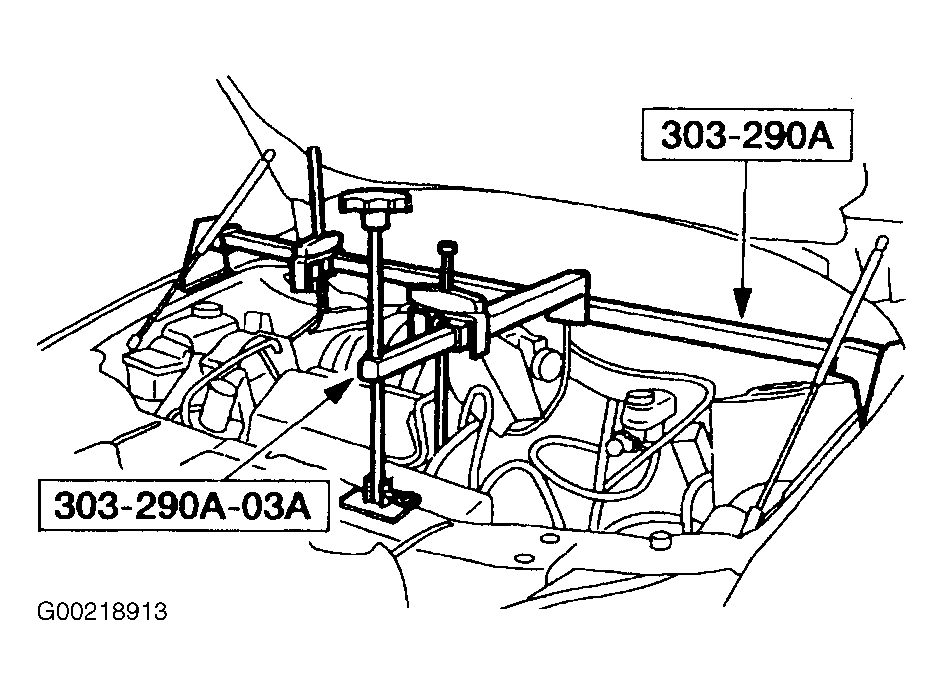

    10. Fig 16: Installing Special Engine Support Tool
    G00218913Courtesy of FORD MOTOR CO.

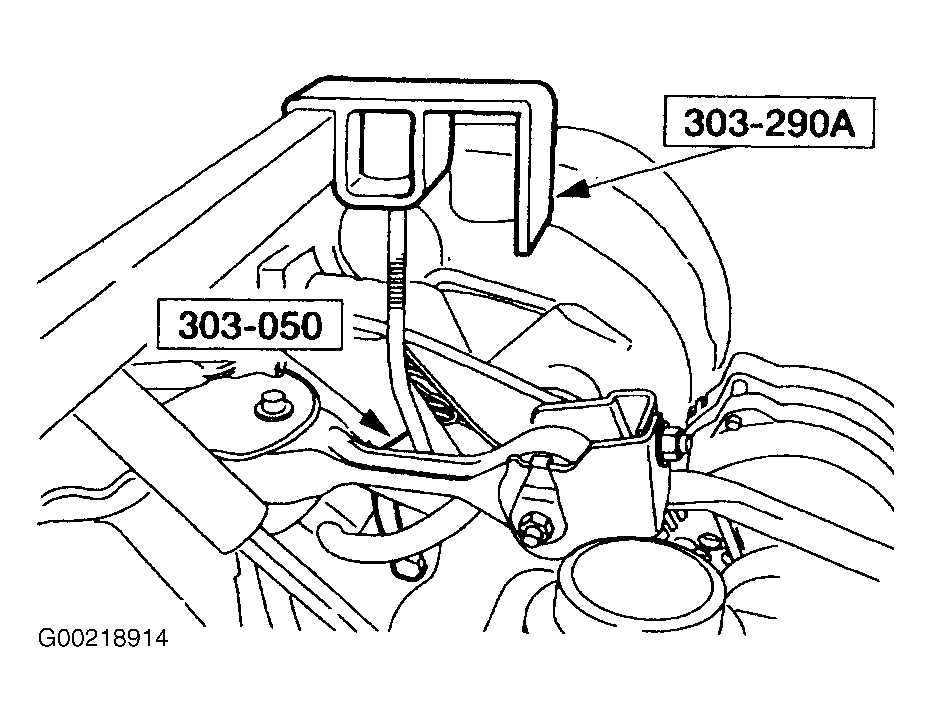

    Fig 17: Installing Special Engine Lifting Bracket
    G00218914Courtesy of FORD MOTOR CO.
  10. Install the engine lifting bracket on the left (front) hand side of the engine. See Fig 18.

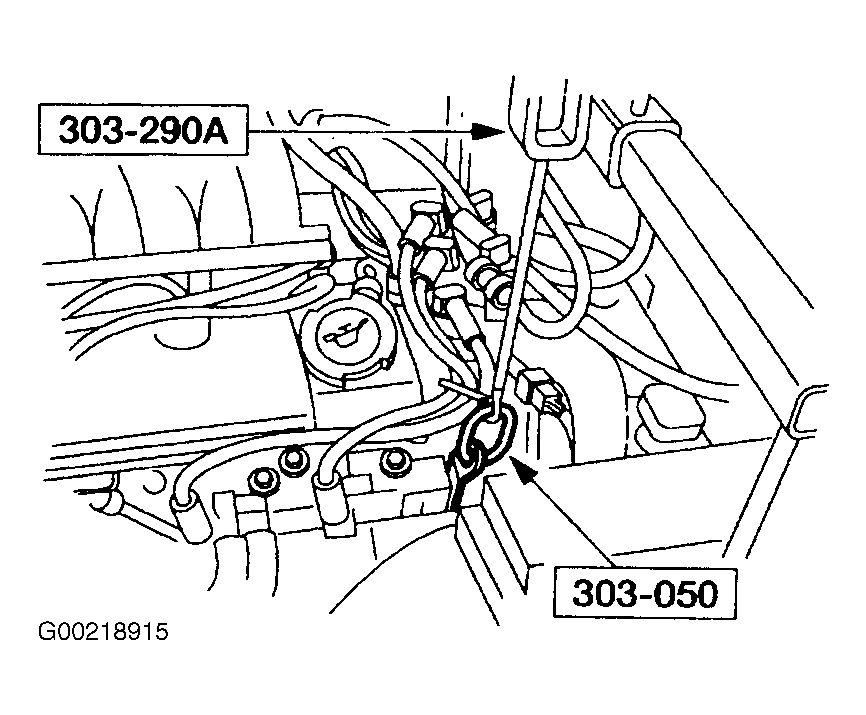

    11. Fig 18: Installing Special Engine Lifting Bracket
    G00218915Courtesy of FORD MOTOR CO.
  11. Raise the vehicle. Drain the transaxle fluid by lowering the transaxle pan. Once the fluid has drained, re-install the pan. Remove the sub frame assembly. Using the Half Shaft Remover (205-241) and Slide Hammer (100-001), remove the RH and LH half shaft from the transaxle and position out of the way. See Fig 19.
    CAUTION: If the steering gear is removed with the subframe, do not allow the steering wheel to rotate while the steering column intermediate is disconnected or damage to the clockspring can result. If there is evidence that the shaft has rotated, the clockspring must be recentered before the vehicle is driven.
    NOTE: The use of mechanic's wire will aid in positioning the half shaft out of the way.

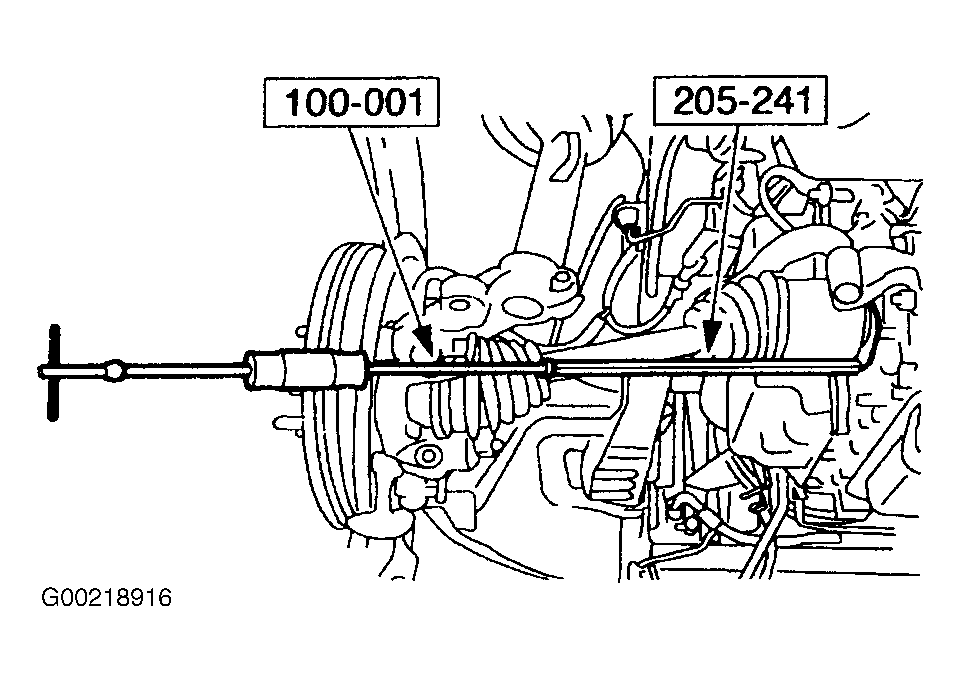

    12. Fig 19: Removing LH & RH Half Shafts
    G00218916Courtesy of FORD MOTOR CO.
  12. Remove the starter motor. Remove the transaxle housing cover. See Fig 20. Remove and discard the four torque converter to flexplate nuts. See Fig 21.
    13. Fig 20: Removing Transaxle Housing Cover
    G00218918Courtesy of FORD MOTOR CO.

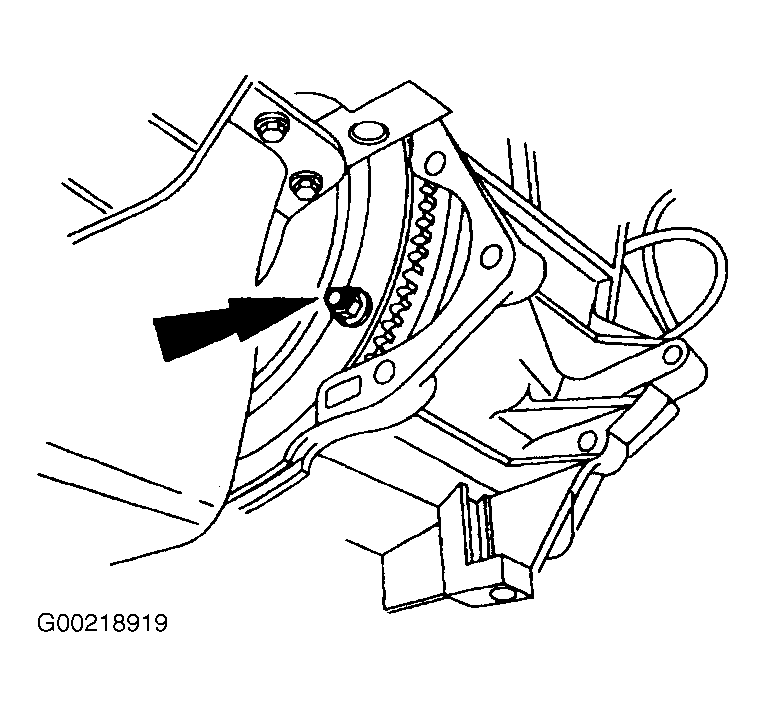

    Fig 21: Removing Flexplate Nuts
    G00218919Courtesy of FORD MOTOR CO.
  13. Position the high lift transaxle jack under the transaxle. See Fig 22. Remove the transaxle retaining bolts. See Fig 23.

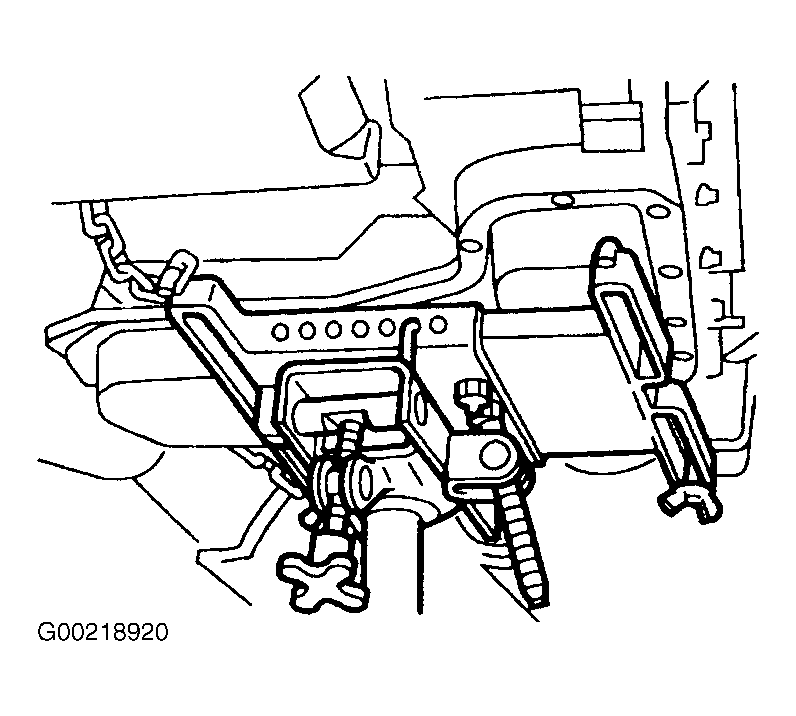

    14. Fig 22: Positioning Transaxle Jack
    G00218920Courtesy of FORD MOTOR CO.
    Fig 23: Removing Transaxle Retaining Bolts
    G00218921Courtesy of FORD MOTOR CO.
  14. Remove the transaxle retaining bolt. See Fig 24. Remove the bolts. See Fig 25.

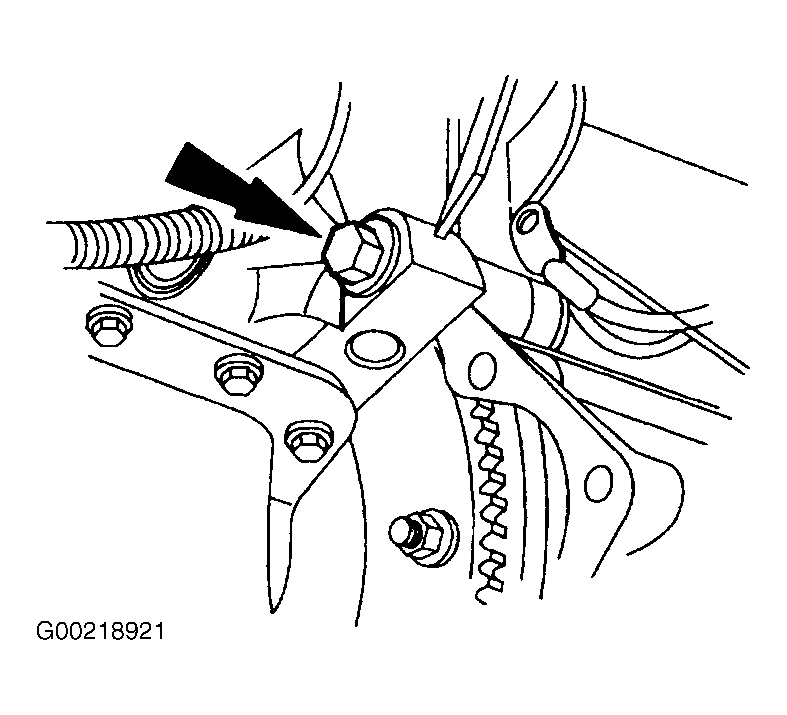

    15. Fig 24: Removing Transaxle retaining bolt
    G00218922Courtesy of FORD MOTOR CO.

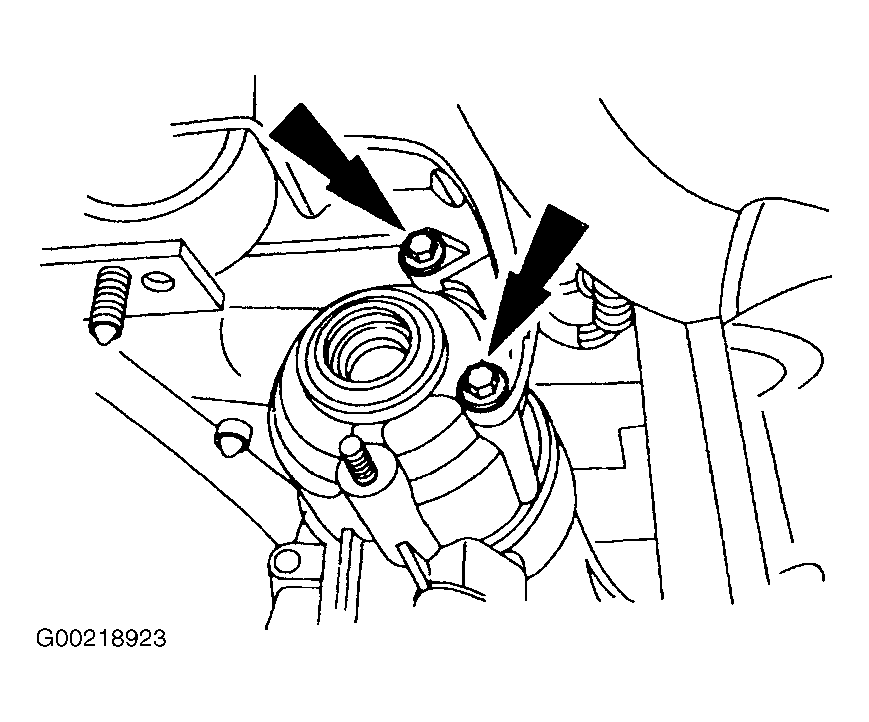

    Fig 25: Removing Bolts
    G00218923Courtesy of FORD MOTOR CO.
  15. Lower the transaxle assembly from the engine compartment. Remove the bolts. Remove the rear engine support bracket. See Fig 26. Remove the bracket. See Fig 27.

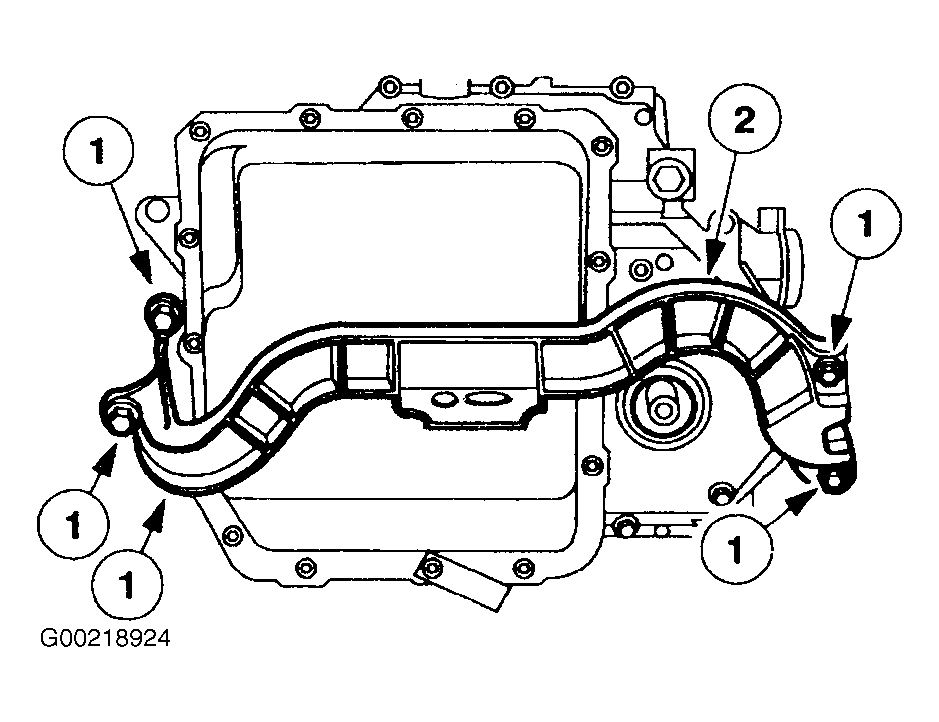

    16. Fig 26: Removing Rear Engine Support Bracket
    G00218924Courtesy of FORD MOTOR CO.

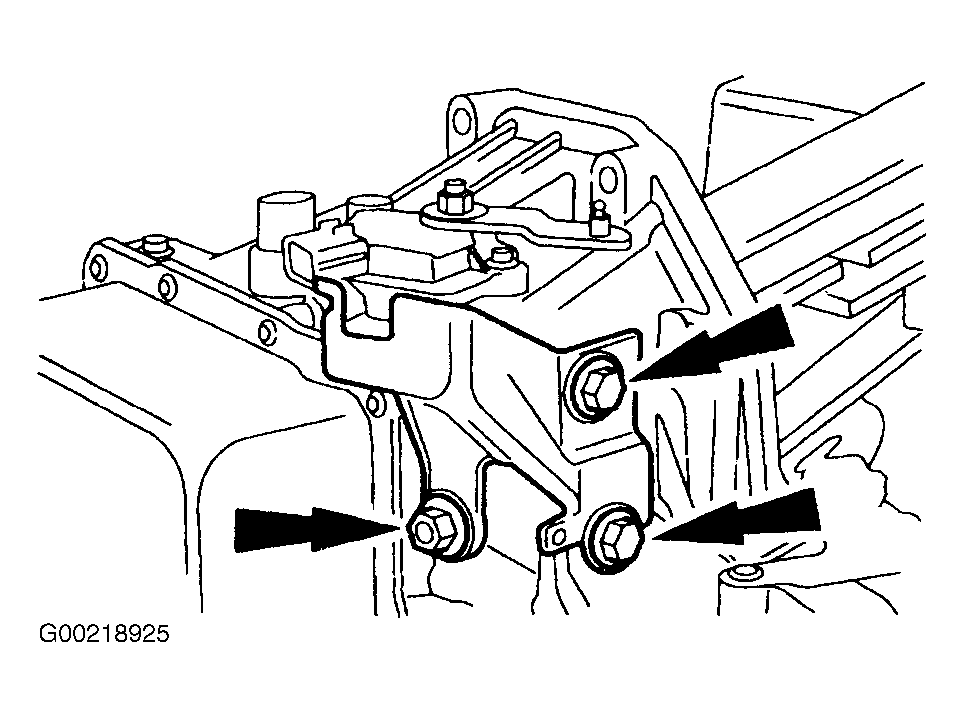

    Fig 27: Removing Bracket
    G00218925Courtesy of FORD MOTOR CO.
  16. Carry out transaxle fluid cooler backflushing and cleaning.
