Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the hub facing upward, position the outer bearing cup in the hub bore and place the special tools on the bearing cup.

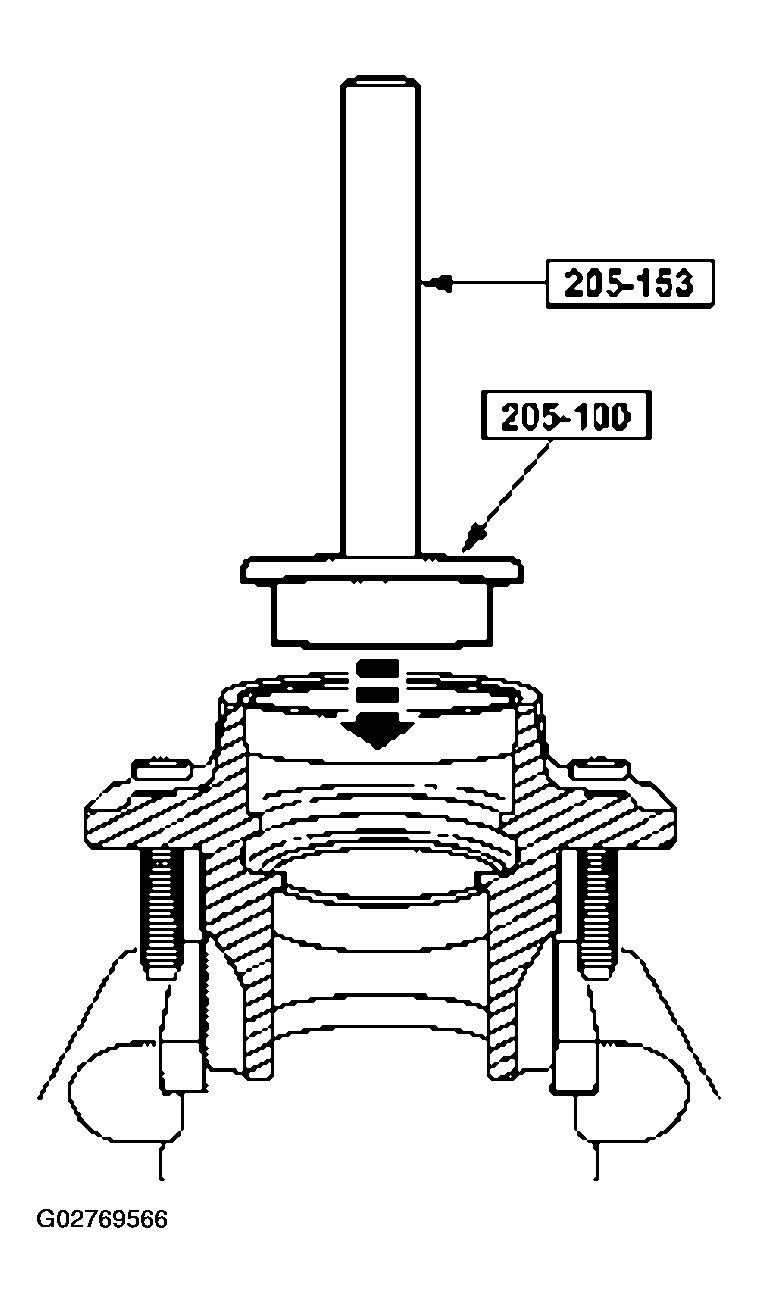

Fig 1: Placing Special Tools On Bearing Cup
Courtesy of FORD MOTOR CO.
Drive the outer bearing cup into the fully seated position.

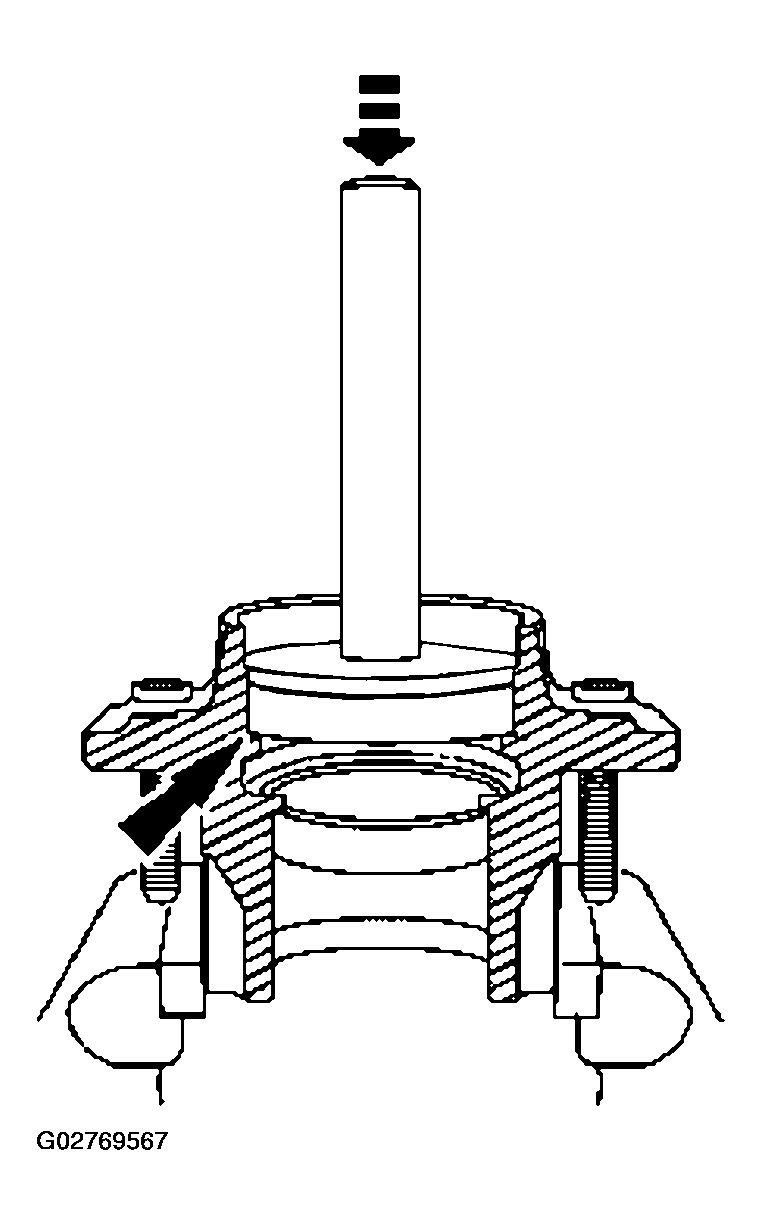

Fig 2: Installing Outer Bearing Cup
Courtesy of FORD MOTOR CO.
Reposition the hub facing downward. Position the inner bearing cup in the hub bore and place the special tools on the bearing cup.

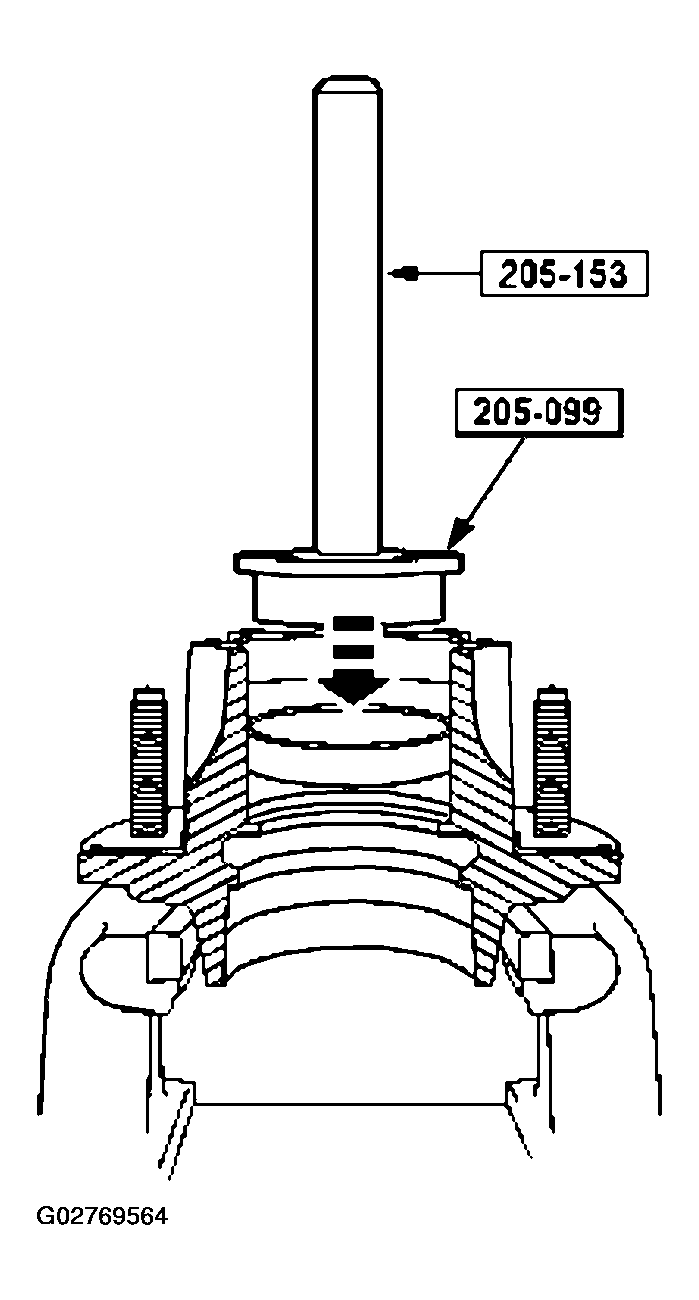

Fig 3: Placing Special Tools On Bearing Cup
Courtesy of FORD MOTOR CO.
Drive the inner bearing cup into the fully seated position.

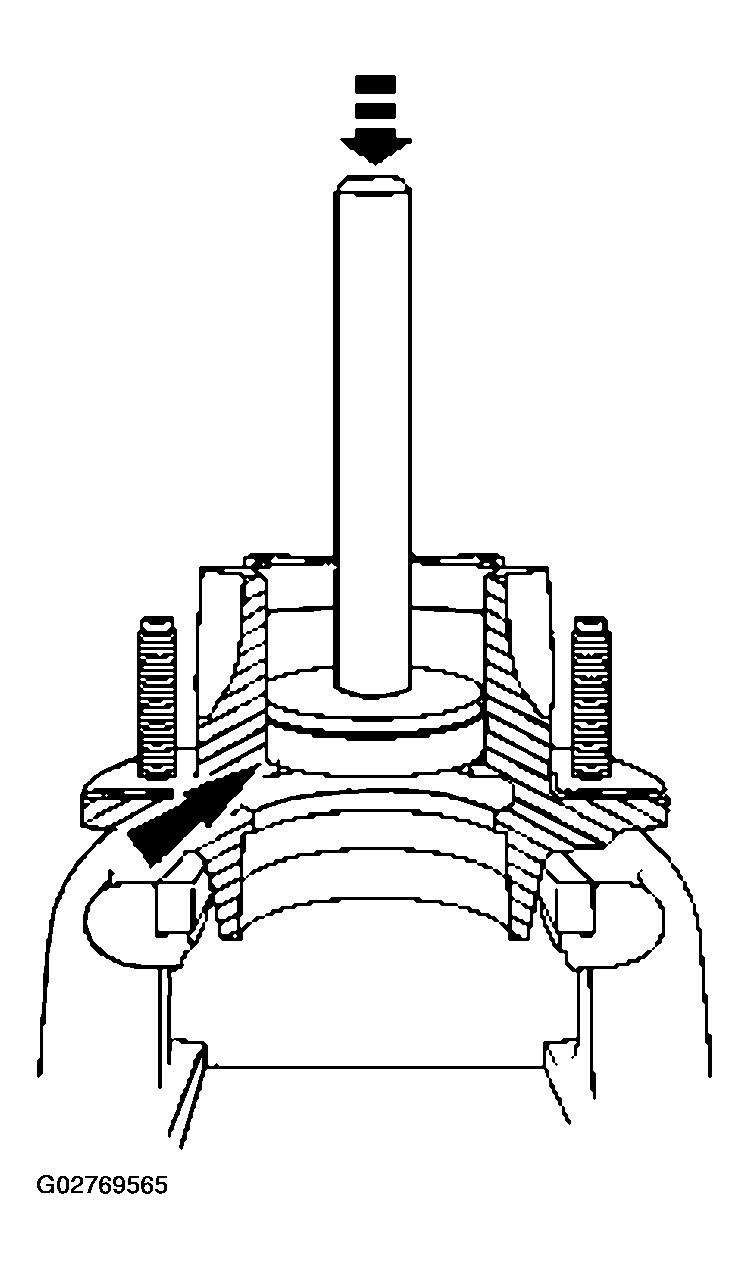

Fig 4: Installing Inner Bearing Cup
Courtesy of FORD MOTOR CO.

NOTE: The hub bearings must be prelubed with grease prior to installation. Pack each bearing with a bearing packing tool. Also apply grease to the thrust surface of the bearing. Use Premium Long-Life Grease XG-1 -C or equivalent meeting Ford specification ESA-M1C75-B.

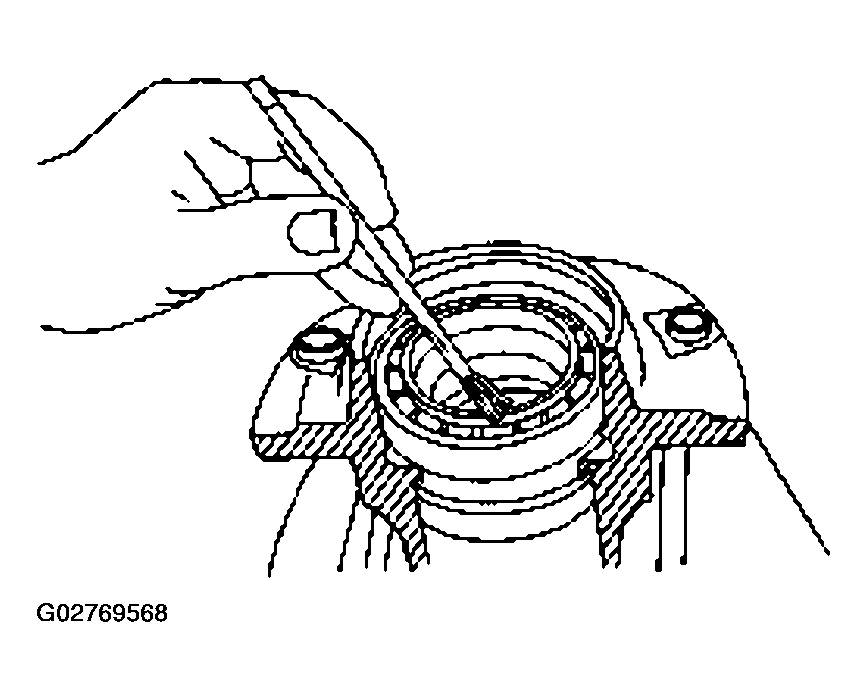

Fig 5: Positioning Grease In Inner Bearing Cup

Courtesy of FORD MOTOR CO.

Position the greased inner bearing in the inner bearing cup.

NOTE: The grease on the bearing and slinger holds the slinger in position during seal installation.

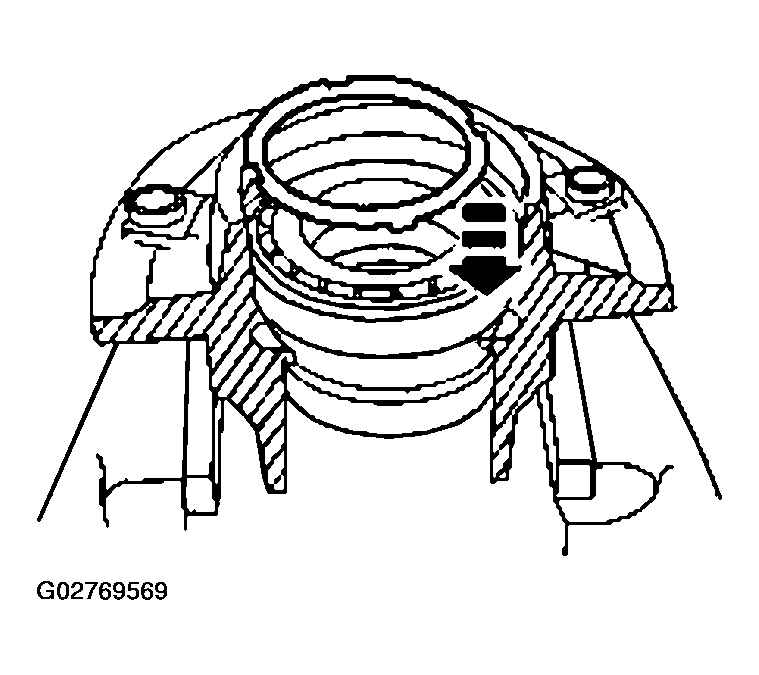

Fig 6: Positioning Slinger On Greased Bearing

Courtesy of FORD MOTOR CO.

Position the slinger on the greased bearing with the tangs facing the bearing.
With the slinger in place, position the hub seal in the hub bore and place the special tools on the hub seal.

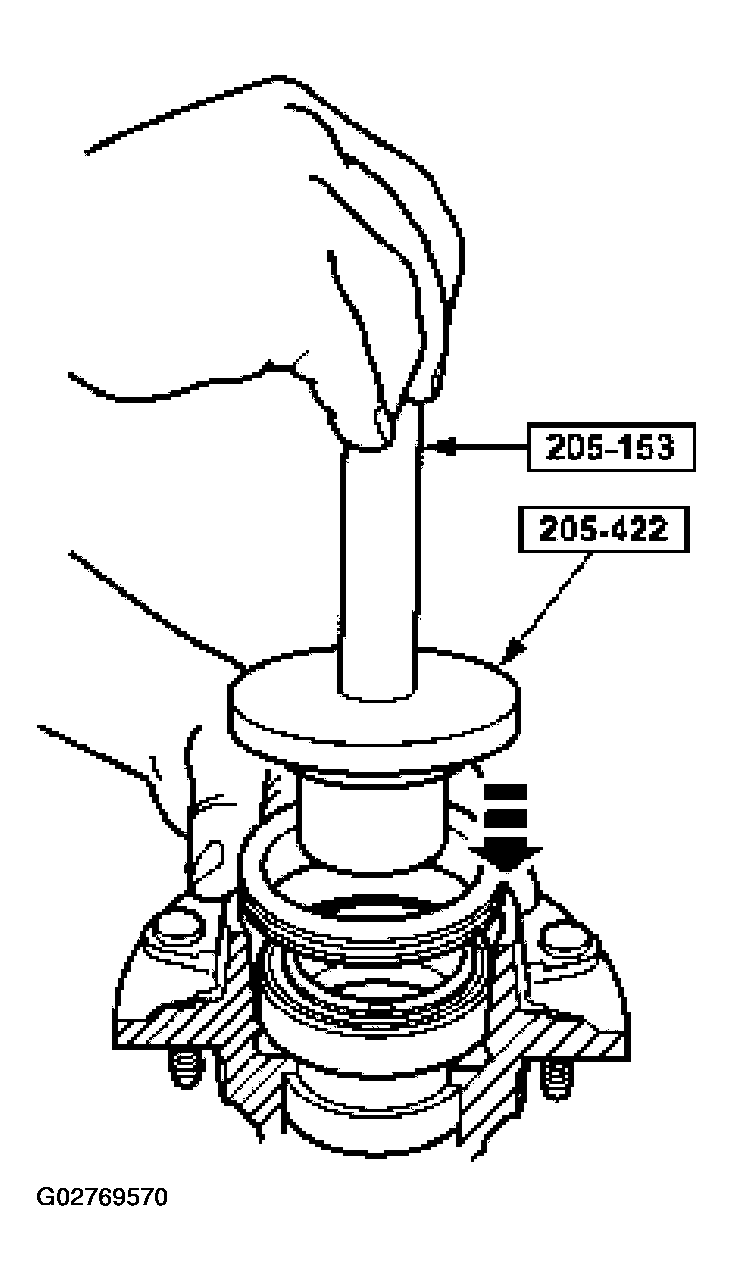

Fig 7: Placing Special Tools On Hub Seal
Courtesy of FORD MOTOR CO.
Holding the tool straight, drive the hub seal into position so that the seal flange bottoms out in the hub.

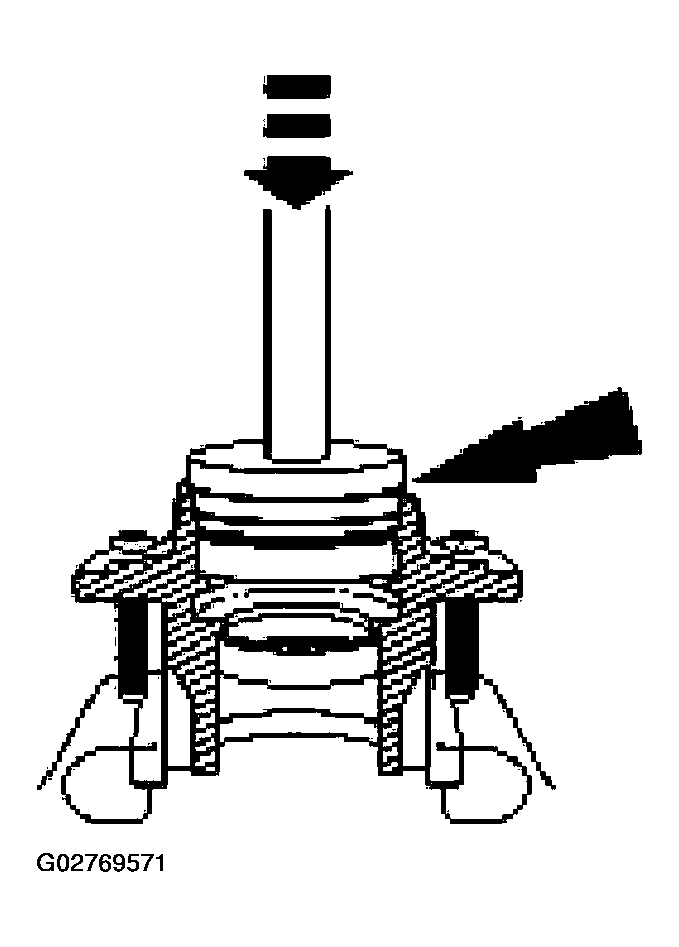

Fig 8: Driving Hub Seal Into Position Using Special Tool
Courtesy of FORD MOTOR CO.
