Axle Shaft: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The wheels and tires do not have to be removed in order to remove the axle shafts.

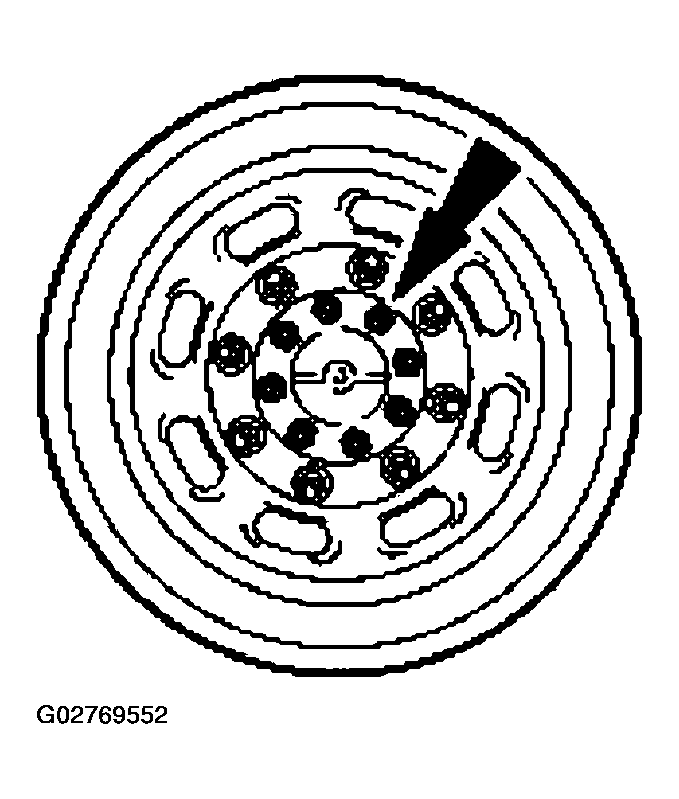

    Fig 1: Removing Axle Shafts Retaining Bolts
    G02769552Courtesy of FORD MOTOR CO.
  1. Loosen and remove the retaining bolts.
  2. Remove the axle shaft.
    Fig 2: Removing Axle Shaft
    G02769553Courtesy of FORD MOTOR CO.
  3. Inspect the axle shaft O-ring seal for cracks, nicks or wear and replace it if required.

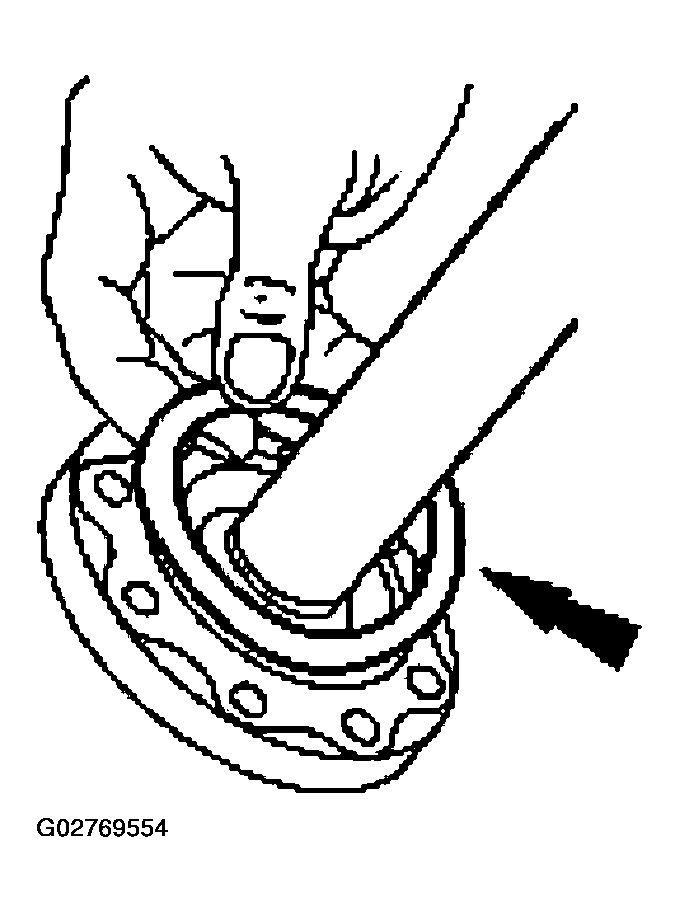

    Fig 3: Inspecting Axle Shaft O-Ring Seal
    G02769554Courtesy of FORD MOTOR CO.
