Axle Shaft: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Lubricate the O-ring seal with lubricant prior to installation of axle shaft.
  1. Install the axle shaft.

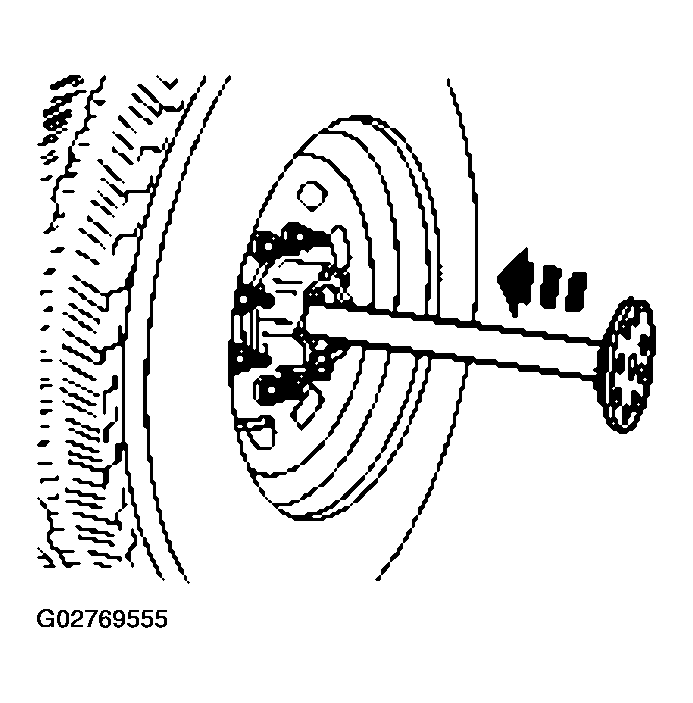

    Fig 1: Installing Axle Shaft
    G02769555Courtesy of FORD MOTOR CO.
    2. NOTE: Coat the threads of the retaining bolts with stud and bearing mount.
    Fig 2: Installing Axle Shaft Retaining Bolts
    G02769556Courtesy of FORD MOTOR CO.
  2. Install the retaining bolts and tighten.
