Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Removal

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear hub and brake disc assembly. For additional information, refer to Wheel Hub in this article.
Remove the rear hub seal and the inner rear wheel bearing.
- Discard the rear hub seal.
Fig 1: Identifying Rear Hub Seal
Courtesy of FORD MOTOR CO.
If not done previously, remove the bolts and separate the rear hub from the brake disc.

Fig 2: Identifying Rear Hub Bolts
Courtesy of FORD MOTOR CO.
Clean all the old grease and axle lubricant out of the rear hub.
Remove the inner and outer bearing cups.
- For model 80, use special tools 205-277 and 205-153 to remove the inner bearing cup. For model S110 or S130, use a suitable brass drift.
- For model 80, use special tools 205-275 and 205-153 to remove the outer bearing cup. For model S110 or S130, use a suitable brass drift.
Fig 3: Identifying Inner And Outer Bearing Cups
Courtesy of FORD MOTOR CO.
Clean the following components:
- The rear axle housing spindle.
- All the old grease and axle lubricant from the rear hub.
- The rear wheel bearings and cups.

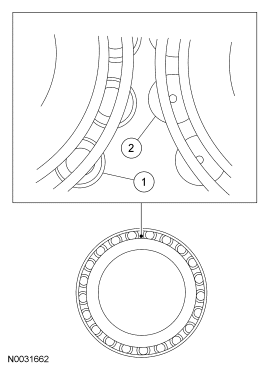

Inspect the bearing races and rollers for pitting, galling or erratic wear patterns. Check the rollers for end wear. Discard the bearings, if necessary.
- A typical new bearing roller.
- A worn bearing roller.
Fig 4: Identifying Bearing Roller
Courtesy of FORD MOTOR CO.
