Wheel Knuckle - F-450, F-550: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Pitman Arm Puller | 211-003 (T64P-3590-F) or Equivalent | |
| C-Frame and Screw | 211-023 (T74P-3044-A1) |
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

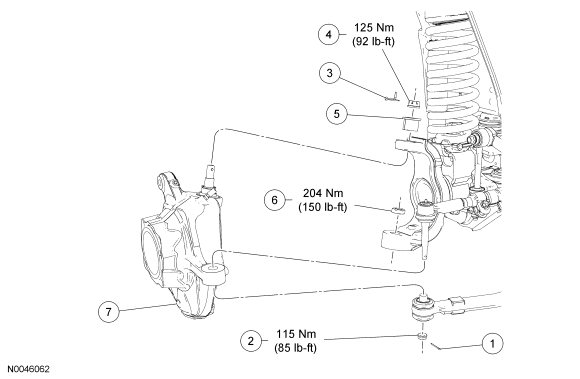

NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W525287-S | Cotter pin |
| 2 | W711373-S | Tie-rod end nut |
| 3 | W525287-S | Cotter pin |
| 4 | 3A049 | Upper ball joint nut |
| 5 | 3B404 | Camber adjuster |
| 6 | 3A050 | Lower ball joint nut |
| 7 | 3131 LH/ 3130 RH | Wheel knuckle |
