Shock Absorber - F-250, F-350: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

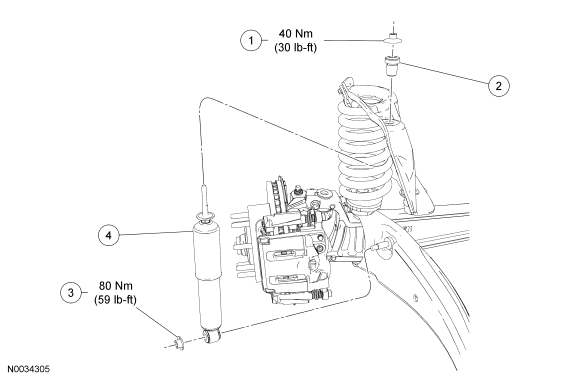

Fig 1: Identifying Shock Absorber With Specifications - F-250, F-350

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W806246-S	Upper nut and washer
2	18198	Upper bushing
3	W806085-S	Lower nut and washer
4	18045	Shock absorber
