Radius Arm Bushing - F-450, F-550: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Remover/Installer, Radius Arm Bushing	204-356

NOTE: LH shown, RH similar.

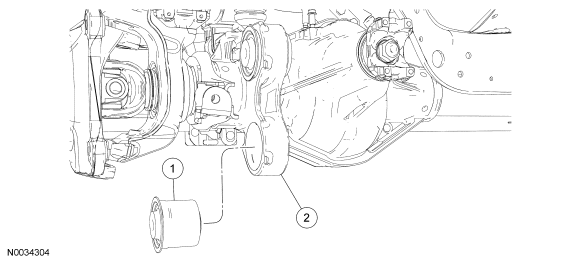

Fig 1: Identifying Radius Arm Bushing - F450, F-550

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Radius arm bushing
2	3002	Axle assembly
