Wheel Spindle - F-250, F-350: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04643126
 Pitman Arm Puller
211-003 (T64P-3590-F)
NOTE: RH shown, LH similar.

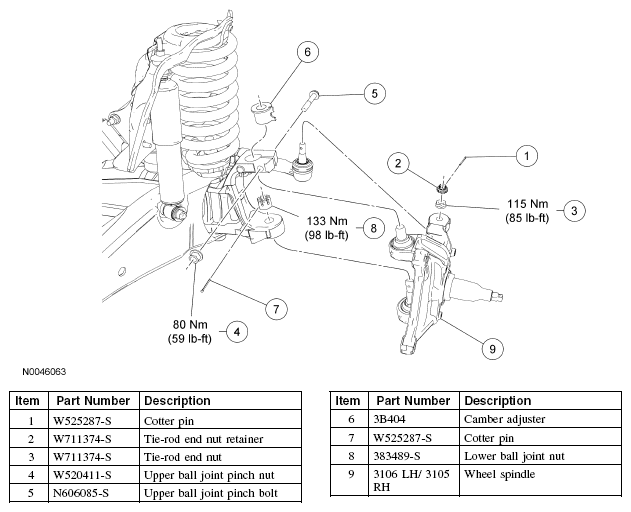

Fig 1: Wheel Spindle -- F-250, F-350 Replacement Components With Torque Specifications
G04643127Courtesy of FORD MOTOR CO.
