Wheel Bearing and Wheel Hub - F-450, F-550: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

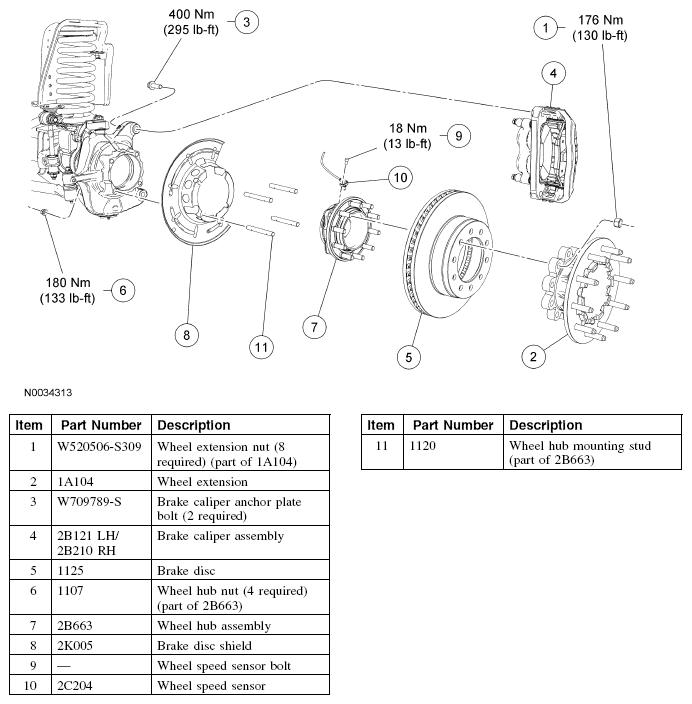

Fig 1: Wheel Bearing And Wheel Hub -- F-450, F-550 Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
