Rear Brake Caliper: Inspection

Clean all metal parts with isopropyl alcohol and dry with compressed air. Replace components if worn, pitted or scored.

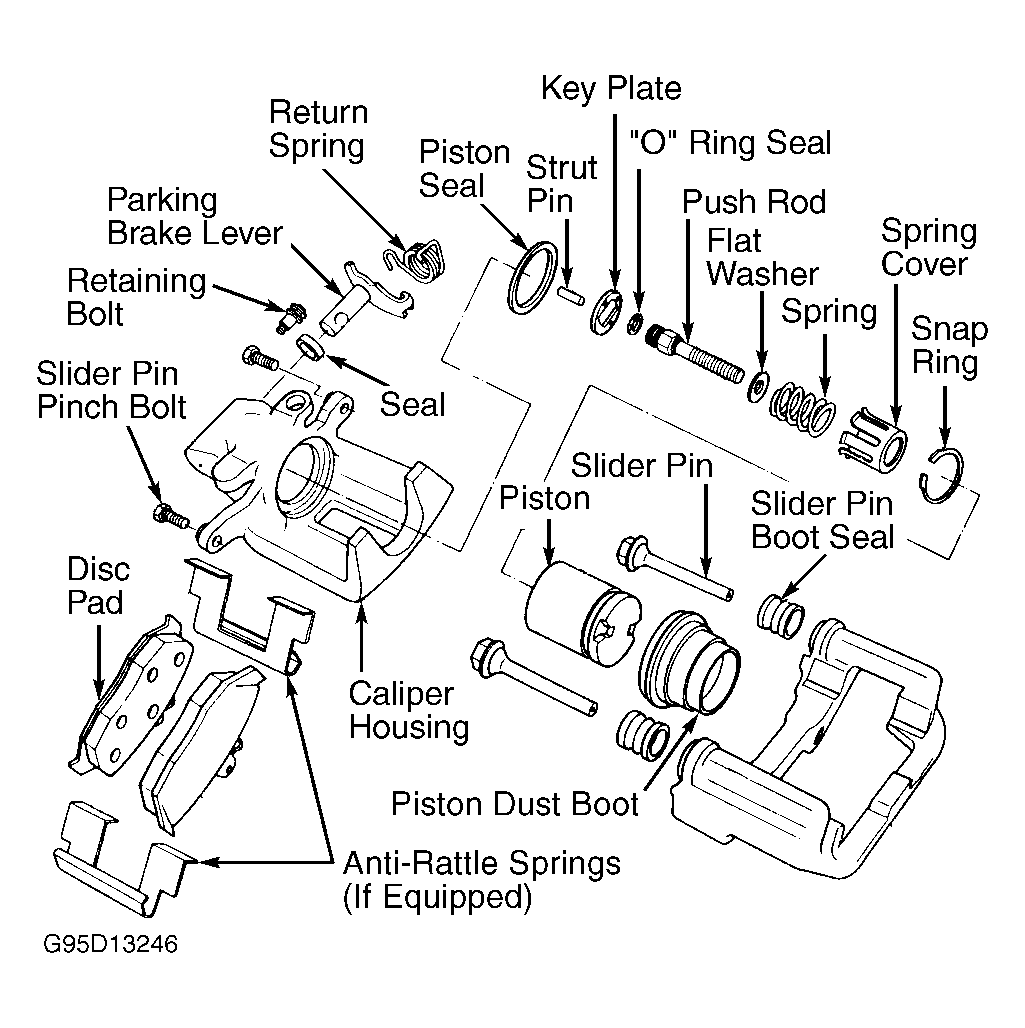

Fig 1: Exploded View Of Rear Caliper (Continental, Cougar, Mustang, Sable & Taurus)

Courtesy of FORD MOTOR CO.

Clean all parts with isopropyl alcohol and dry with compressed air. Lubricate piston with clean brake fluid. Replace components if worn, pitted or scored.
