Front Brake Caliper: Reassembly

Apply a film of clean brake fluid to seal, bore and piston. Install piston seal and dust boot in caliper bore. Spread dust boot over piston, and install piston squarely into caliper bore. To complete assembly, reverse removal procedure. Bleed brakes. See BLEEDING BRAKE SYSTEM .

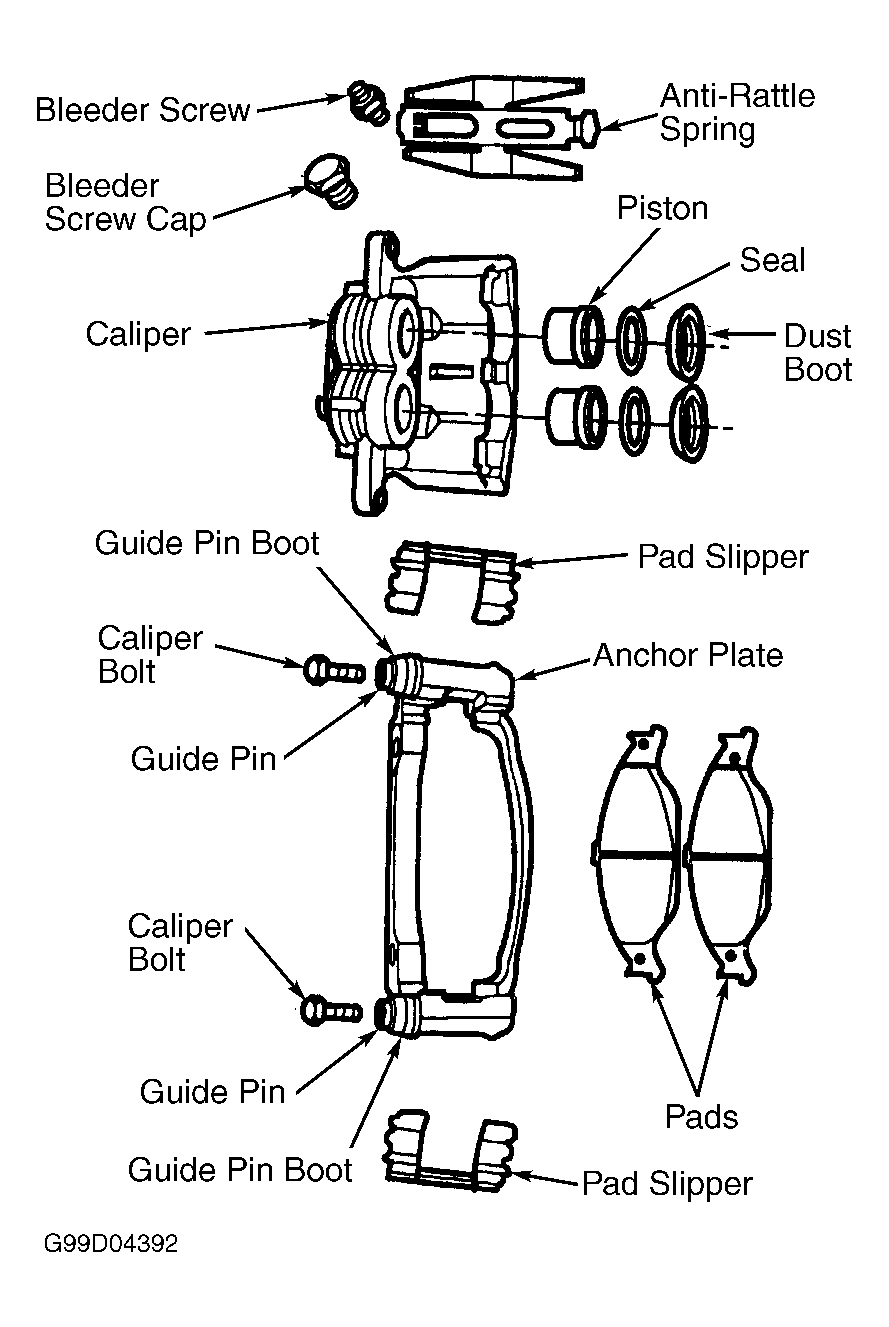

Fig 1: Exploded View Of Front Caliper (Mustang Cobra)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Typical Front Caliper (Except Mustang Cobra)

Courtesy of FORD MOTOR CO.
