Valve Body Solenoids

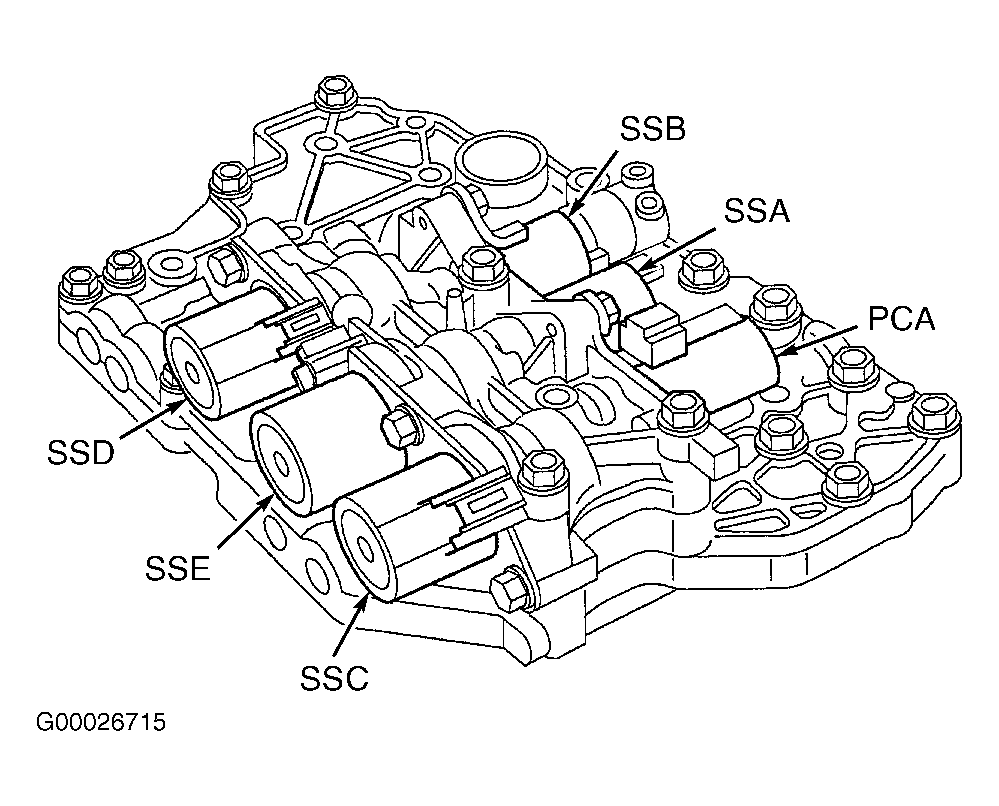

Raise and support vehicle. Remove transaxle oil pan to access valve body solenoid assembly. Disconnect solenoid wire connector(s). See Figure . Using an ohmmeter, measure resistance between specified terminal(s) and solenoid body. See VALVE BODY SOLENOID RESISTANCE table. See Fig 1 . If resistance(s) is within specification, solenoid is okay at this time. If resistance(s) is not within specification, replace faulty solenoid(s) and retest system operation.
VALVE BODY SOLENOID RESISTANCE
| Solenoid | Terminal No. | Ohms |
|---|---|---|
| SSA | 6 | 10.9-26.2 |
| SSB | 8 | 10.9-26.2 |
| SSC | 3 | 1.0-4.2 |
| SSD | 9 | 1.0-4.2 |
| SSE | 1 | 1.0-4.2 |
| PCA | 2 | 2.4-7.3 |
