Vehicles with anti-lock brakes

Remove and discard the wheel speed sensor ring.

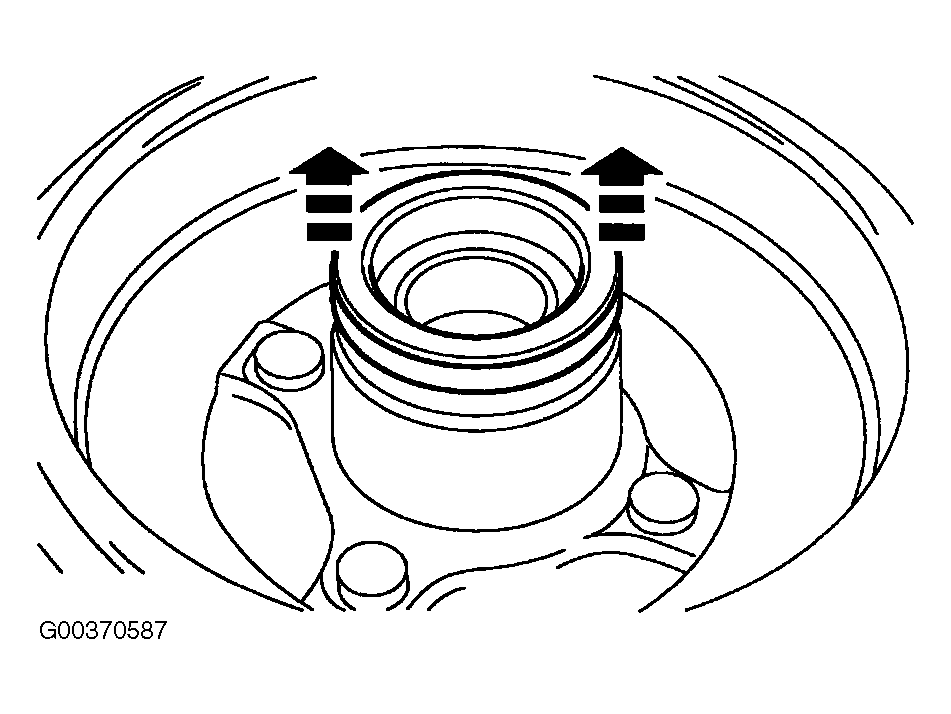

Fig 1: Removing Wheel Speed Sensor Ring (Drum Brake)

G00370587

Courtesy of FORD MOTOR CO.
