All vehicles

Remove the wheel hub. For additional information, refer to WHEEL HUB .

1. Remove the circlip.

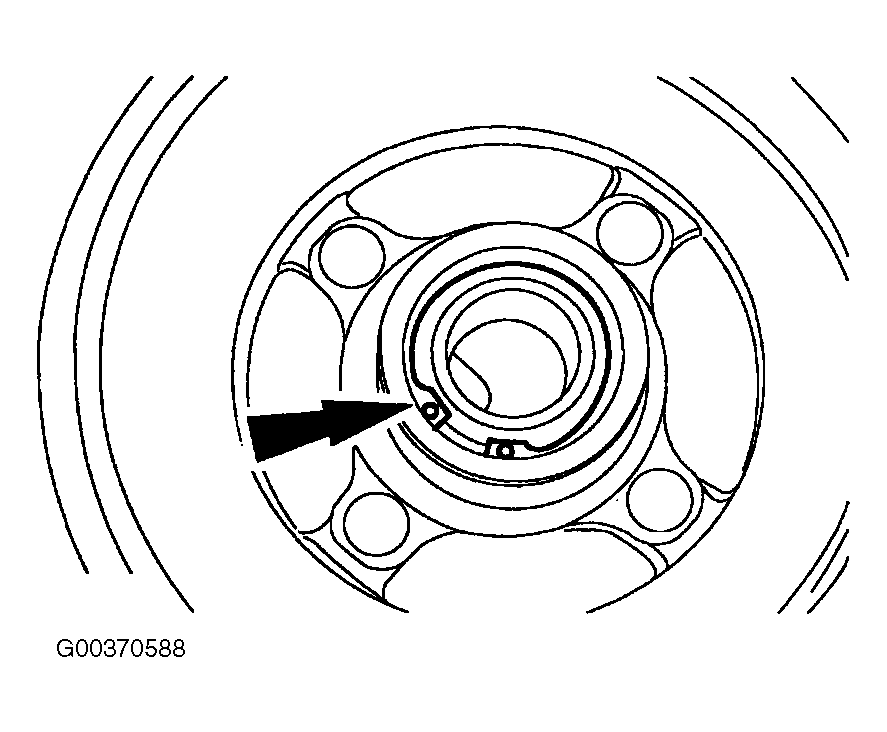

   Fig 1: Identifying Circlip (Drum Brake)

   Courtesy of FORD MOTOR CO.
2. Using the special tool, remove the wheel bearing.
   Fig 2: Removing Wheel Bearing (Drum Brake)

   Courtesy of FORD MOTOR CO.
