All vehicles

Remove the wheel hub. For additional information, refer to WHEEL HUB .

1. Using a suitable screwdriver, remove the water seal carrier (if equipped).
2. Remove the circlip.

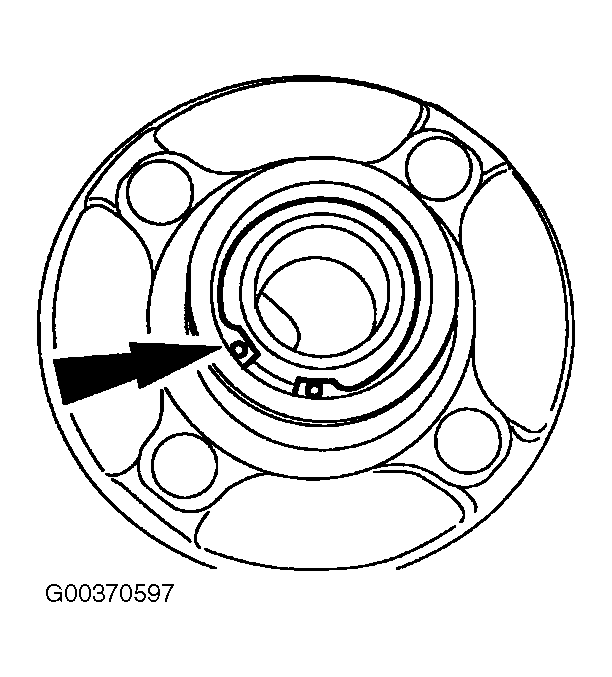

   Fig 1: Identifying Circlip (Disc Brake)

   Courtesy of FORD MOTOR CO.
3. Using the special tool, remove the wheel bearing.

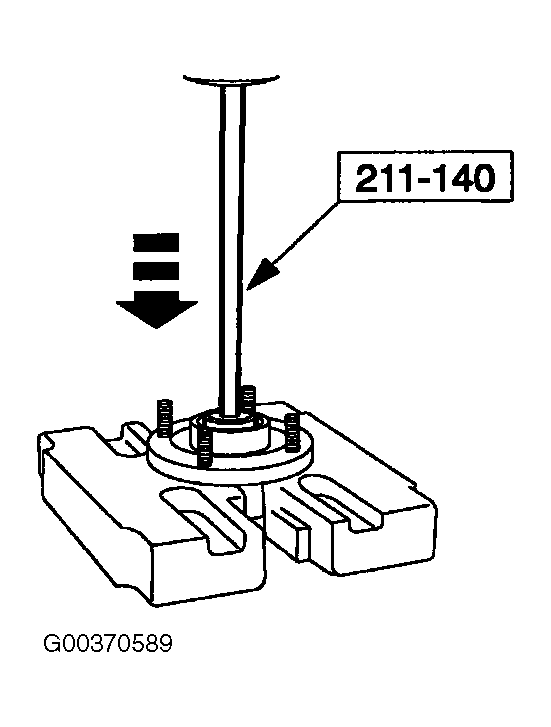

   Fig 2: Removing Wheel Bearing

   Courtesy of FORD MOTOR CO.
NOTE: A new wheel spindle is supplied with a water seal installed.

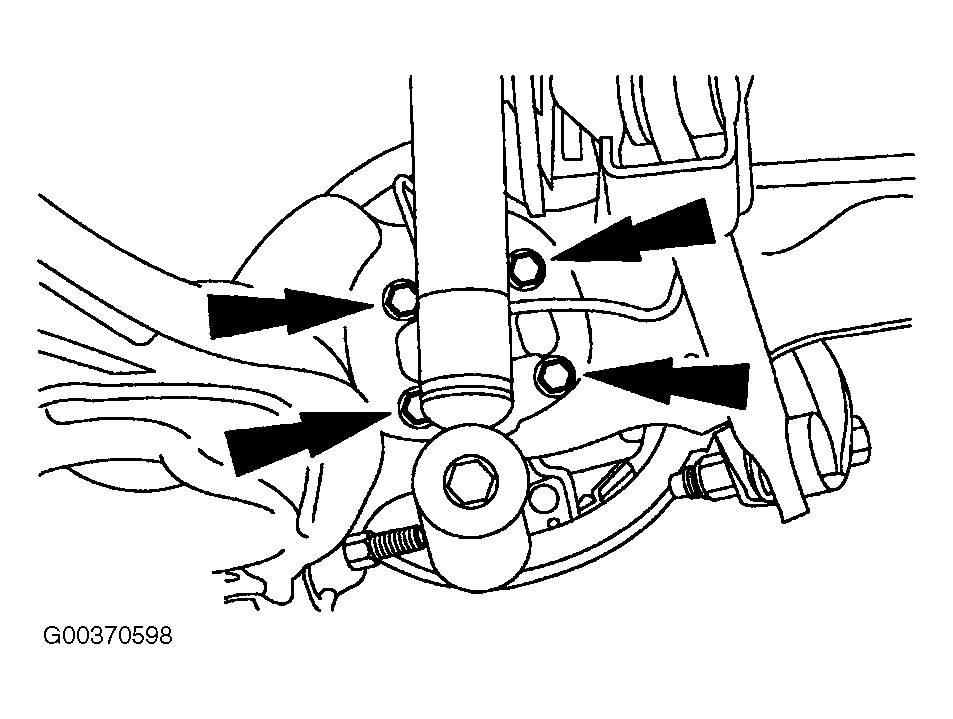

Fig 3: Identifying Wheel Spindle Bolts
Courtesy of FORD MOTOR CO.
4. Remove and discard the wheel spindle.
