Vehicles with anti-lock brakes

CAUTION: Avoid any impact on the wheel speed sensor ring.

CAUTION: Make sure the wheel speed sensor ring is clean.

CAUTION: Avoid any contact between the wheel speed sensor ring and a magnetic surface.

NOTE: Install a new wheel speed sensor ring.

Using the special tool, install the wheel speed sensor ring.

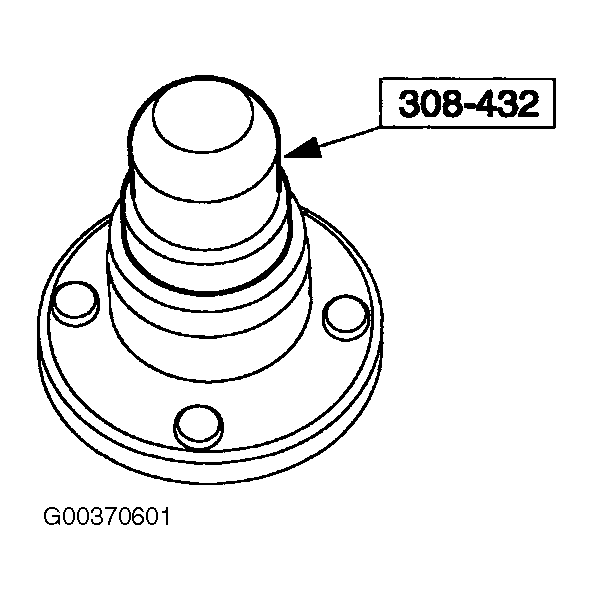

Fig 1: Installing Wheel Speed Sensor Ring (Disc Brake)

Courtesy of FORD MOTOR CO.
