Removal & Installation (Front Auxiliary A/C-Heater System)
WARNING: This page is about a different car, the 1999 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

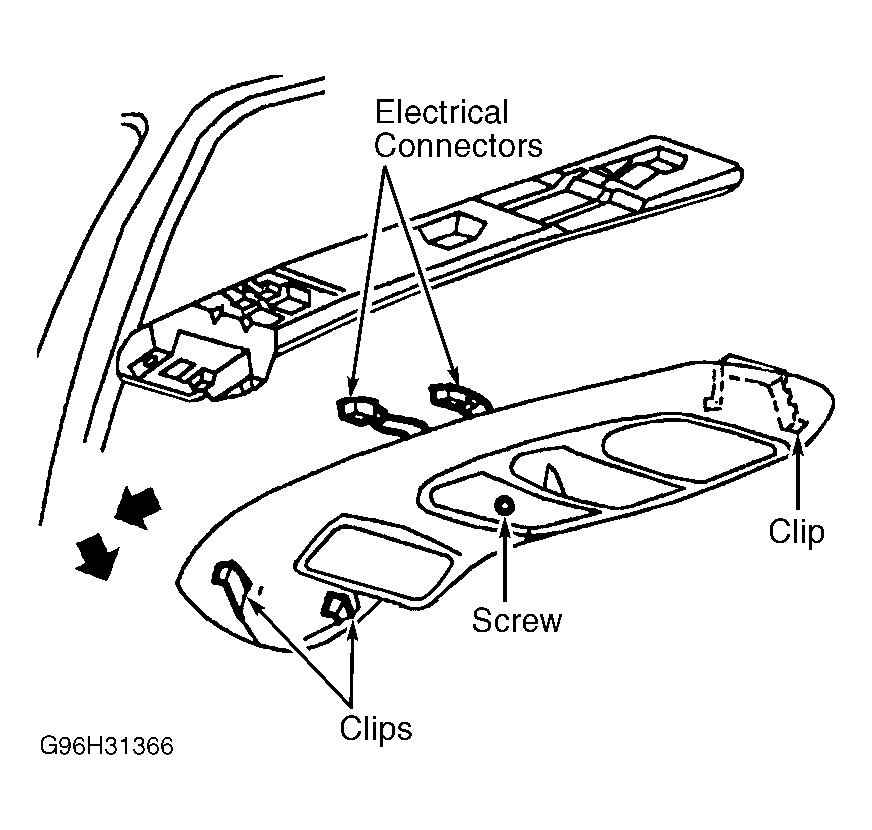

Remove screw in center of roof console. Carefully release 3 clips and slide roof console forward. See Fig 1. Disconnect electrical connectors. To install, reverse removal procedure.
