Removal (Front A/C-Heater System)

WARNING: This page is about a different car, the 1999 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Discharge A/C system, using approved refrigerant recovery/recycling equipment. Drain radiator. Remove instrument panel. See INSTRUMENT PANEL . Disconnect heater hoses at heater core.
  2. Disconnect refrigerant lines to condenser. Remove 2 A/C-heater housing assembly nuts from engine side. Disconnect vacuum hose from vacuum check valve. Remove 2 interior housing assembly nuts. See Fig 1. Remove A/C-heater assembly.

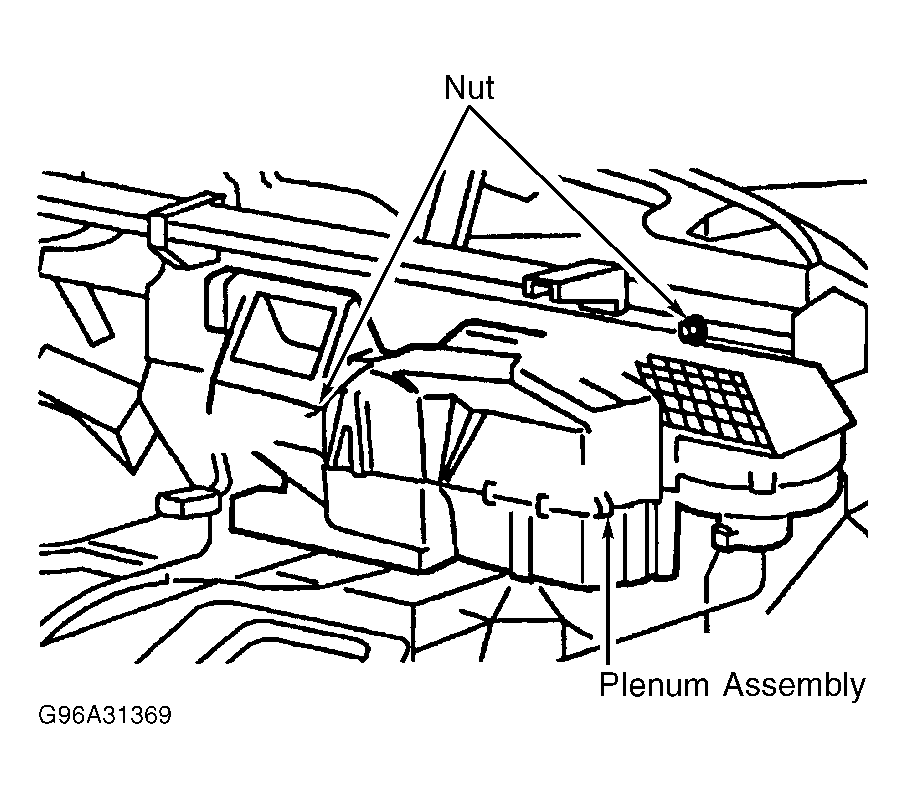

Fig 1: Removing Front A/C-Heater Assembly
G96A31369Courtesy of FORD MOTOR CO.
