Removal & Installation (Auxiliary A/C-Heater System)

WARNING: This page is about a different car, the 1999 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Discharge A/C system, using approved refrigerant recovery/recycling equipment. Drain radiator. Remove left quarter trim panel. Disconnect electrical connectors from plenum assembly. Disconnect heater core hoses.
  2. Remove evaporator case drain hose. Disconnect refrigerant lines from A/C evaporator expansion valve. Plug line openings. Remove push-pin and remove vertical A/C outlet duct. Remove 3 assembly retaining bolts. Remove auxiliary A/C-heater assembly. See Fig 1. To install, reverse removal procedure.

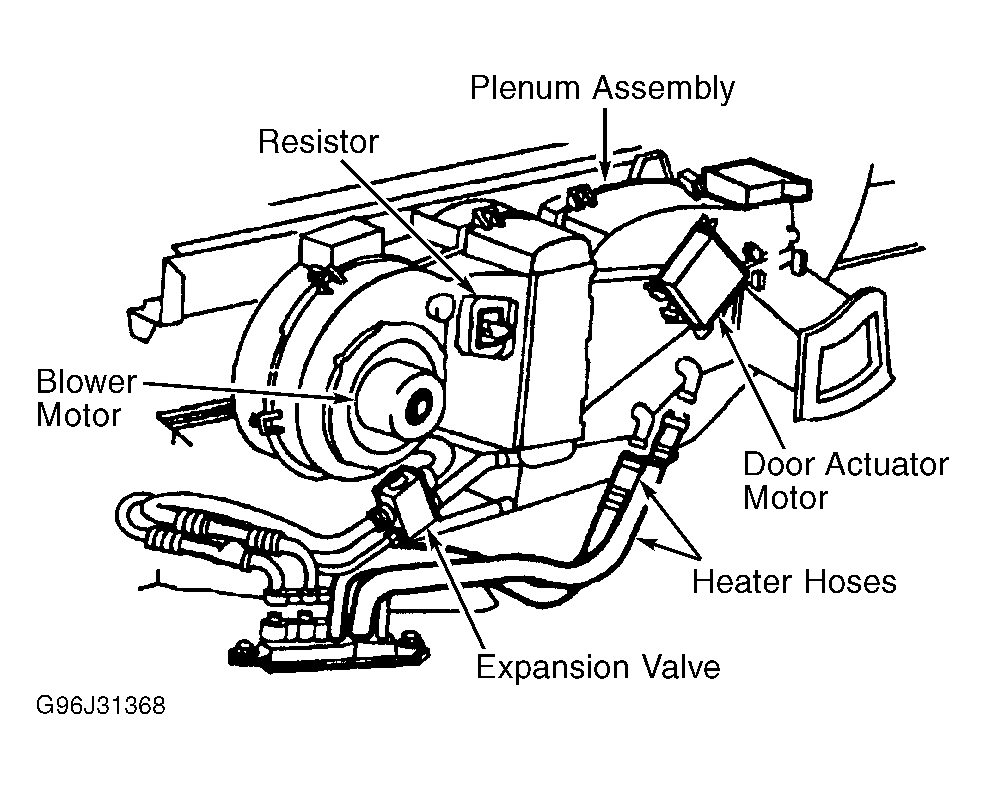

Fig 1: Identifying Auxiliary A/C-Heater System Assembly
G96J31368Courtesy of FORD MOTOR CO.
