A/C-Heater System
WARNING: This page is about a different car, the 1999 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Manual A/C-heater system heats and/or cools vehicle interior depending on function selector position and temperature selected. Function selector position determines heating or cooling and air distribution. Temperature blend control setting determines air temperature. Manual A/C-heater system components are used to select air inlet source, blower motor speed, discharge air temperature, discharge air location, and compressor clutch operation.

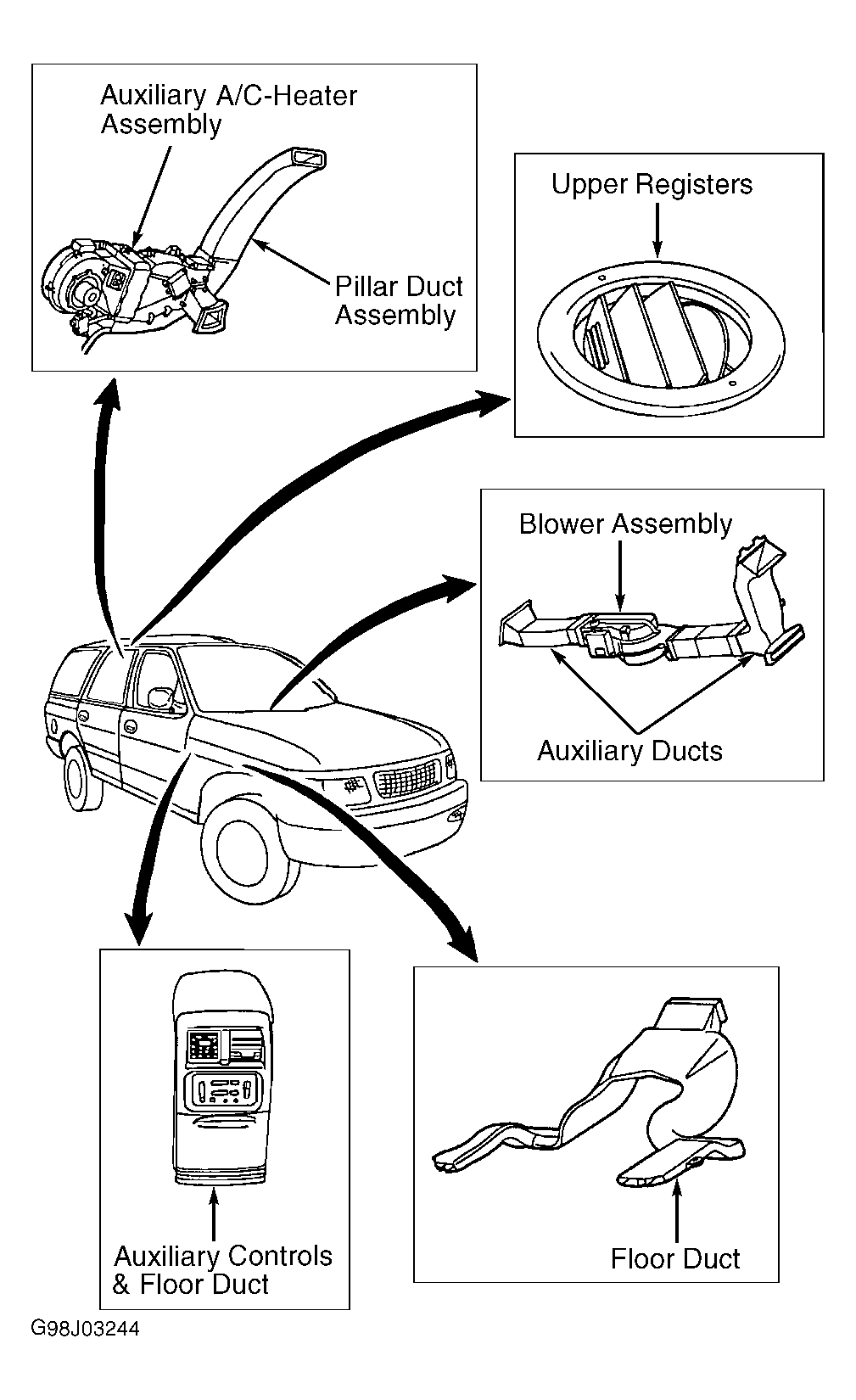

Auxiliary A/C-heater system has dual controls for driver and passenger consisting of temperature, blower speed, and mode. Driver controls are mounted in overhead console. Passenger controls are mounted in a separate console positioned on roof trim panel.
