Wheel Knuckle - F-450, F-550: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS

	Pitman Arm Puller 211-003 (T64P-3590-F) or Equivalent
	C-Frame and Screw 211-023 (T74P-3044-A1)

MATERIAL SPECIFICATION

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

NOTE: RH shown, LH similar.

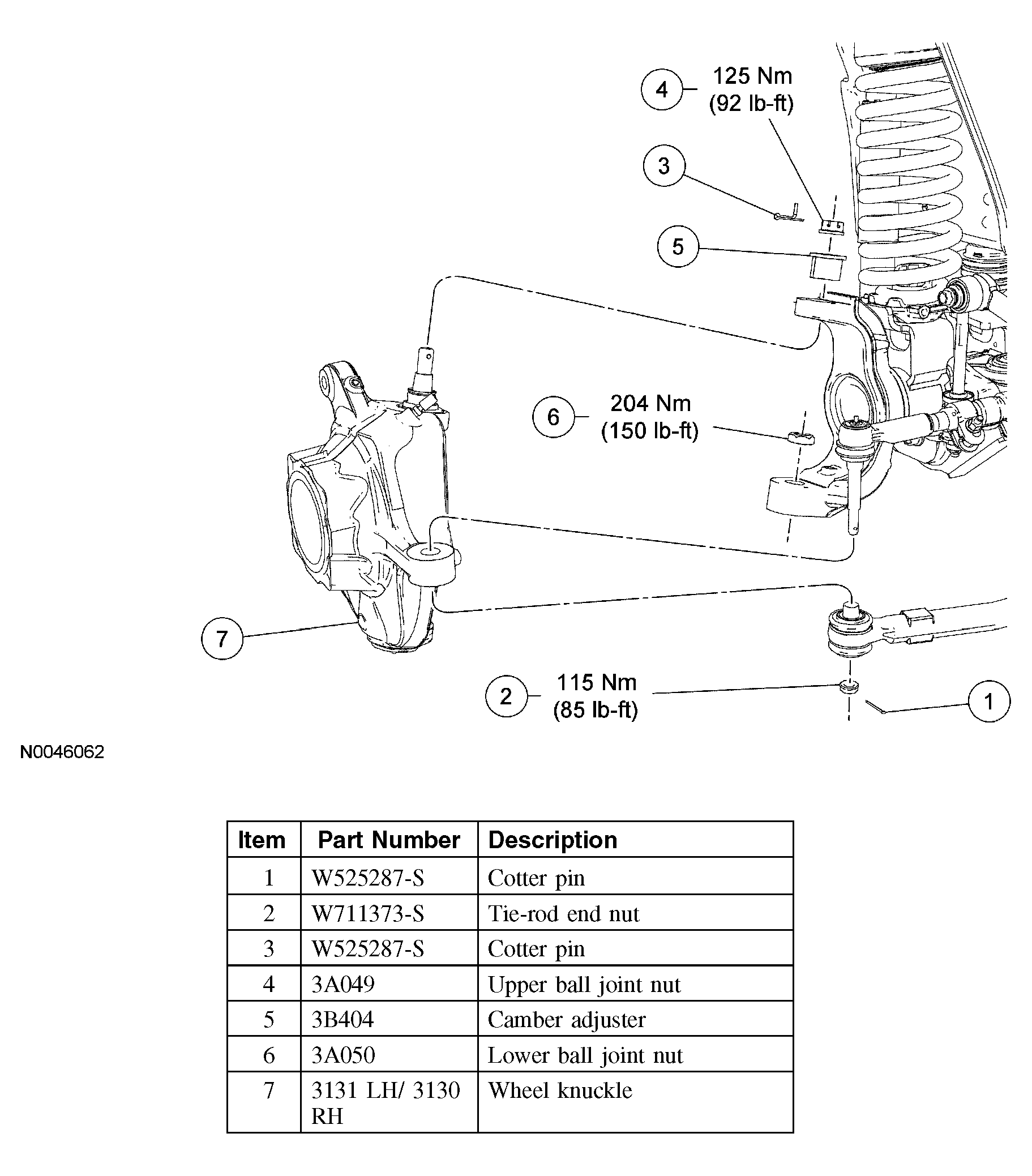

Fig 1: Exploded View Of Wheel Knuckle - RH Side

Courtesy of FORD MOTOR CO.
