Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts and bolts.
    • Detach the stabilizer links from the frame.
      Fig 1: Removing/Installing Stabilizer Links From Frame
      G03917747Courtesy of FORD MOTOR CO.
  2. Remove the upper nuts, bolts and the stabilizer bar links.

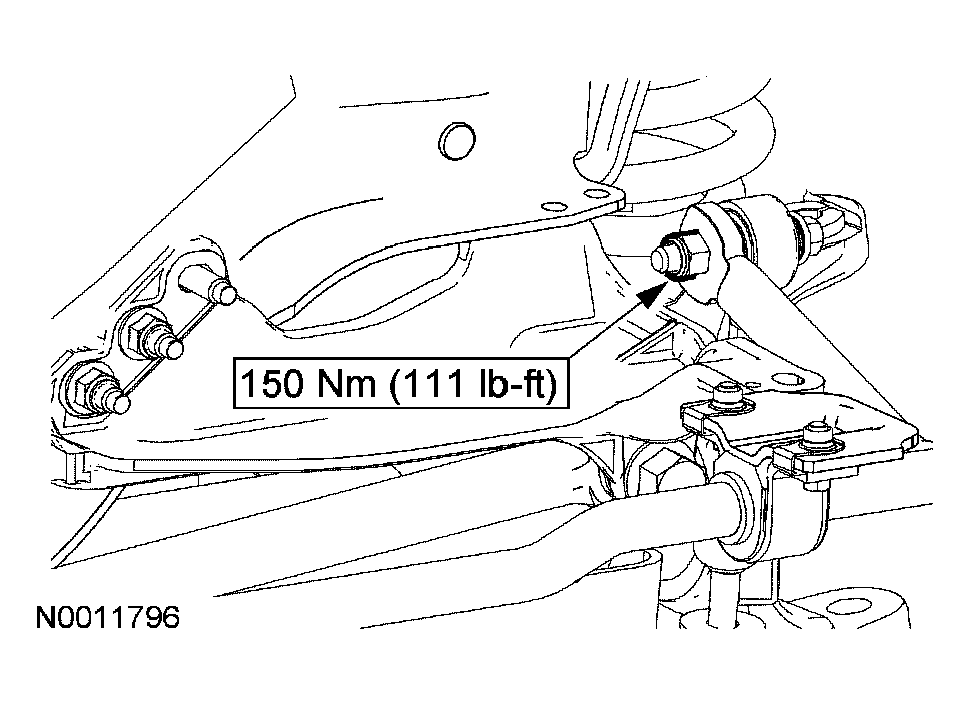

    Fig 2: Removing/Installing Upper Nuts, Bolts And Stabilizer Bar Links
    G03917748Courtesy of FORD MOTOR CO.
  3. Remove the bolts, brackets and the stabilizer bar.
    Fig 3: Removing/Installing Bolts, Brackets And Stabilizer Bar
    G03917749Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
