Shock Absorber - F-250, F-350: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using new fasteners, reverse the removal procedure.
    Fig 1: Installing Lower Shock Absorber Retaining Nut
    G03917781Courtesy of FORD MOTOR CO.

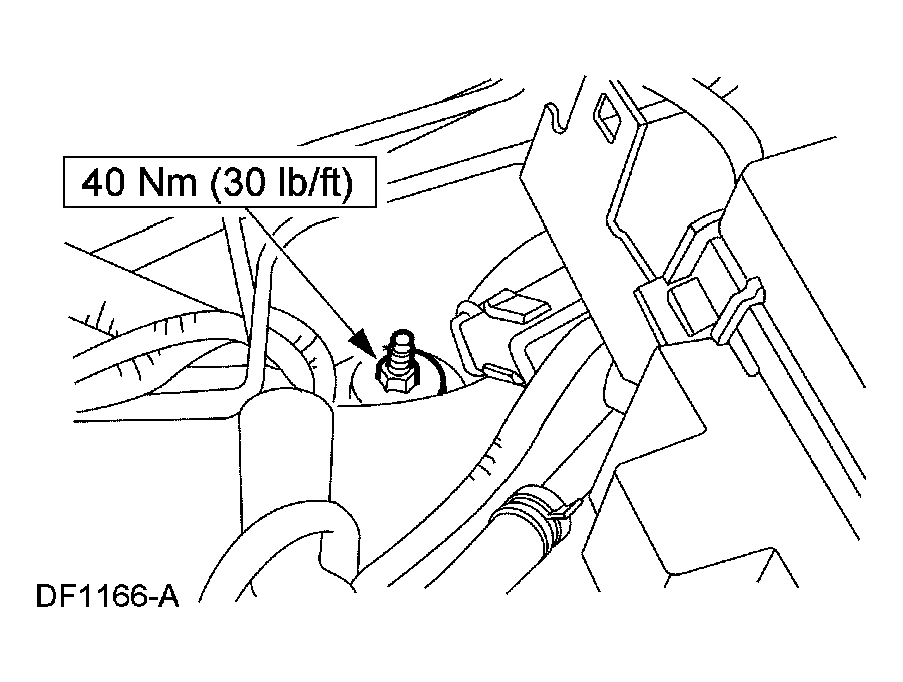

    Fig 2: Installing Upper Shock Absorber Retaining Nut And Upper Shock Absorber Insulator
    G03904098Courtesy of FORD MOTOR CO.
