Radius Arm Bushing - F-450, F-550: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the radius arm. For additional information, refer to RADIUS ARM - F-450, F-550 .
  3. Remove the shock absorber upper nut, then detach the shock absorber.
  4. Using the special tools, remove the bushing.

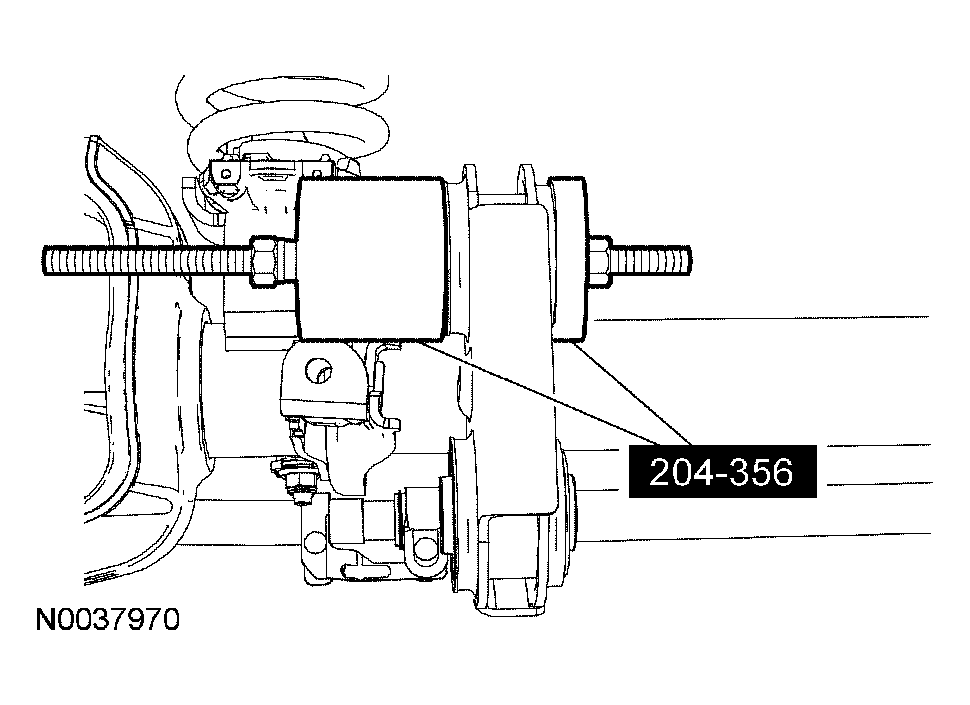

    Fig 1: Removing Bushing
    G03917732Courtesy of FORD MOTOR CO.
