Radius Arm Bushing - F-450, F-550: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, install the bushing.

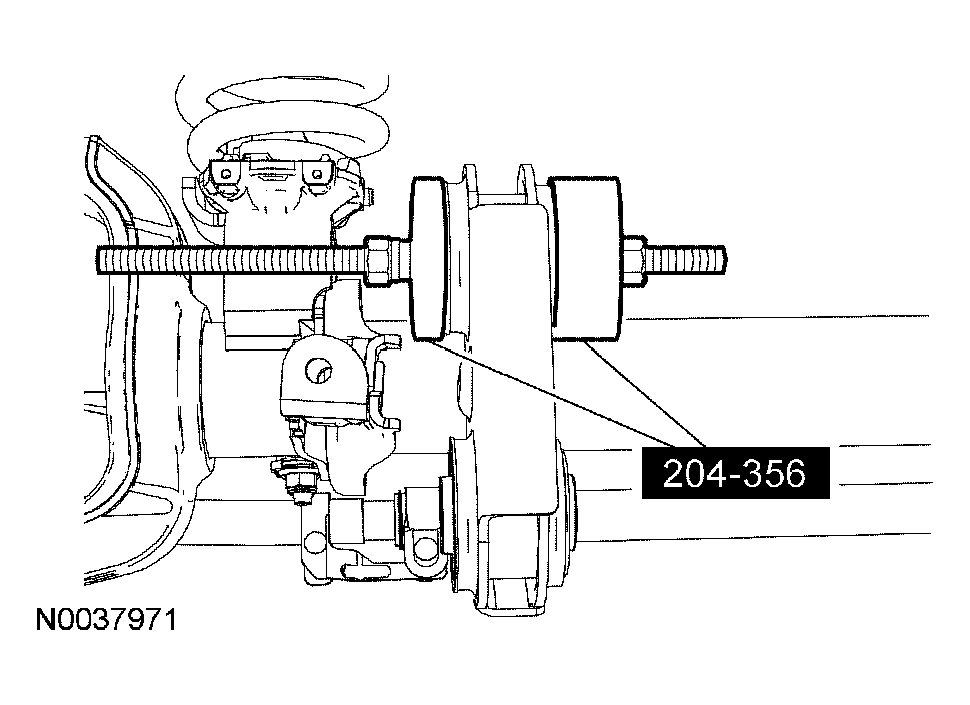

    Fig 1: Installing Bushing
    G03917733Courtesy of FORD MOTOR CO.
    2. NOTE: Tighten the shock absorber bolt when the suspension is at curb height.
    Fig 2: Removing/Installing Shock Absorber
    G03917734Courtesy of FORD MOTOR CO.
  2. Position the shock absorber and install the upper nut.
  3. Install the radius arm. For additional information, refer to RADIUS ARM - F-450, F-550 .
