Front Suspension

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

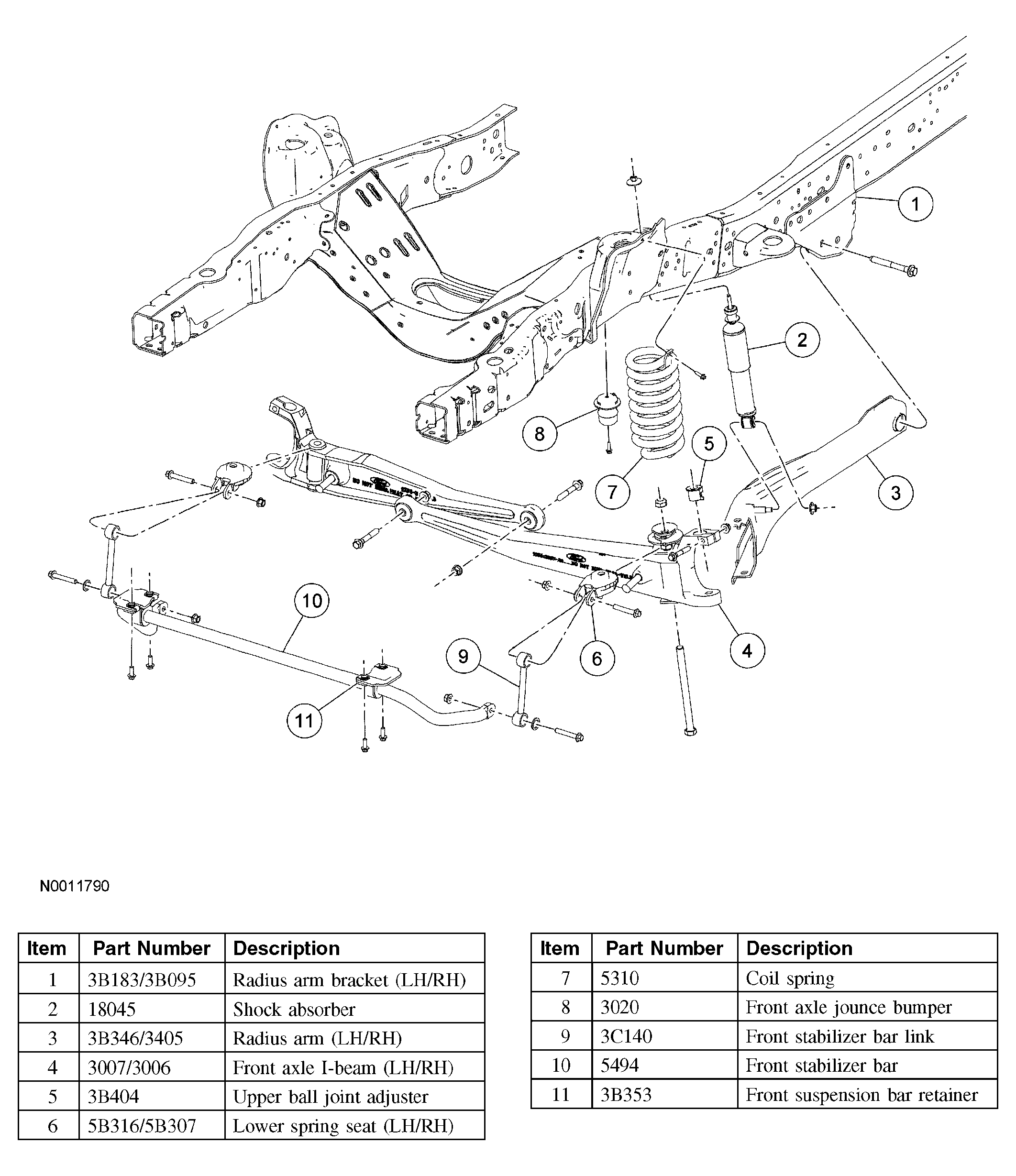

Fig 1: Identifying Front Suspension Components - - F-250, F-350
G03917680Courtesy of FORD MOTOR CO.

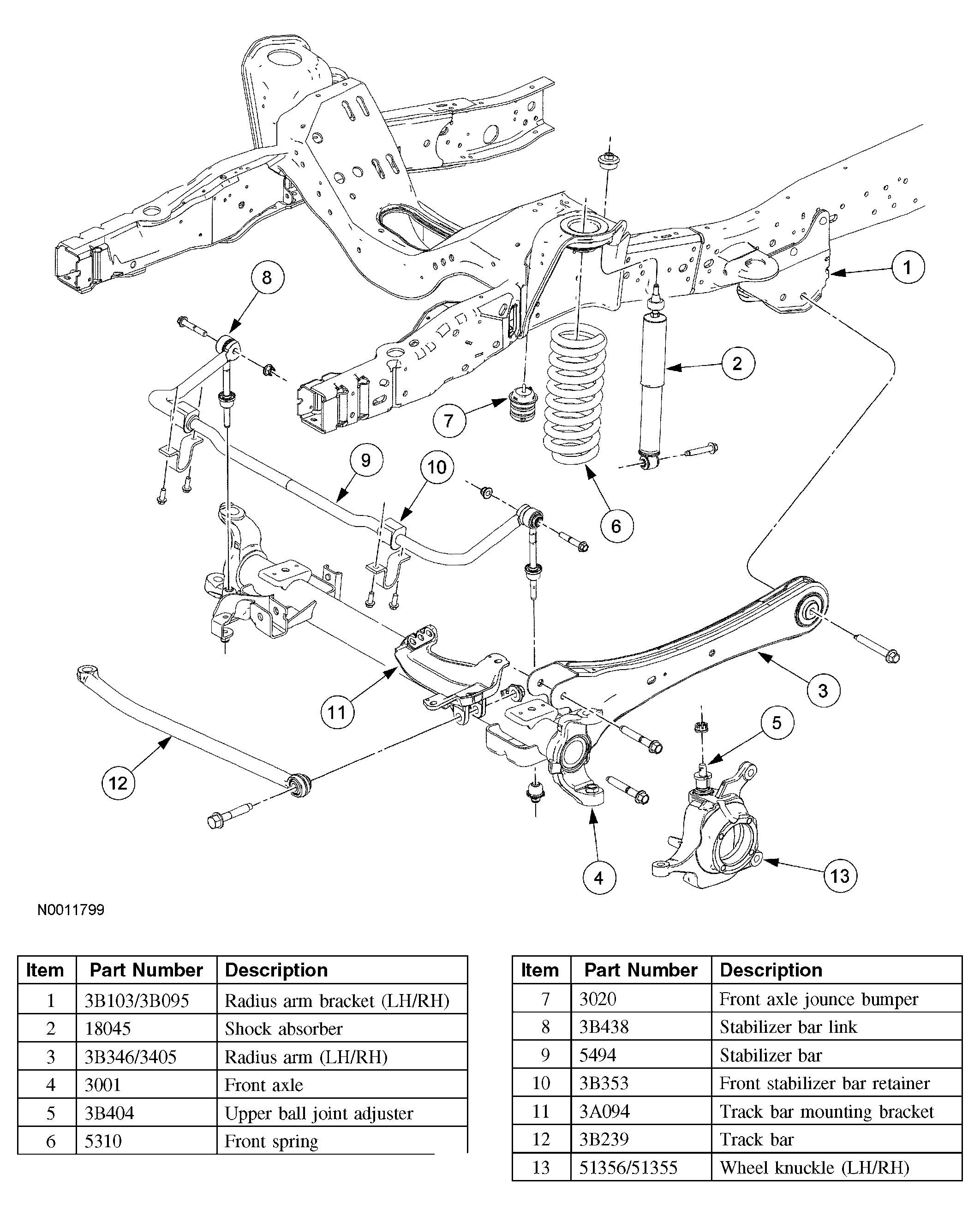

Fig 2: Identifying Front Suspension Components - F-450, F-550
G03917681Courtesy of FORD MOTOR CO.
