Rear Drive Axle and Differential
WARNING: This page is about a different car, the 2006 Ford F550 Super Duty and 2006 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

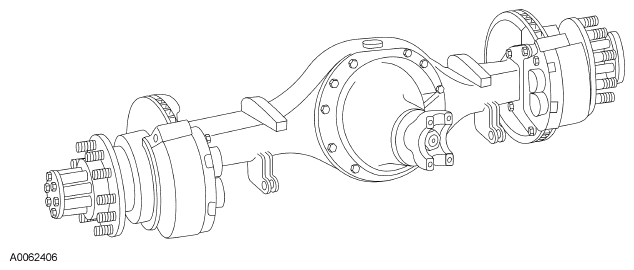

Dana Model S110 and S130 Full-Floating Rear Drive Axle

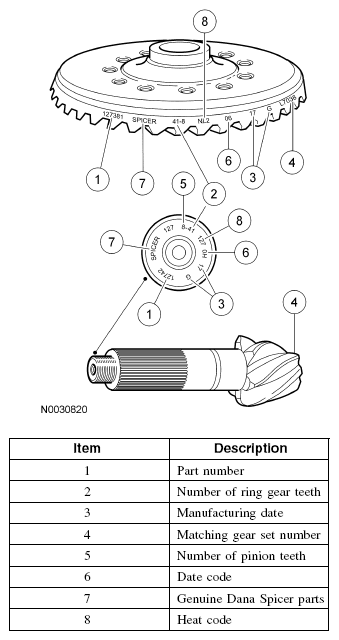

Gear Set Identification
- The trademark shows the company logo and identifies the location of the manufacturing facility.
- A corresponding number marked on the differential ring gear and pinion identifies them as a matched set.
- The number of teeth on the pinion and the number of teeth on the differential ring gear result in gear ratio. A tooth combination of 41-11, for example, would indicate that the pinion has 11 teeth and the ring gear has 41 teeth that results in a 3.73:1 ratio.

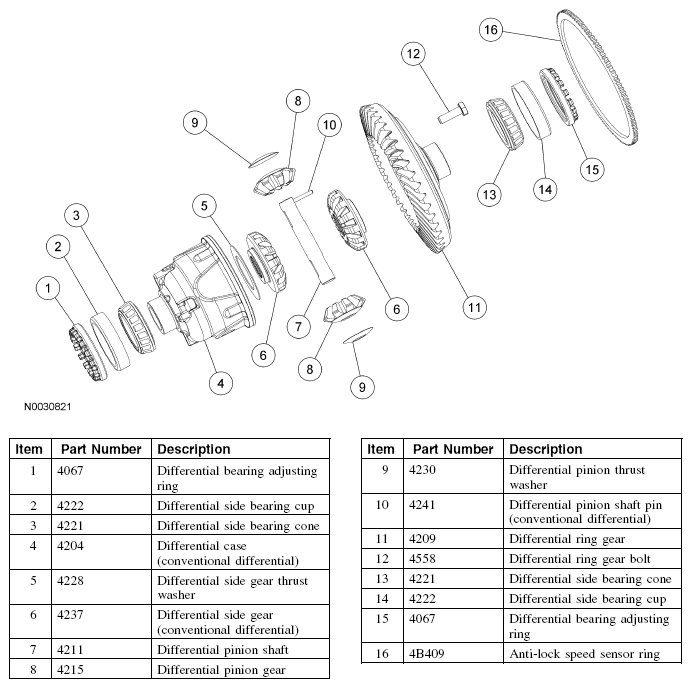

Dana Model S110 Conventional Wheel Differential Assembly, Disassembled View
Courtesy of FORD MOTOR CO.

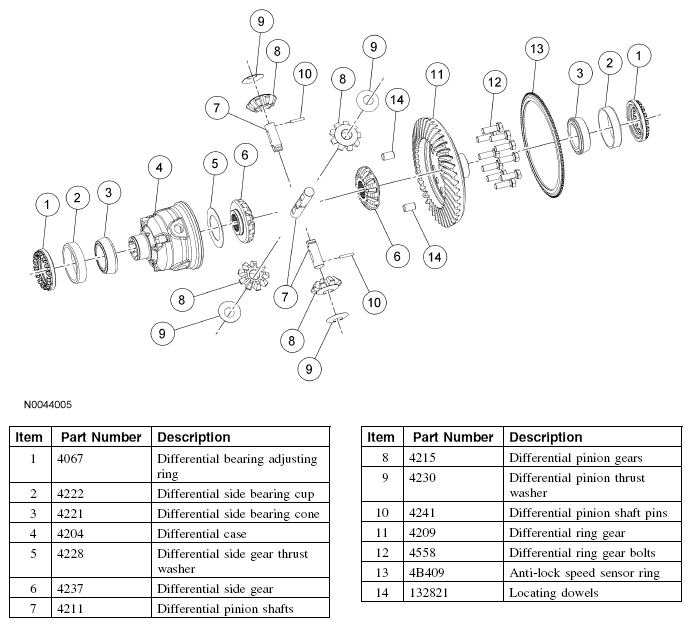

Dana Model S130 Conventional Wheel Differential Assembly, Disassembled View
Courtesy of FORD MOTOR CO.

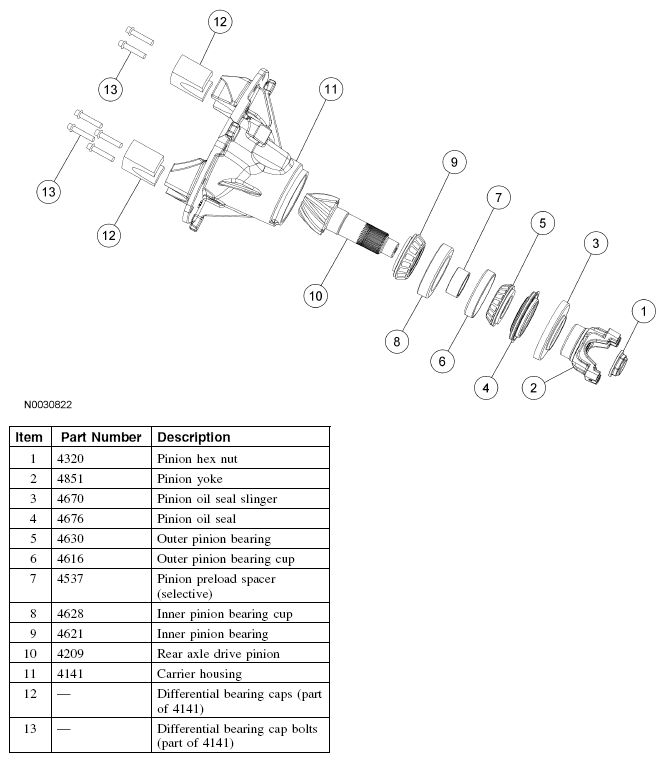

Dana S110 and S130 Rear Axle Pinion Assembly, Disassembled View
NOTE: Unless noted, the procedures in this section apply to both the conventional differential and the Truetrac® differential, though most of the illustrations used in the procedures show the conventional differential.The Model S110 and S130 rear axles features the following:
- a hypoid design differential ring gear and pinion
- a 2-bearing overhung pinion mounting
- full-floating axle shafts
- a steel differential housing
- a front mounted removable 1-piece carrier housing
- a conventional differential assembly or a Truetrac® limited slip differential assembly
CAUTION:
Never mate a differential ring gear and pinion together that do not have the same matched set numbers. Always install a new matched set if discarding either the differential ring gear or the pinion.
