Removal & Installation (Control)

  1. Remove the LH cowl side trim panel.
    2. NOTE: Verify that the parking brake control (2780) is fully released.
  2. Relieve the tension on the parking brake system.
    1. Pull down on the parking brake intermediate cable (2A793).
    2. Insert a 4 mm (5/32-inch) drill bit or equivalent retainer in the parking brake control.

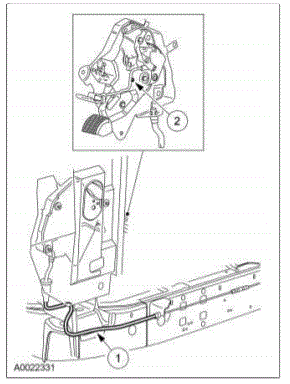

    G00593890Courtesy of FORD MOTOR CO.
  3. Raise and support the vehicle.
  4. Disconnect the front parking brake cable and conduit (2853) at the locating hole end of the connector.
    G00593891Courtesy of FORD MOTOR CO.
  5. Remove the front parking brake cable and conduit from the bracket.
    1. Compress the retainer from the front parking brake cable and conduit from the bracket.
    2. Remove the front parking brake cable and conduit from the bracket.
    G00593892Courtesy of FORD MOTOR CO.
  6. Lower the vehicle.
  7. Remove the screws and the instrument panel steering column cover.
    G00593893Courtesy of FORD MOTOR CO.
  8. Remove the parking brake release mounting bolts.
    G00593894Courtesy of FORD MOTOR CO.
  9. Loosen the bolt and disconnect the instrument panel-to-body harness electrical connector.
    G00593895Courtesy of FORD MOTOR CO.
  10. Remove the parking brake control and front parking brake cable and conduit.
    1. Disconnect the parking brake signal switch electrical connector.
    2. Remove the three parking brake control bolts.
    G00593896Courtesy of FORD MOTOR CO.
  11. Remove the screw and position the bracket and wiring connector aside.
    G00593897Courtesy of FORD MOTOR CO.
  12. Remove the parking brake anchor pin from the parking brake control (2780).
    G00593898Courtesy of FORD MOTOR CO.
  13. Bend the takeup spool tab up.
    G00593899Courtesy of FORD MOTOR CO.
  14. Remove the front parking brake cable and conduit housing.
    1. Compress the front parking brake cable and conduit-to-parking brake control clip.
    2. Remove the front parking brake cable and conduit housing.
    G00593900Courtesy of FORD MOTOR CO.
  15. To install, reverse removal procedures.
