Installation (Rear Cable & Conduit)

  1. Clip the parking brake rear cable and conduit to the parking brake lever.
    G00596332Courtesy of FORD MOTOR CO.
  2. Connect the parking brake rear cable and conduit to the rear disc brake caliper anchor plate.
    G00596331Courtesy of FORD MOTOR CO.
  3. Clip the parking brake rear cable and conduit to the brake line clip on top of the rear axle housing.
    G00593909Courtesy of FORD MOTOR CO.
  4. Install the parking brake cable retainer clip.
    1. Position the parking brake cable retainer clip.
    2. Install the parking brake cable retainer clip bolt.

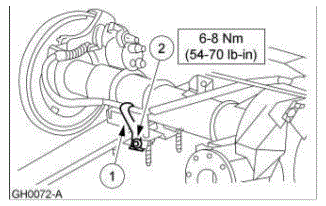

    G00596333Courtesy of FORD MOTOR CO.
  5. Install the RH parking brake rear cable and conduit to the RH hydraulic brake line clip.
    G00593908Courtesy of FORD MOTOR CO.
  6. Hook the RH parking brake rear cable and conduit to the rear parking brake cable retainer.

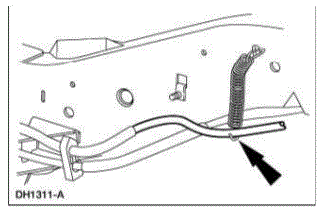

    G00596334Courtesy of FORD MOTOR CO.
  7. Install the RH parking brake rear cable and conduit to the LH parking brake rear cable and conduit clip.
    G00593906Courtesy of FORD MOTOR CO.
  8. Connect the RH parking brake rear cable and conduit to the parking brake cable bracket.
    1. Install the RH parking brake rear cable and conduit to the parking brake cable bracket.
    2. Push the RH parking brake rear cable and conduit into the parking brake cable bracket until the parking brake cable and conduit clip is seated.
    G00593905Courtesy of FORD MOTOR CO.
  9. Connect the RH parking brake rear cable and conduit to the LH parking brake rear cable and conduit at the parking brake cable equalizer.
    G00593904Courtesy of FORD MOTOR CO.
  10. Connect the parking brake intermediate cable to the LH parking brake rear cable and conduit.
    G00593903Courtesy of FORD MOTOR CO.
    11. NOTE: If equipped with air suspension, reactivate the system by turning on the air suspension switch.
  11. Install the front wheel and tire assemblies.
  12. Apply tension to the parking brake system.
    1. Pull down on the front parking brake cable and conduit.
    2. Remove the retainer.

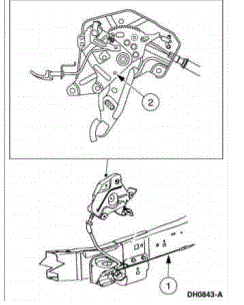

    G00593902Courtesy of FORD MOTOR CO.
