Removal (Windstar)

  1. Remove brake drum. Disconnect right parking brake rear cable and conduit or left parking brake rear cable and conduit from parking brake lever. Remove 2 brake shoe hold-down springs and brake shoe hold-down pins.
  2. Remove brake shoe adjusting screw spring. Remove brake shoe adjusting lever and brake adjuster screw. Remove brake shoe retracting spring. Remove rear brake shoes and linings from brake backing plate. Remove and discard parking brake lever clip and washer. Remove parking brake lever from secondary rear brake shoe and lining. See Fig 1.

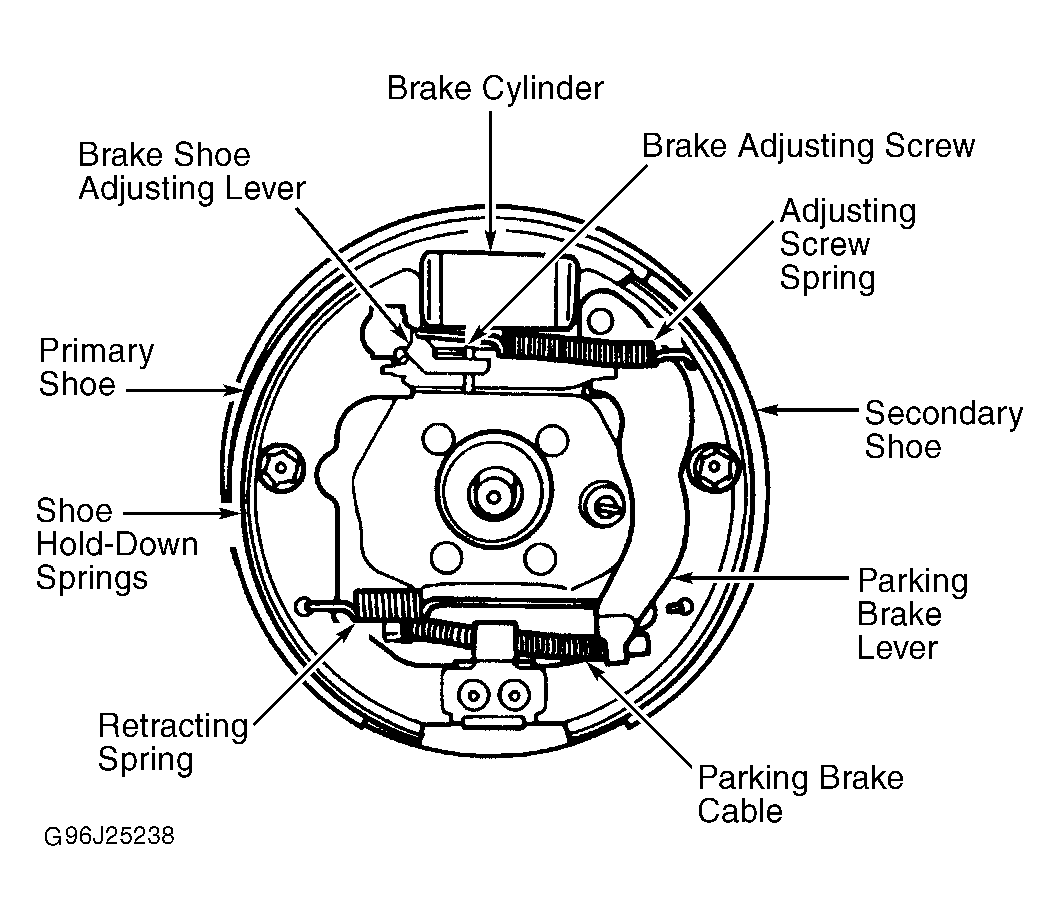

Fig 1: Examining Brake Assemblies (Windstar)
G96J25238Courtesy of FORD MOTOR CO.
