Shock Absorber: Removal

Raise and support vehicle.
Use a suitable jack, support rear axle
Remove the shock absorber lower retaining nut and bolt. See Fig 1 and Figure .

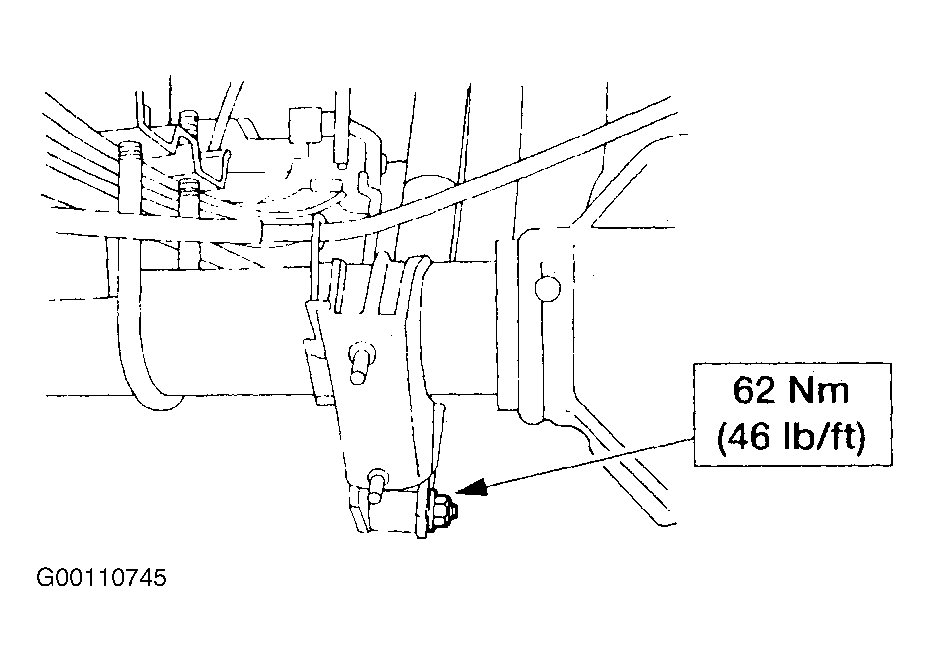

Fig 1: View of Lower Retaining Nut & Bolt (All Models Except Motorhome)
Courtesy of FORD MOTOR CO.
On F-Super Duty and Motorhome models, remove the nut from the upper shock absorber mounting bracket and remove the shock. On the Excursion model, remove the two shock absorber upper mounting bolts. See Fig 2 through Figure .

Fig 2: View Of Upper Shock Absorber Mounting Bracket(F-Super Duty)
Courtesy of FORD MOTOR CO.

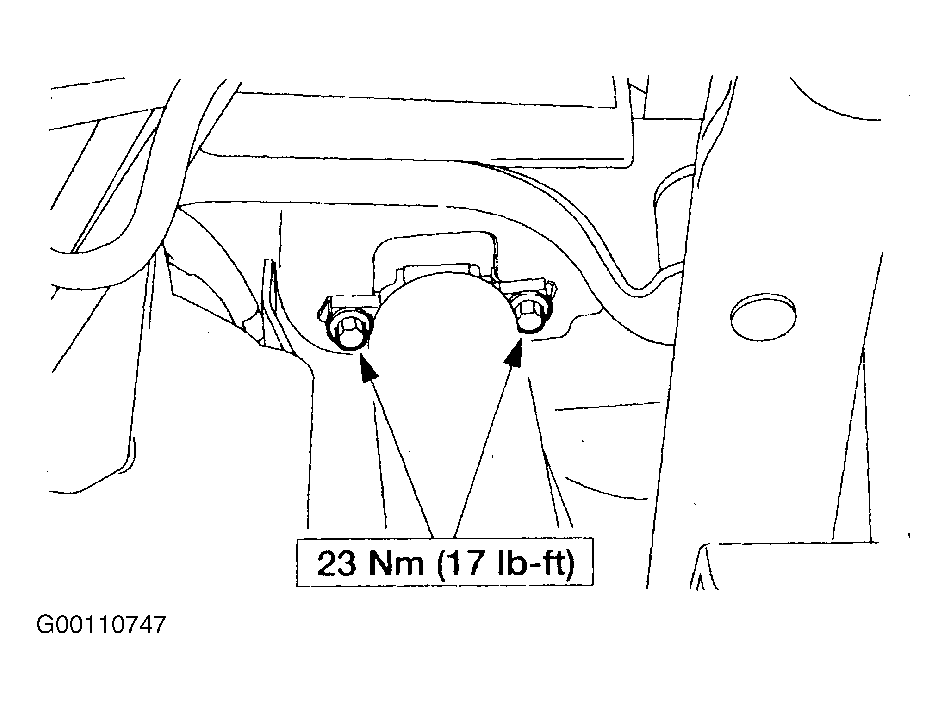

Fig 3: Removing Two Shock Absorber Upper Mount Bolts (Excursion)
Courtesy of FORD MOTOR CO.
