Shock Absorber: Installation

To install, reverse the removal procedure. Manufacturer recommends using new fasteners on installation. Torque to specification. See TORQUE SPECIFICATIONS  .

Fig 1: Removing Shock Absorber Lower Retaining Nut & Bolt (Motorhome)
G00110748Courtesy of FORD MOTOR CO.

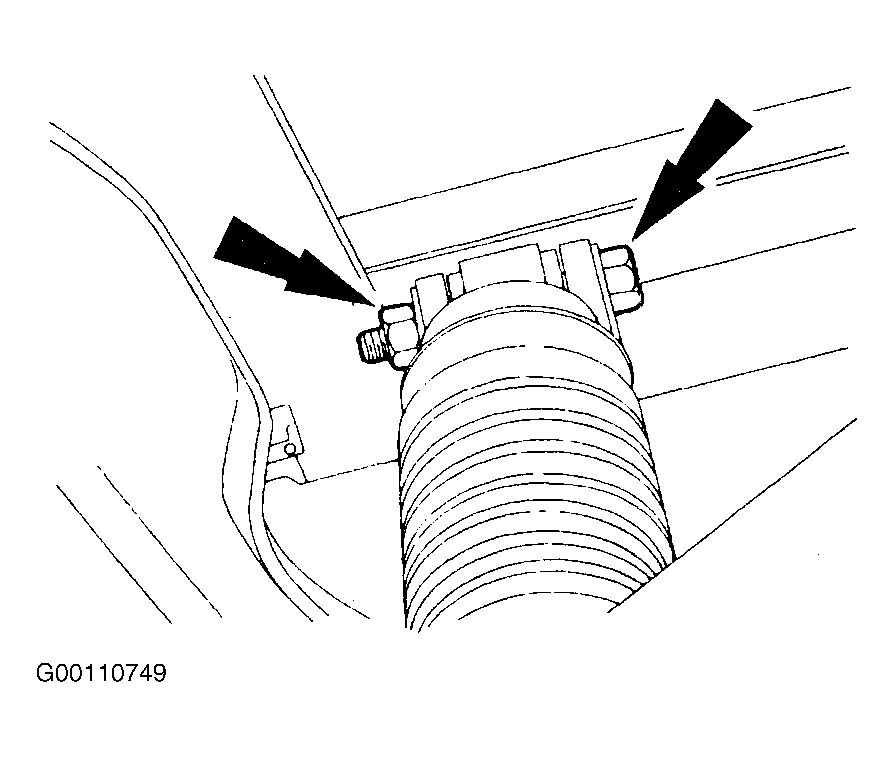

Fig 2: Removing Upper Shock Absorber Mounting (Motorhome)
G00110749Courtesy of FORD MOTOR CO.
