Removal & Installation (F250/F350 & 4X2)

Position and lock the wheels in the straight-forward position. Raise and support the vehicle.
Loosen the adjusting sleeve clamp. See Fig 1.

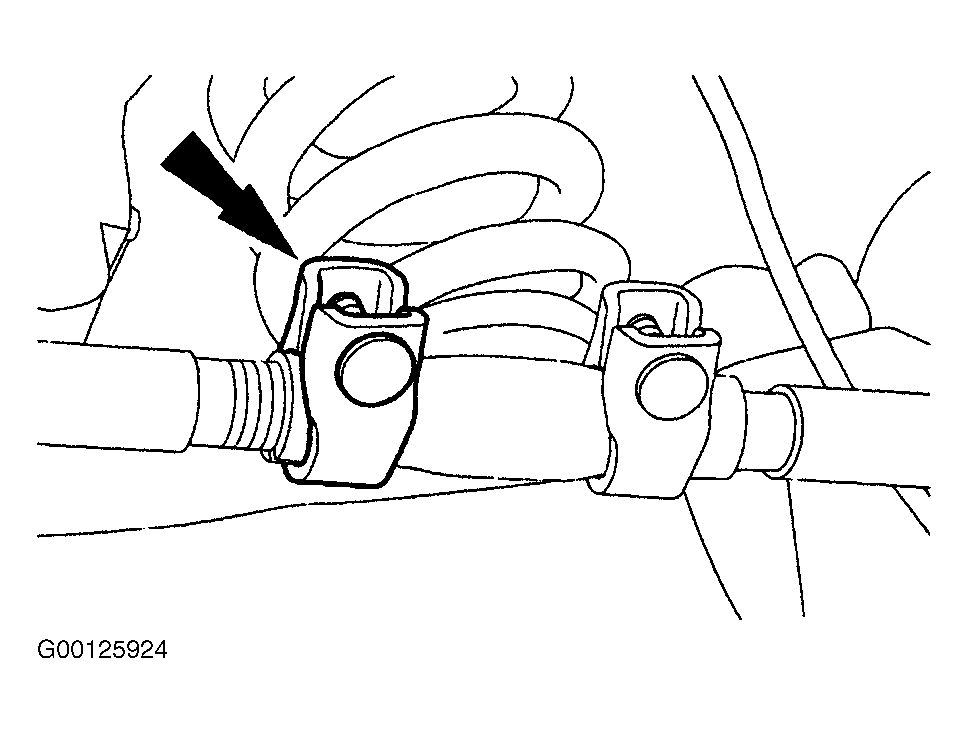

Fig 1: Loosening Adjusting Sleeve Clamp
Courtesy of FORD MOTOR CO.
Remove the cotter pin and castellated nut. See Fig 2. Discard the cotter pin.

Fig 2: Removing Castle Nut
Courtesy of FORD MOTOR CO.
Disconnect the tie rod end. Use the Steering Arm Remover (211-003). See Fig 3.

Fig 3: Removing Tie Rod End
Courtesy of FORD MOTOR CO.
Remove the tie rod end. Note the number of turns required to remove the tie rod end.
To install, reverse removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS . Check the toe-in and clear vision settings. See SPECIFICATIONS & PROCEDURES -- TRUCKS article in WHEEL ALIGNMENT.
