Removal & Installation

  1. Disconnect the vacuum line connector from the hublock vacuum reservoir.

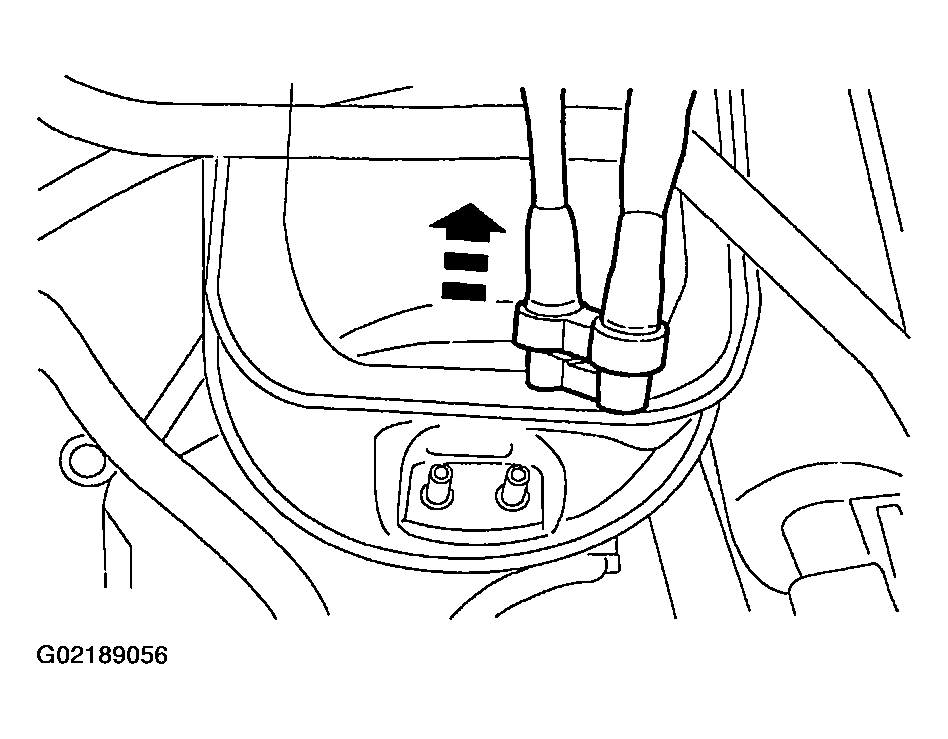

    Fig 1: Disconnecting Vacuum Line Connector From Hublock Vacuum Reservoir
    G02189056
  2. Working through the RH front wheel opening, remove the retaining nuts.
    Fig 2: Removing Hublock Vacuum Reservoir Retaining Nuts
    G02189057
  3. Remove the hublock vacuum reservoir.
  4. To install, reverse the removal procedure.
