Driveline Angle Specifications

NOTE: Driveline angle information not available for Escape.

Fig 1: Determining Coupling Shaft Angle (Econoline)

Courtesy of FORD MOTOR CO.

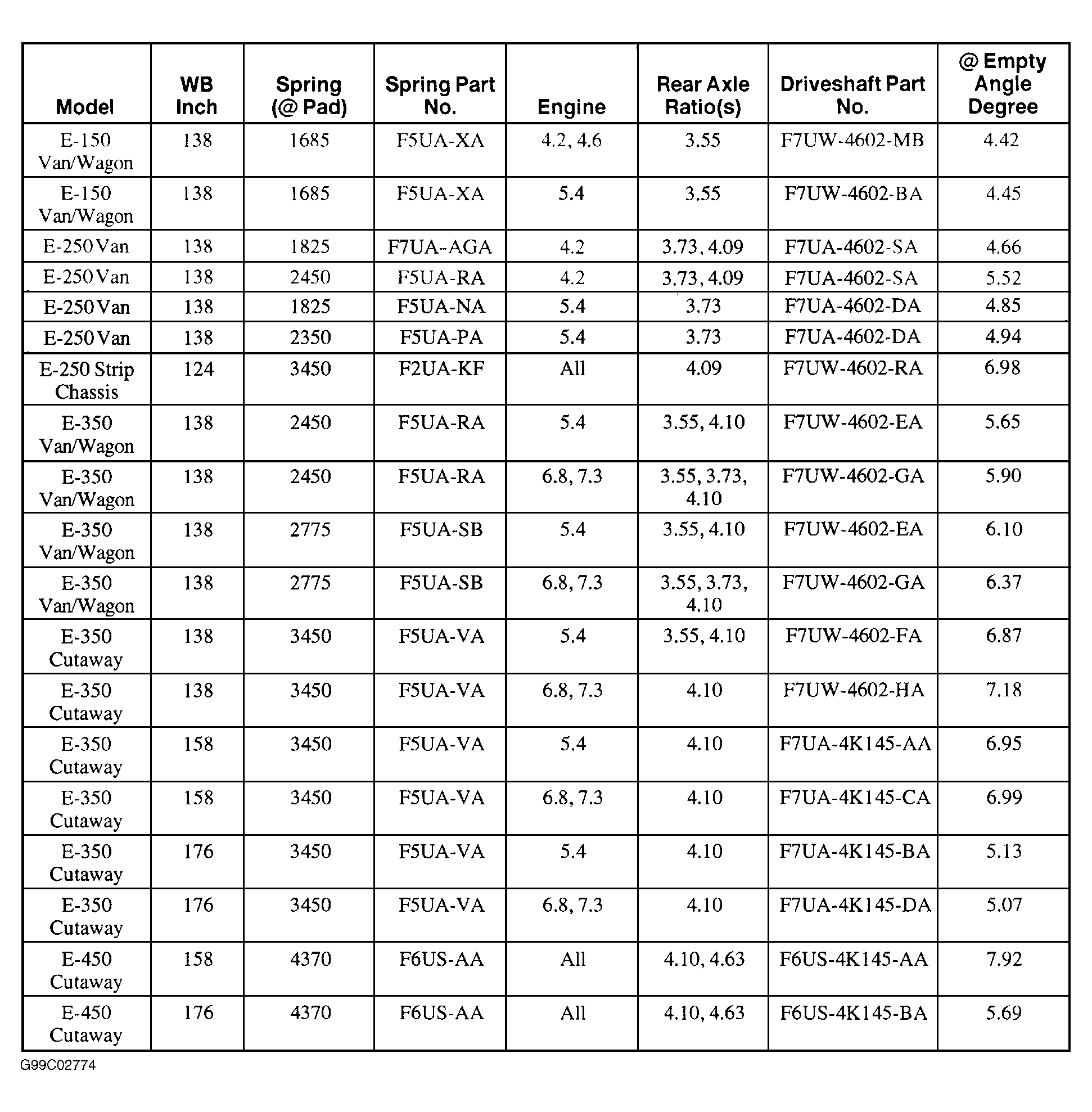

Fig 2: Determining Drive Shaft Angle (Econoline)

Courtesy of FORD MOTOR CO.

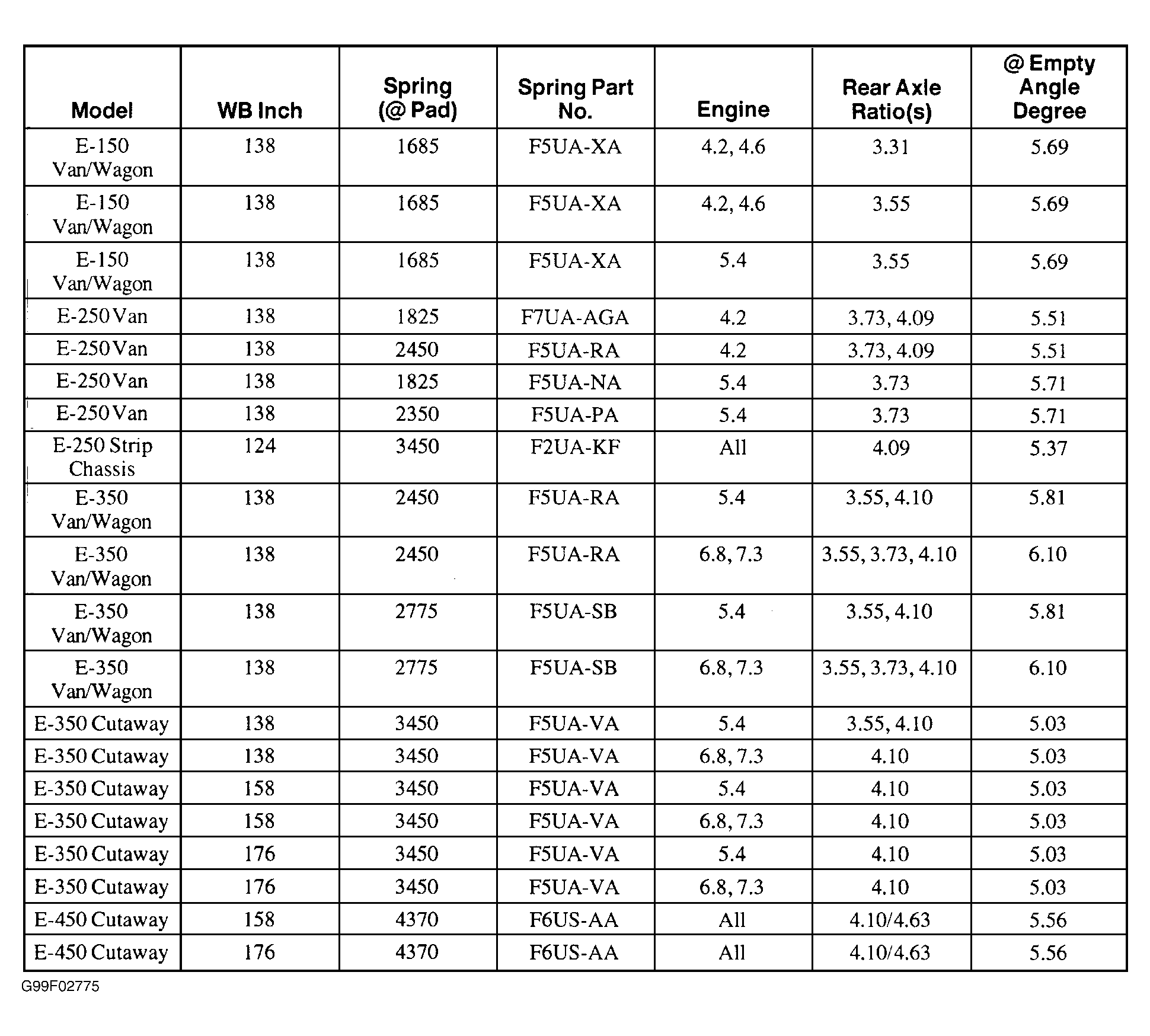

Fig 3: Determining Rear Axle Pinion Angle (Econoline)

Courtesy of FORD MOTOR CO.

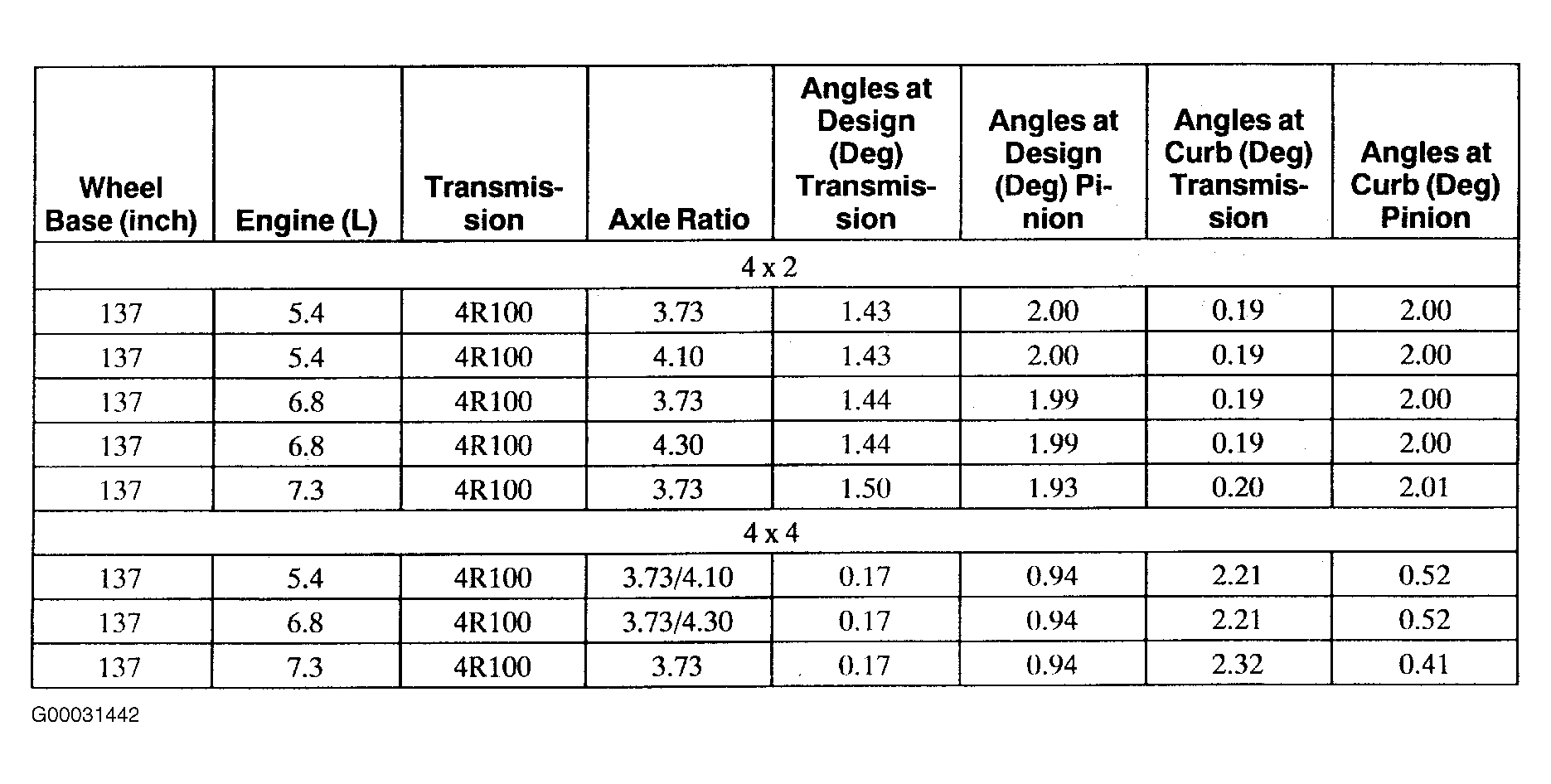

Fig 4: Determining Driveline Angles (Excursion & F250-F550 Super Duty Pickups & Motorhome)

Courtesy of FORD MOTOR CO.

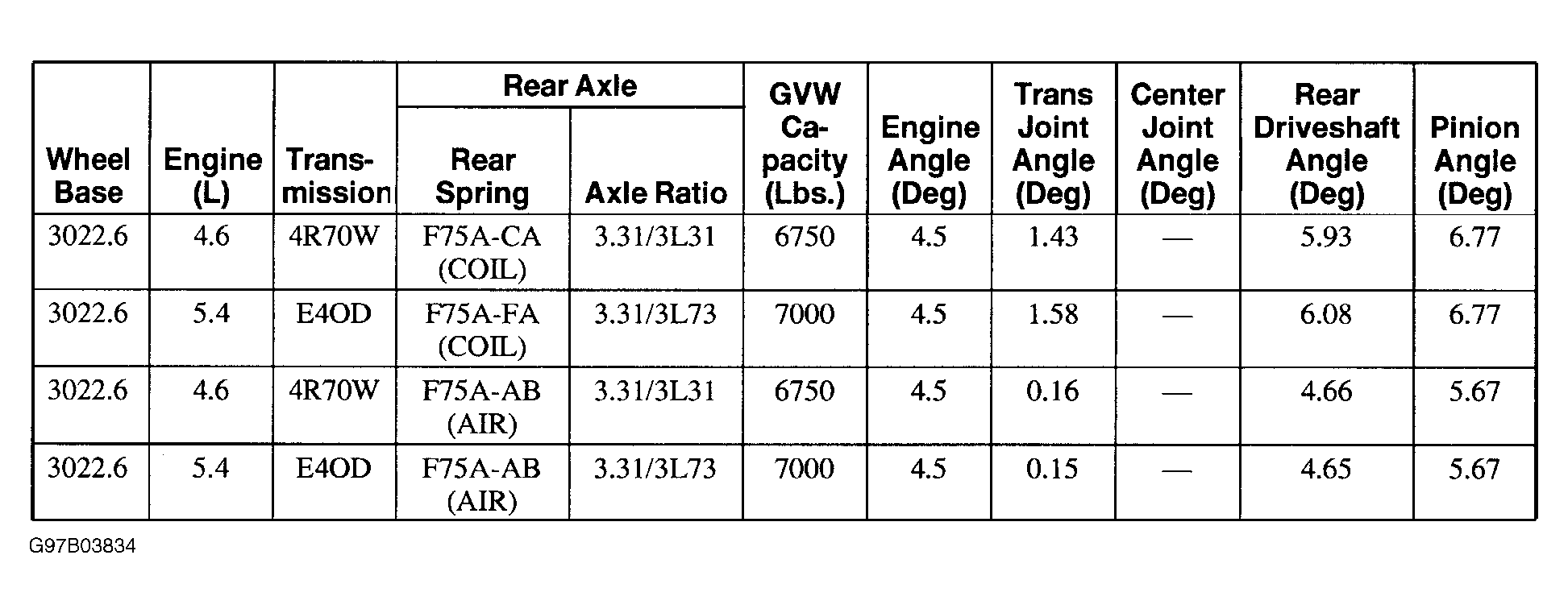

Fig 5: Determining Rear Driveline Angles (Expedition 2WD & Navigator 2WD)

Courtesy of FORD MOTOR CO.

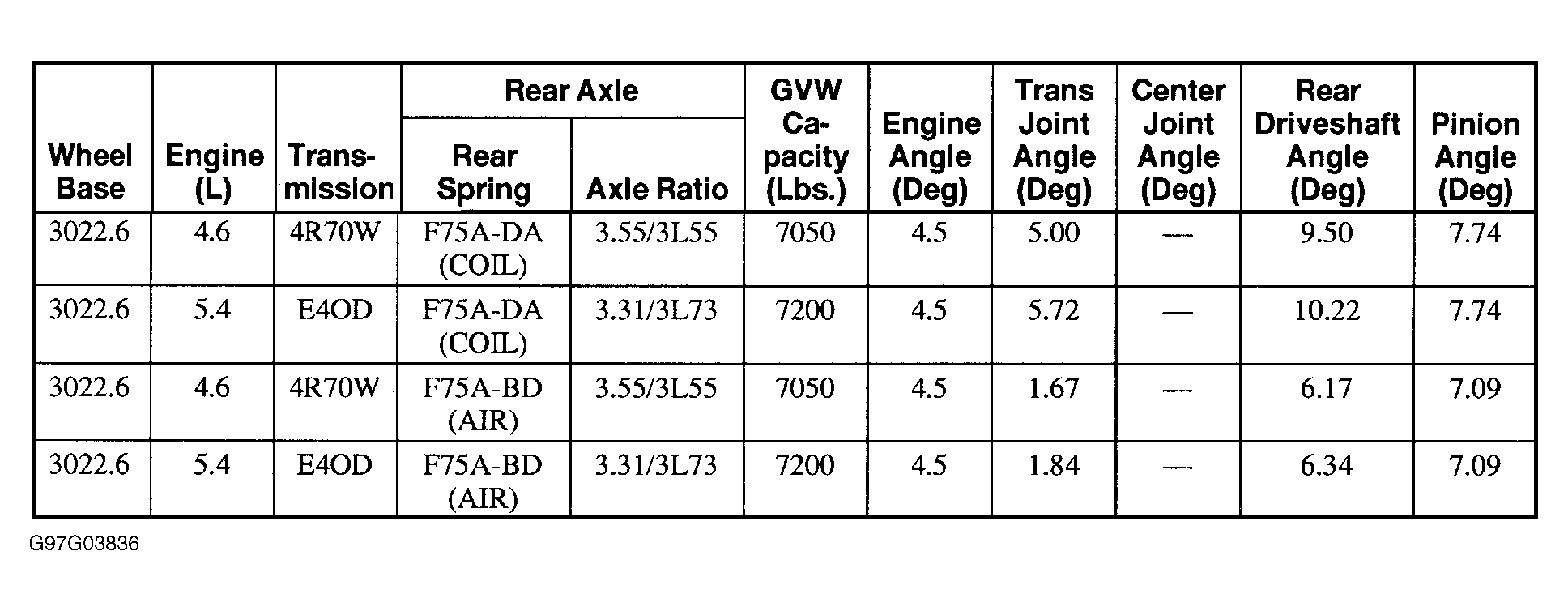

Fig 6: Determining Rear Driveline Angles (Expedition 2WD & Navigator 4WD)

Courtesy of FORD MOTOR CO.

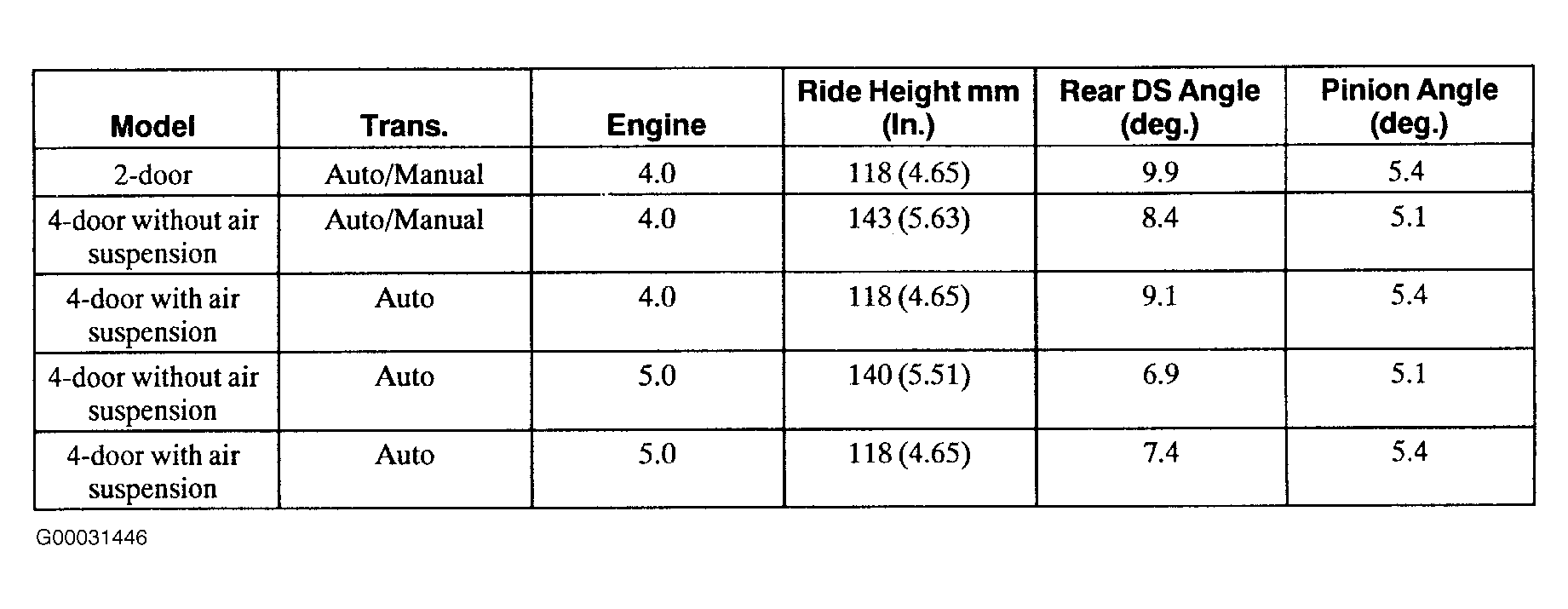

Fig 7: Determining Rear Driveline Angles (Explorer 2WD)

Courtesy of FORD MOTOR CO.

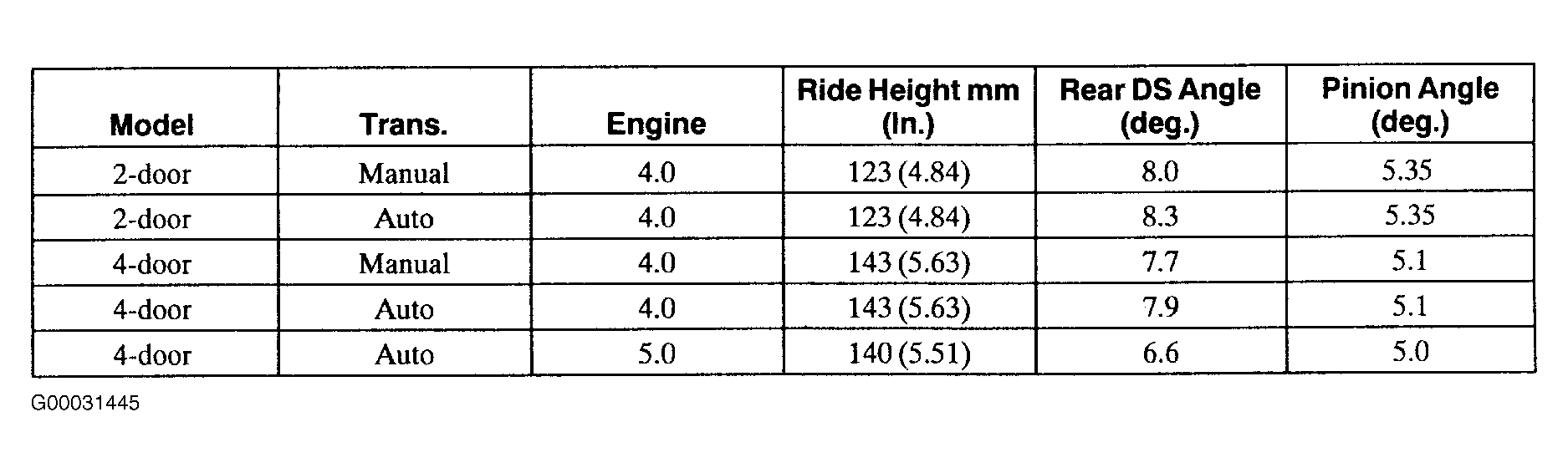

Fig 8: Determining Driveline Angles (Explorer 4WD & Mountaineer 4WD)

Courtesy of FORD MOTOR CO.

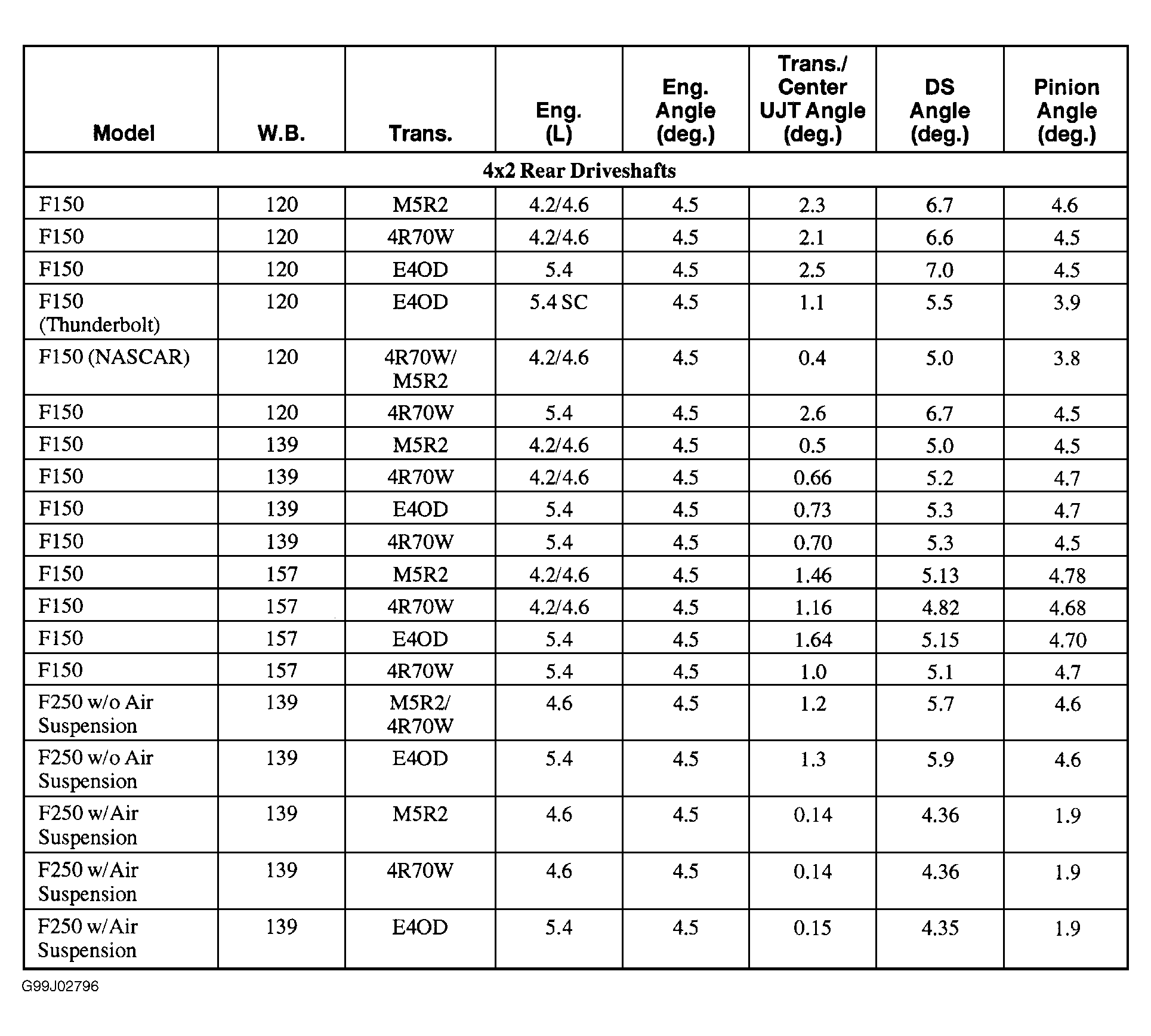

Fig 9: Determining Rear Driveline Angles (F150 2WD)

Courtesy of FORD MOTOR CO.

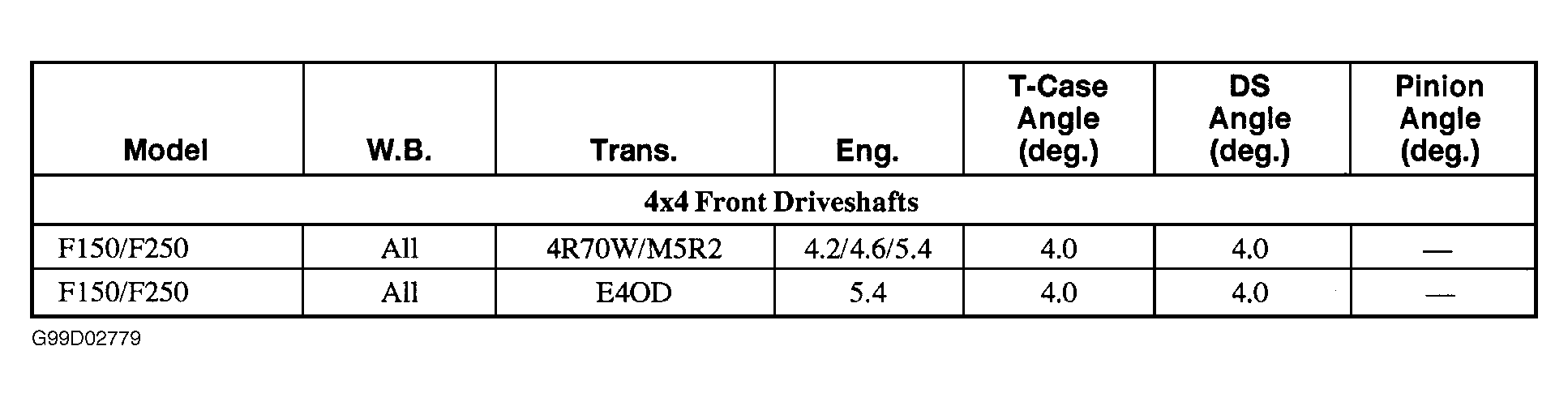

Fig 10: Determining Front Driveline Angles (F150 4WD)

Courtesy of FORD MOTOR CO.

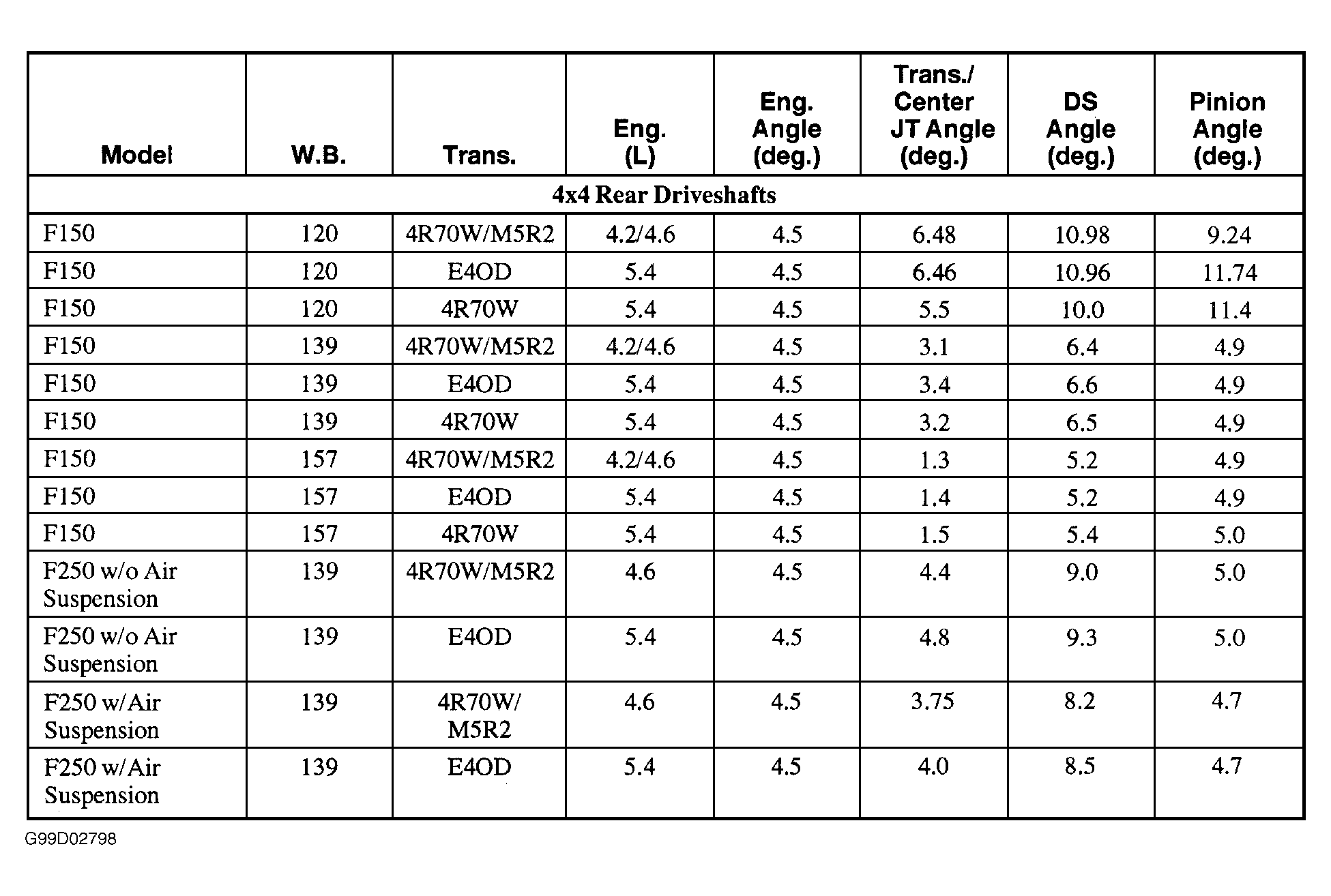

Fig 11: Determining Rear Driveline Angles (F150 4WD)

Courtesy of FORD MOTOR CO.

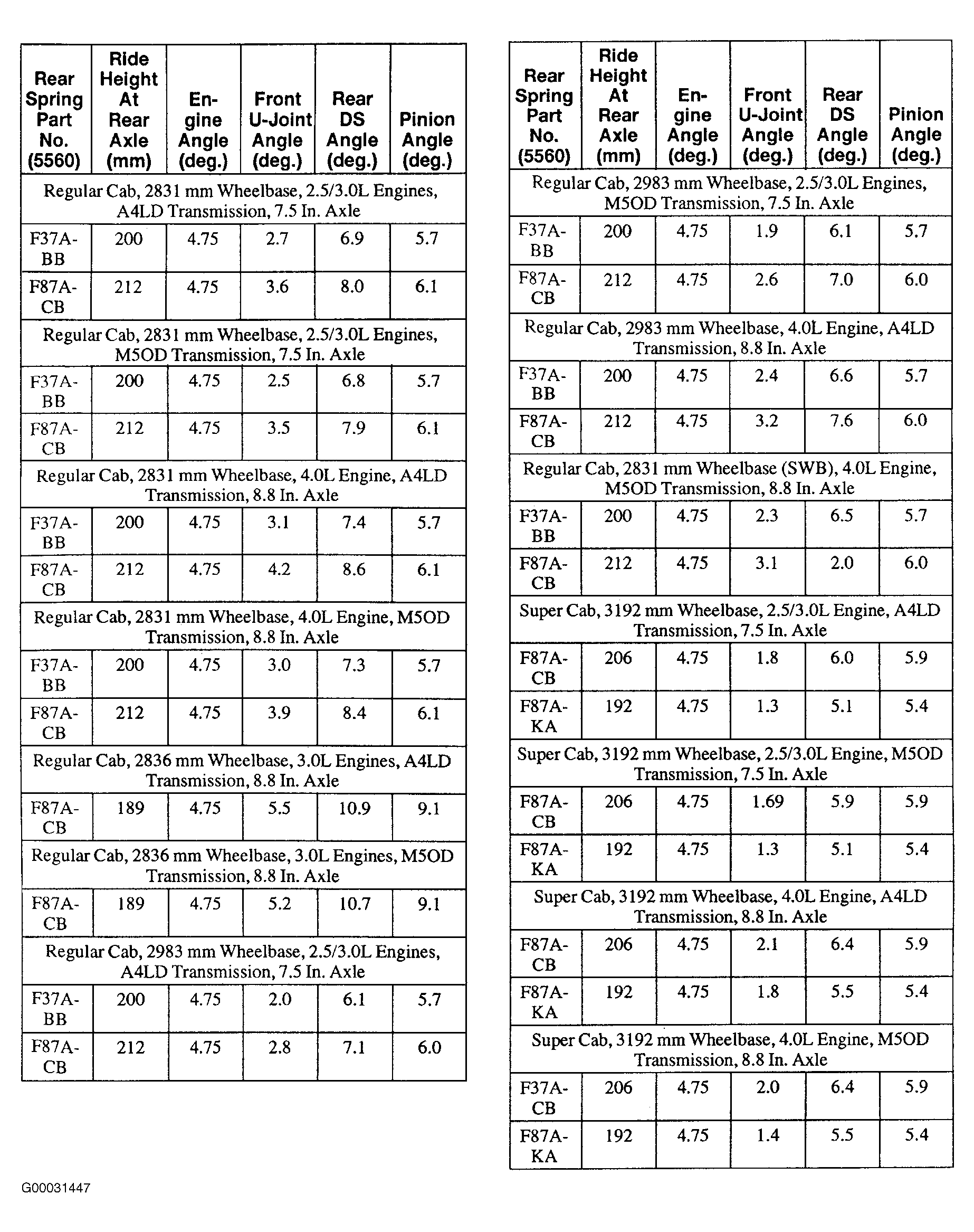

Fig 12: Determining Driveline Angles (Ranger 2WD)

Courtesy of FORD MOTOR CO.

Fig 13: Determining Driveline Angles (Ranger 4WD)

Courtesy of FORD MOTOR CO.
