Removal And Installation: Hub: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the tire and wheel assembly. Refer to WHEELS & TIRES .
Remove the anchor plate. Refer to ANCHOR PLATE .

Fig 1: Removing Anchor Plate
Courtesy of FORD MOTOR CO.
Remove the axle shaft (4234). Refer to AXLE SHAFT .

Fig 2: Removing Axle Shaft
Courtesy of FORD MOTOR CO.

F-350

NOTE: Make sure that the drive tangs on the special tool engage the four slots of the hub nut.

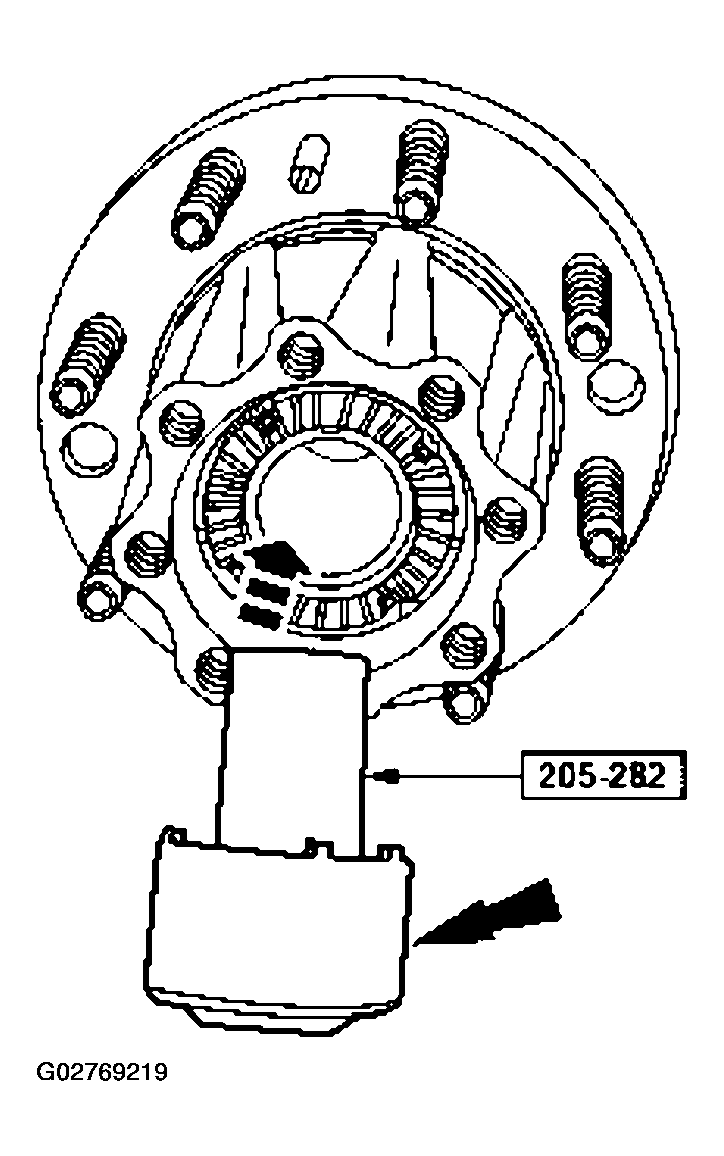

Fig 3: Removing Hub Nut Using Special Tool (F-350)

Courtesy of FORD MOTOR CO.

Using the special tool, remove the hub nut (1124).
F-450 and F-550
Using a suitable socket, remove the hub nut (1A124).

Fig 4: Removing Hub Nut Using Special Tool (F-450 & F-550)
Courtesy of FORD MOTOR CO.

All vehicles
Remove the outer rear wheel bearing (1240).

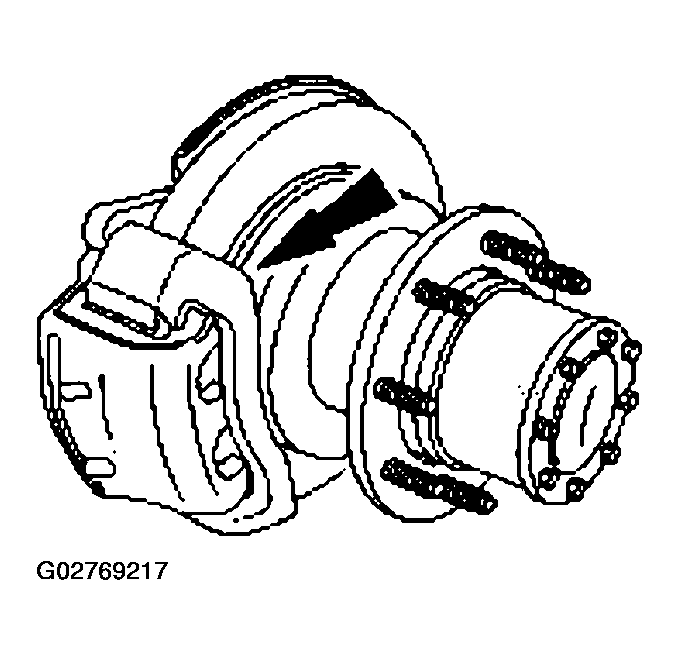

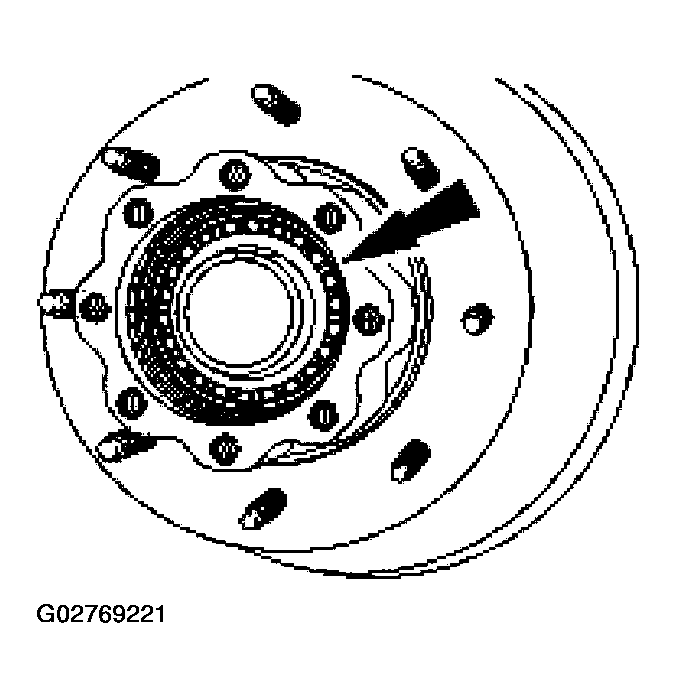

Fig 5: Removing Outer Rear Wheel Bearing
Courtesy of FORD MOTOR CO.
Remove the rear hub and brake disc assembly.
Remove the bolts and separate the rear hub (1109) from the rear brake disc (2C026).

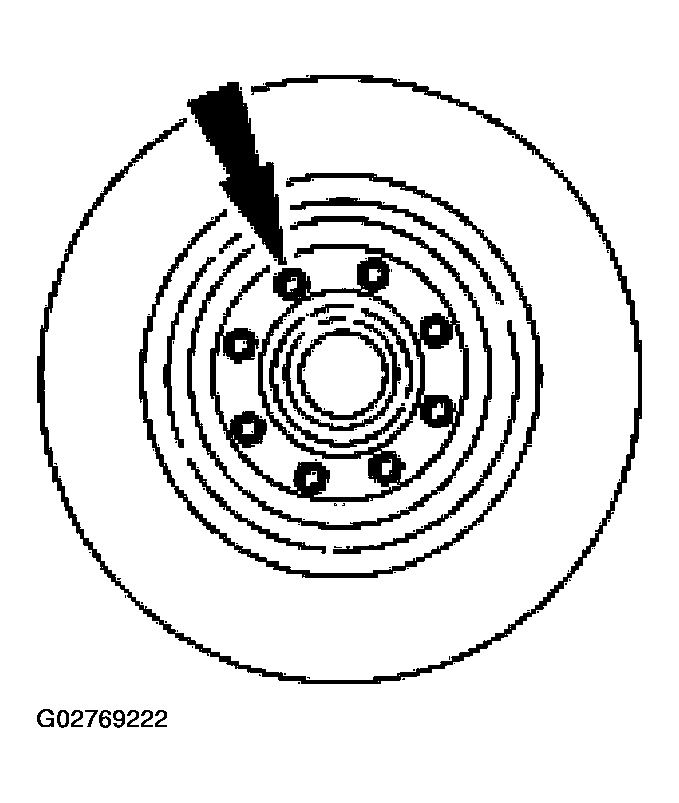

Fig 6: Removing Bolts
Courtesy of FORD MOTOR CO.
Inspect the rear hub for the following:
- Cracks and damage around the bolt holes.
- Oversized holes.
