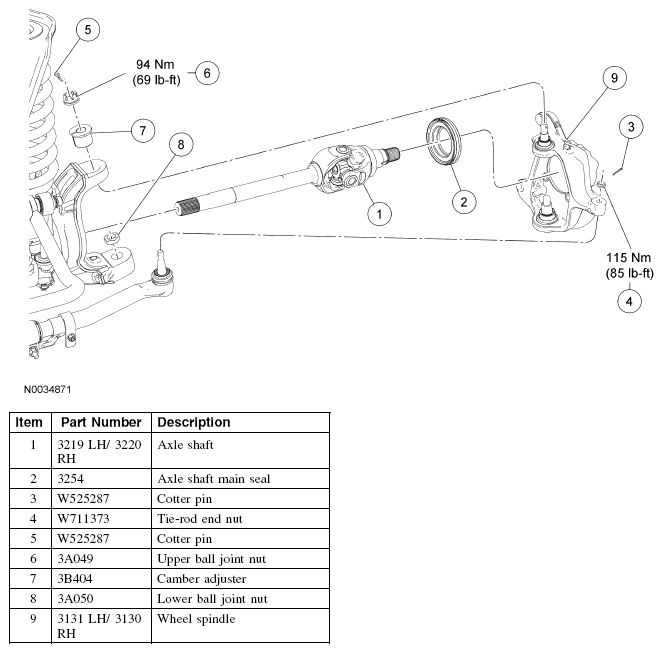

Wheel Knuckle & Axle Shaft: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, 2006 Ford Cab & Chassis, and 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Steering Arm Remover 211-003 (T64P-3590-F) |
|
| C-Frame and Screw 211-023 (T74P-3044-A1) |
|
| Installer/Remover, Drive Pinion Oil Seal 205-440 |
|
| Installer, Wheel Knuckle Seal (F250/350) 205-830 |
|
| Installer, Wheel Knuckle Seal (F450/550) 205-831 |
MATERIAL
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 | WSK-M2G351-A5 |
