Stabilizer Bar Link: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, 2006 Ford Cab & Chassis, and 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.

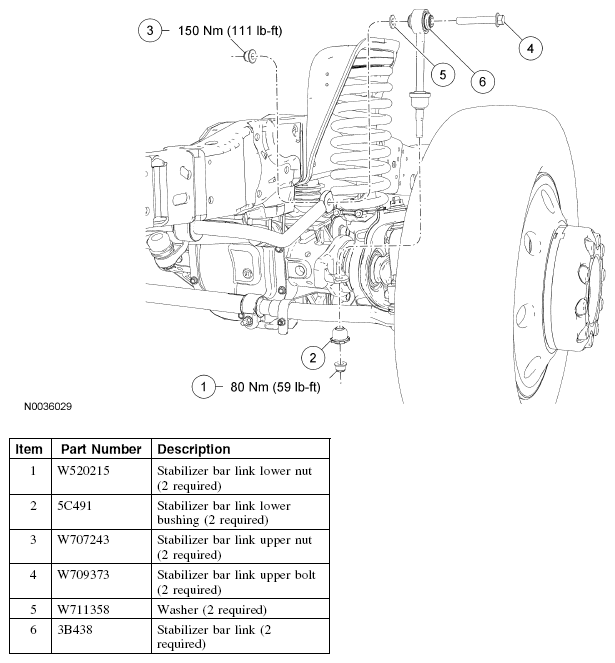

Fig 1: Stabilizer Bar Link Replacement Components With Torque Specifications
G04643171Courtesy of FORD MOTOR CO.
