Passenger-Side Air Bag Module: Installation

To install, reverse removal procedure. Tighten air bag module nuts to specification. See TORQUE SPECIFICATIONS  . Activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM. Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK  .

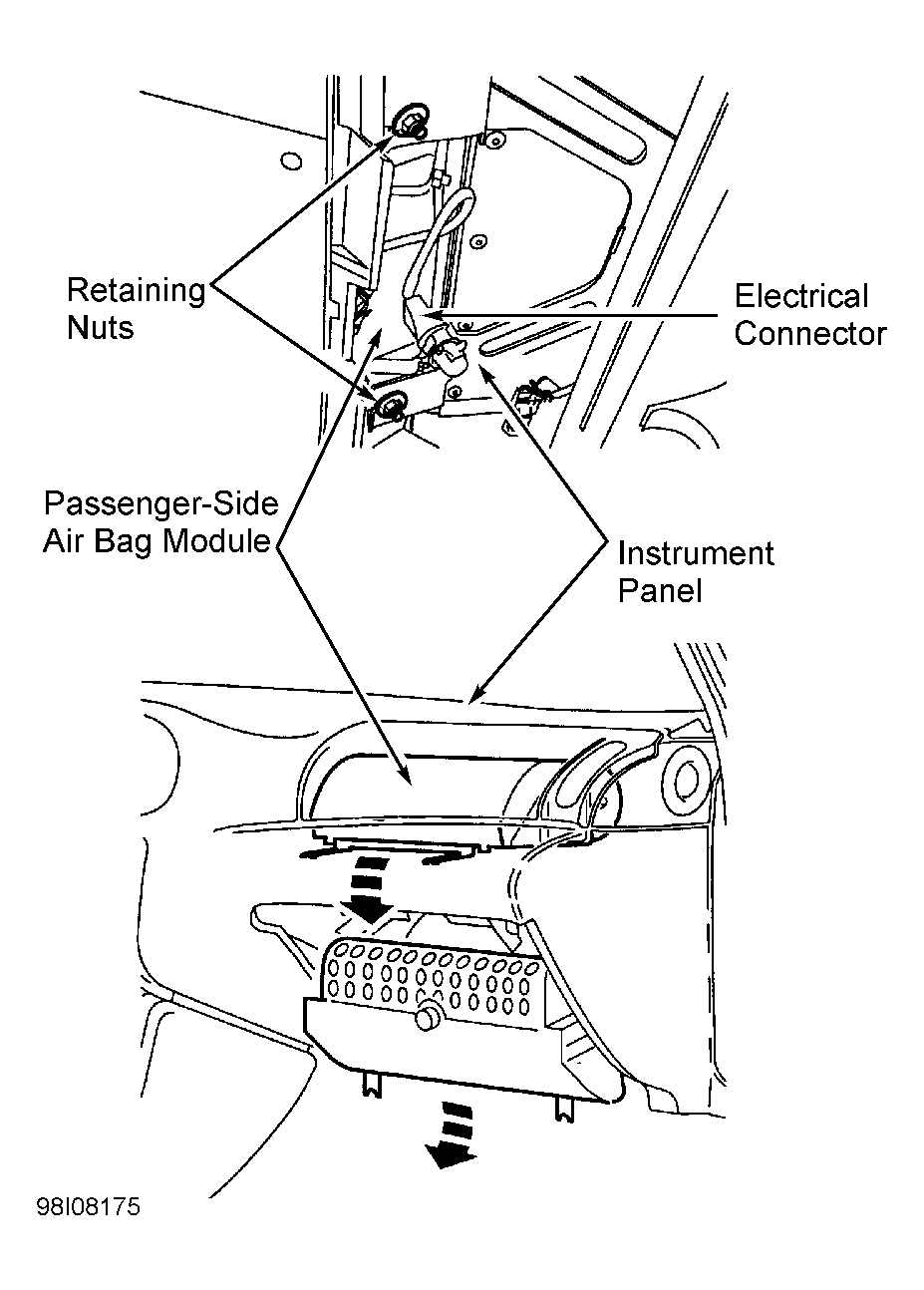

Fig 1: Removing Passenger-side Air Bag Module
G98I08175Courtesy of FORD MOTOR CO.
