Air Bag Restraint Systems: Adjustments: CLOCKSPRING

Rotate inner rotor against outer rotor counterclockwise until it stops. Rotate inner rotor clockwise approximately 2 3/4 turns until alignment markings are aligned and locking tab locates into slot. See Fig 1 .

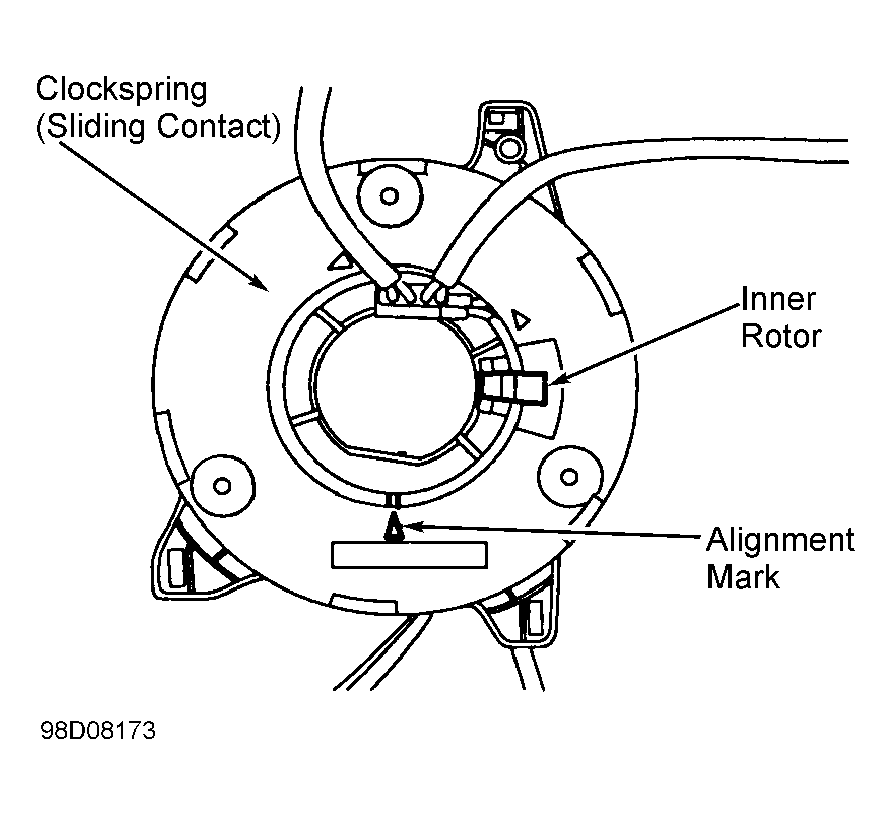

Fig 1: Centering Clockspring

Courtesy of FORD MOTOR CO.
