Removal (Focus)

WARNING: This page is about a different variant/trim than selected.
  1. Drain the cooling system.
  2. Disconnect the coolant hoses.

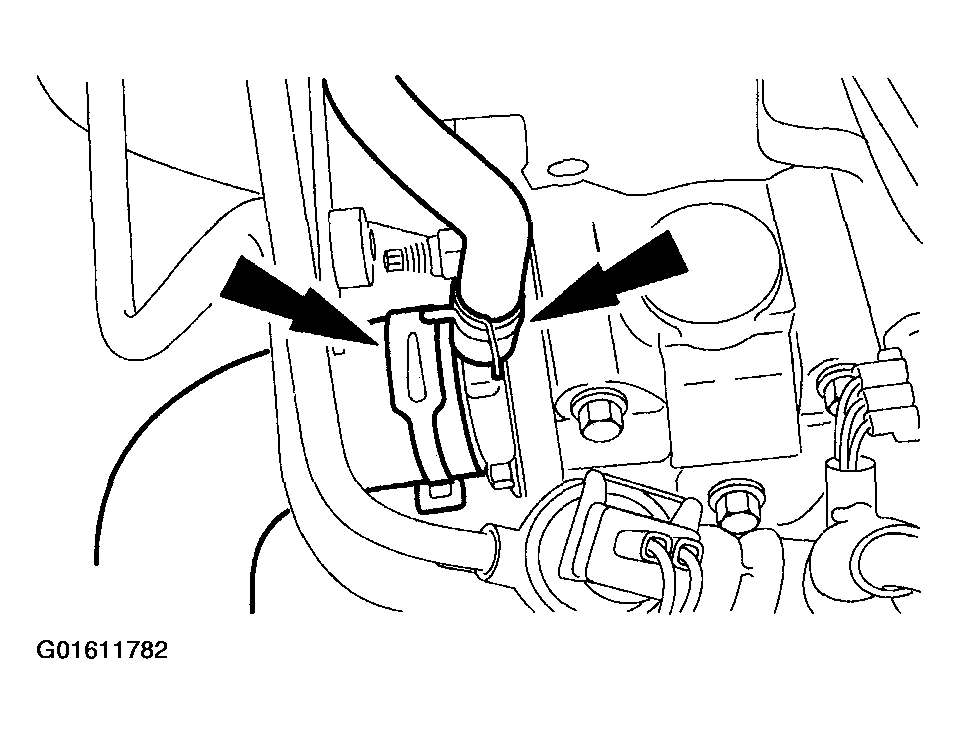

    Fig 1: Disconnecting Coolant Hoses
    G01611782Courtesy of FORD MOTOR CO.
  3. Remove the thermostat cover bolts.
    Fig 2: Removing Thermostat Cover Bolts
    G01611783Courtesy of FORD MOTOR CO.
  4. Remove the thermostat.
    Fig 3: Removing Thermostat
    G01611784Courtesy of FORD MOTOR CO.
  5. Remove and discard the rubber seal.
    Fig 4: Removing And Discard Rubber Seal
    G01611785Courtesy of FORD MOTOR CO.
