Removal (Contour, Cougar & Mystique)

WARNING: This page is about a different variant/trim than selected.

Drain the cooling system.
Disconnect the thermostat hoses.

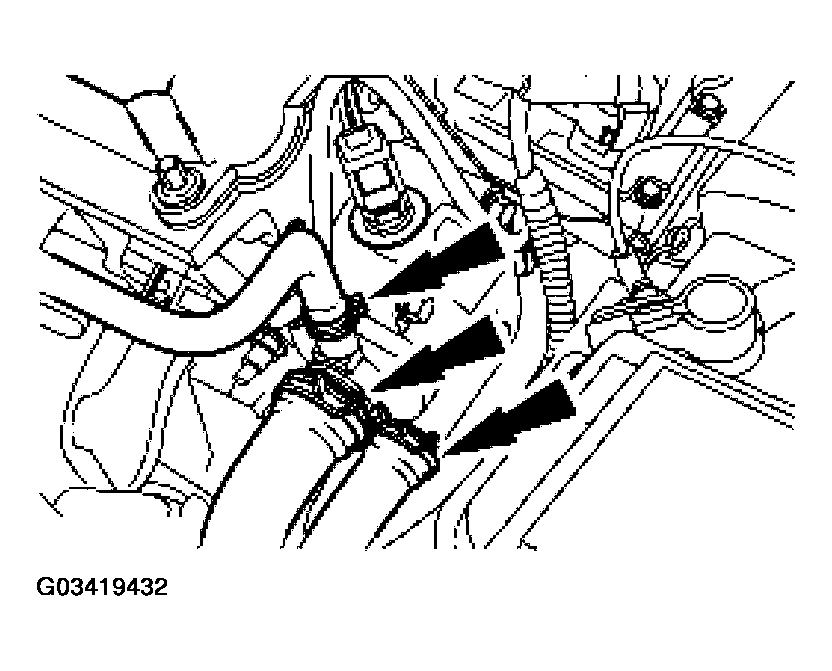

Fig 1: Disconnecting Thermostat Hoses
Courtesy of FORD MOTOR CO.
Remove the thermostat cover.
1. Remove the three bolts.
2. Remove the cover.

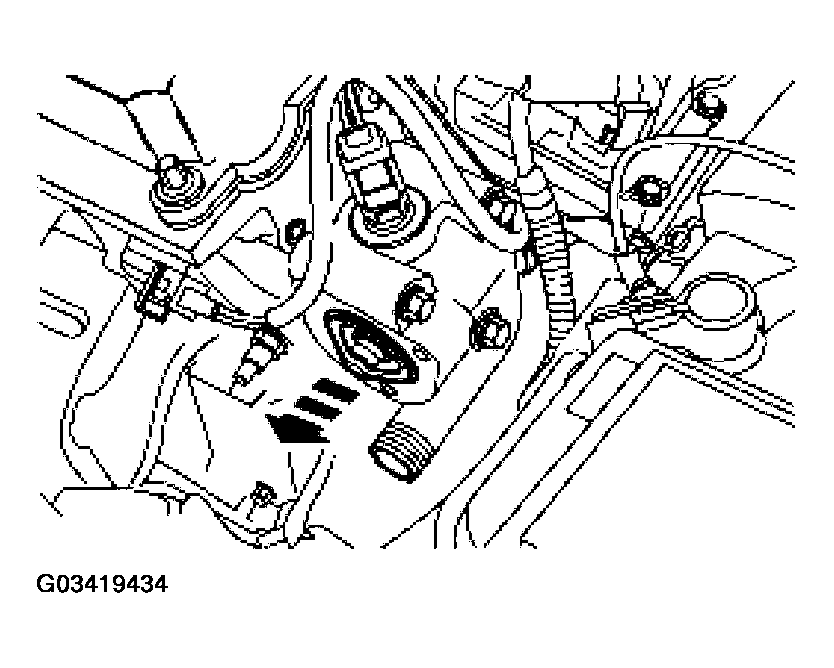

  Fig 2: Removing Thermostat Cover
  Courtesy of FORD MOTOR CO.
Remove the thermostat.
- Discard the O-ring seal.

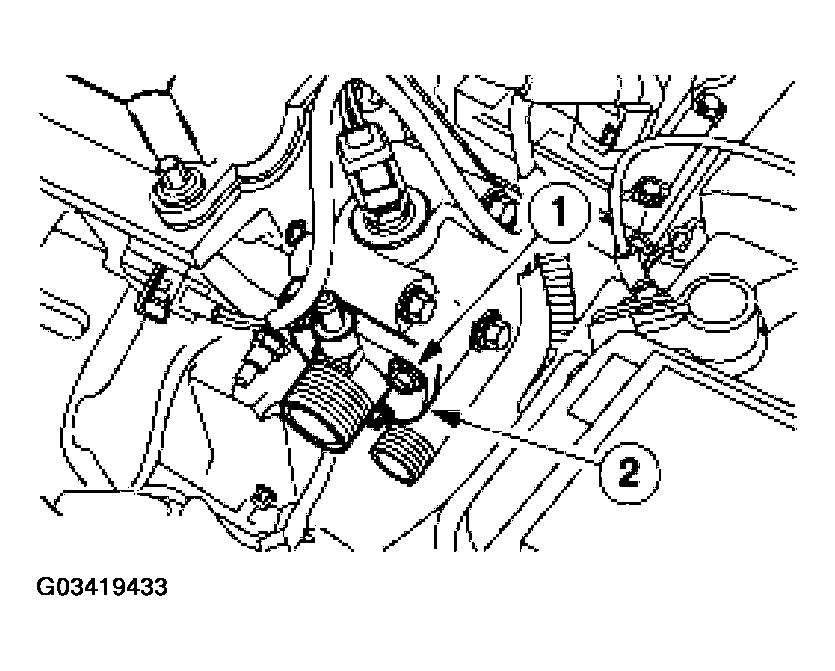

  Fig 3: Removing Thermostat
  Courtesy of FORD MOTOR CO.
