Piston Rings

WARNING: This page is about a different variant/trim than selected.

Inspect piston rings for abnormal wear or breakage. Ensure ring end gap and side clearance are within specification. See PISTONS, PINS & RINGS table under ENGINE SPECIFICATIONS. Position piston rings at designated areas. See Fig 1.

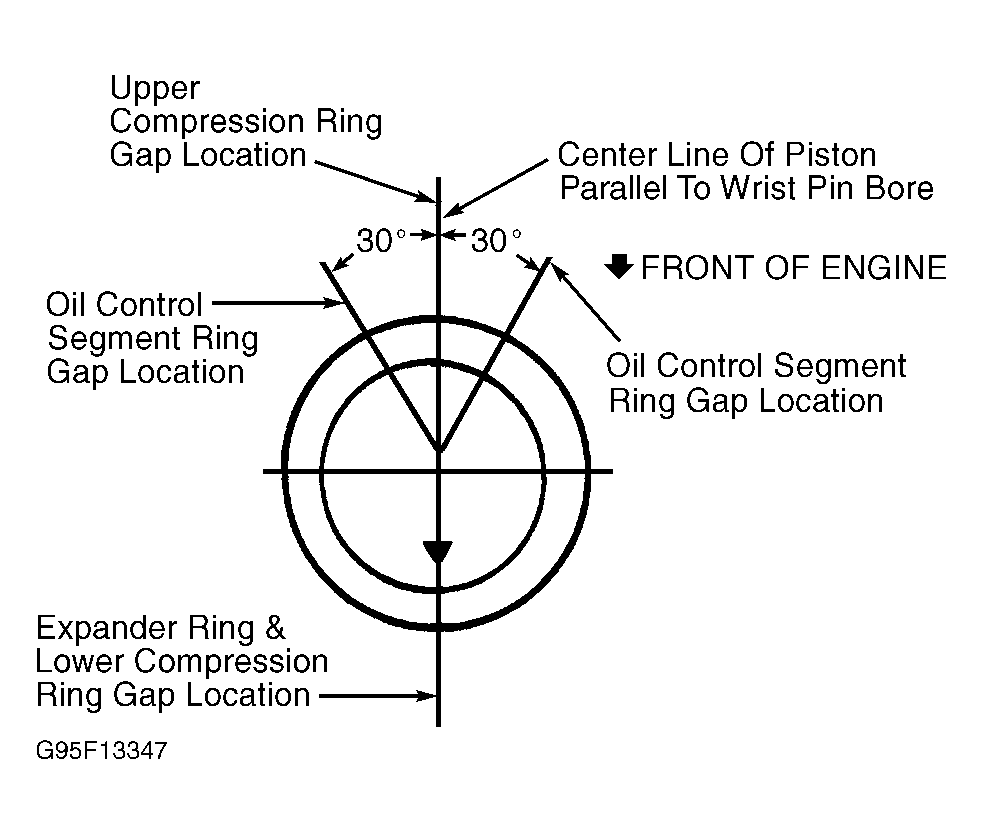

Fig 1: Positioning Piston Ring End Gaps

Courtesy of FORD MOTOR CO.
