Toe Adjustment - Front

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine and center the steering wheel.
  2. Turn the engine off, and hold the steering wheel in the straight-ahead position using a suitable holding device.
    3. NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod is rotated.

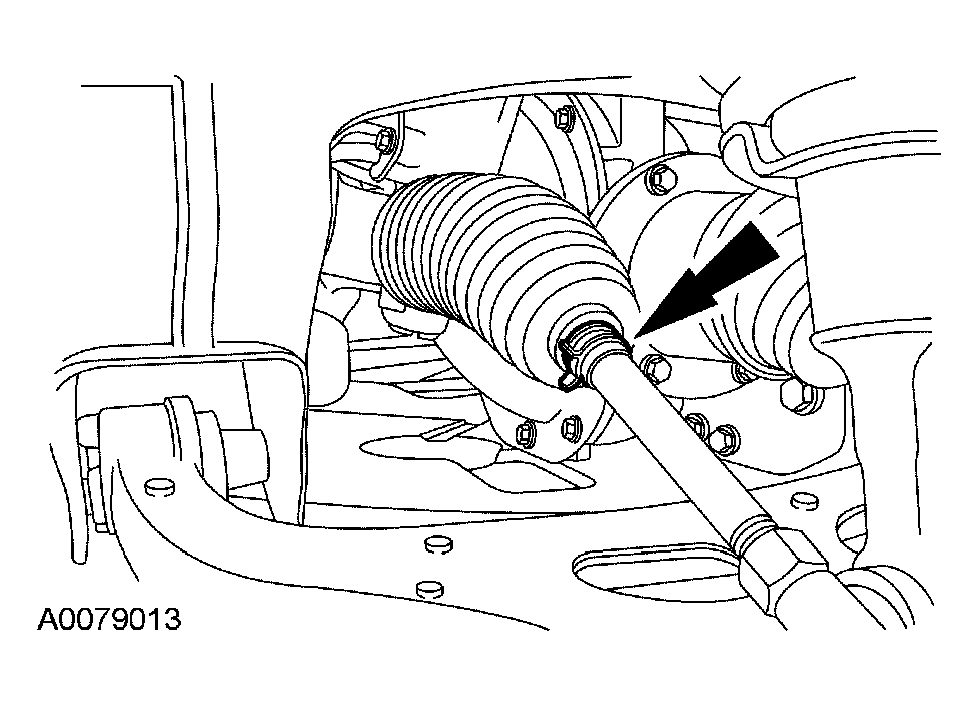

    Fig 1: Removing Clamps
    G03959831Courtesy of FORD MOTOR CO.
  3. Remove the clamps.
  4. Loosen the nuts.
    • Clean and lubricate the nut(s) and front wheel spindle tie-rod threads.

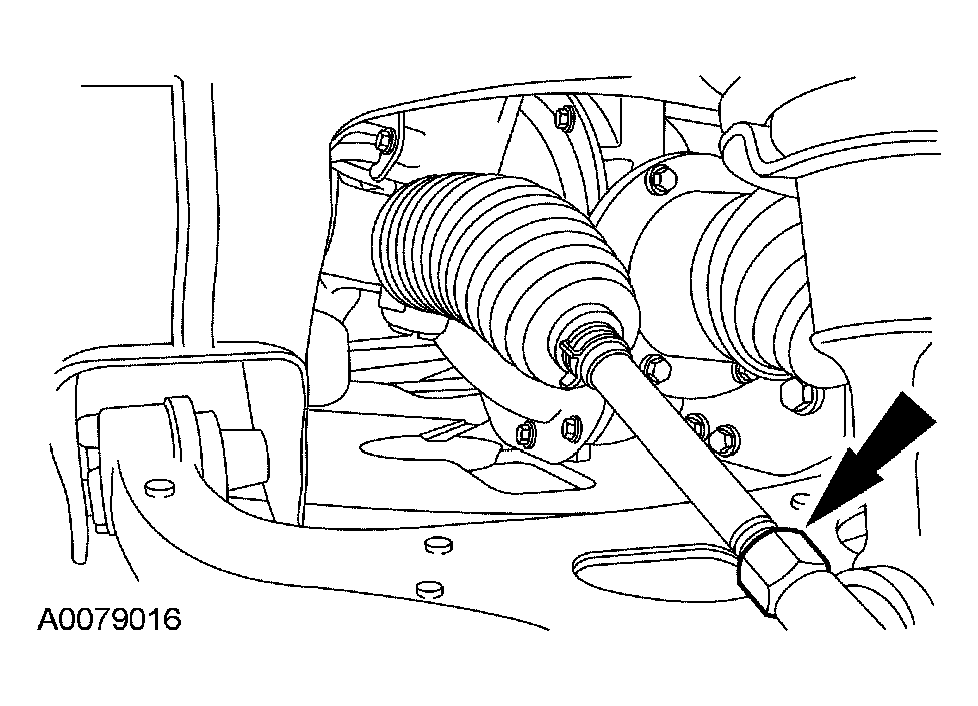

    Fig 2: Loosening Nuts
    G03959832Courtesy of FORD MOTOR CO.
  5. Rotate the front wheel spindle tie-rods.

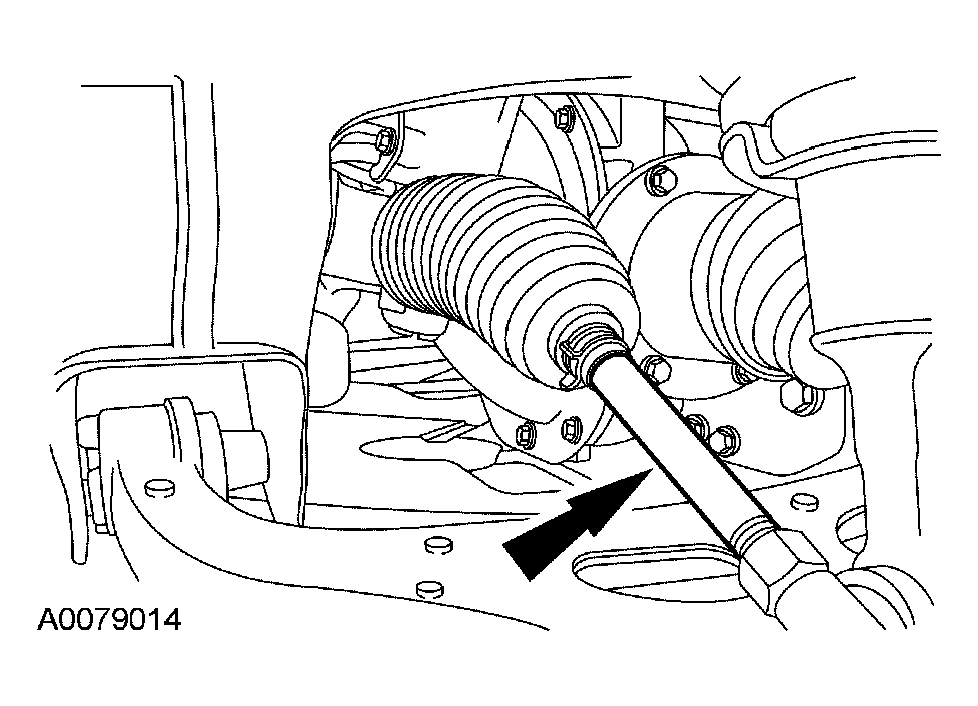

    Fig 3: Locating Front Wheel Spindle Tie-Rods
    G03959833Courtesy of FORD MOTOR CO.
  6. Start the engine and re-center the steering wheel.
    • Recheck the toe settings and adjust if necessary.
    7. CAUTION: Make sure to hold the tie-rod end stationary with a wrench while tightening the nut or damage to the boot can occur.
    NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

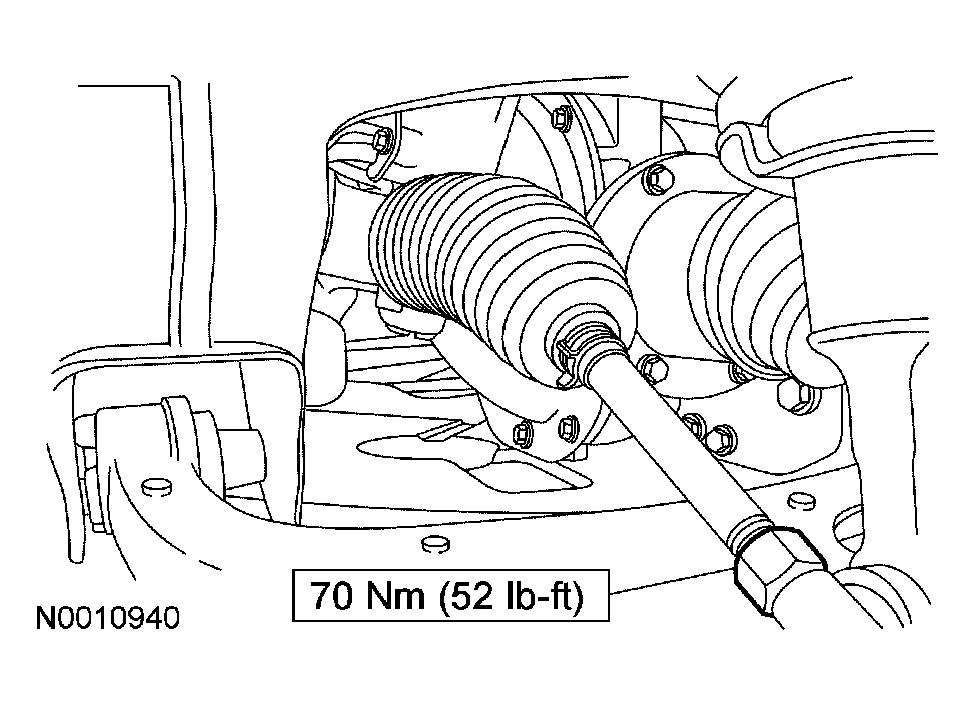

    Fig 4: Tightening Nuts With Specified Torque
    G03959834Courtesy of FORD MOTOR CO.
  7. Tighten the nuts.
  8. Install the clamps.
