Windshield Glass: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) CHART

G03946068
Interior Auto Glass Cut-Out Knife Kit (Electric)
164-R2450 or equivalent
G03999683
Interior Auto Glass Cut-Out Knife Kit (Air Powered)
164-R2451 or equivalent
G03916930
The Pumper
164-R2459 or equivalent
MATERIAL ITEM SPECIFICATION

Item Specification
Dow Automotive 2-Hour Cure
Urethane Adhesive
Betaseal® Express
-
Urethane One Step Glass Primer Betaprime®
5500/5500 A/5500SA
-
Sika 2-Hour Cure
Urethane Adhesive Sika
Tack ASAP
-
Urethane Metal and Glass
Primer Sika 206 G+P
-
WARNING: To prevent glass splinters from entering the eyes or cutting hands, wear safety glasses and heavy gloves when cutting and removing the glass from the vehicle.

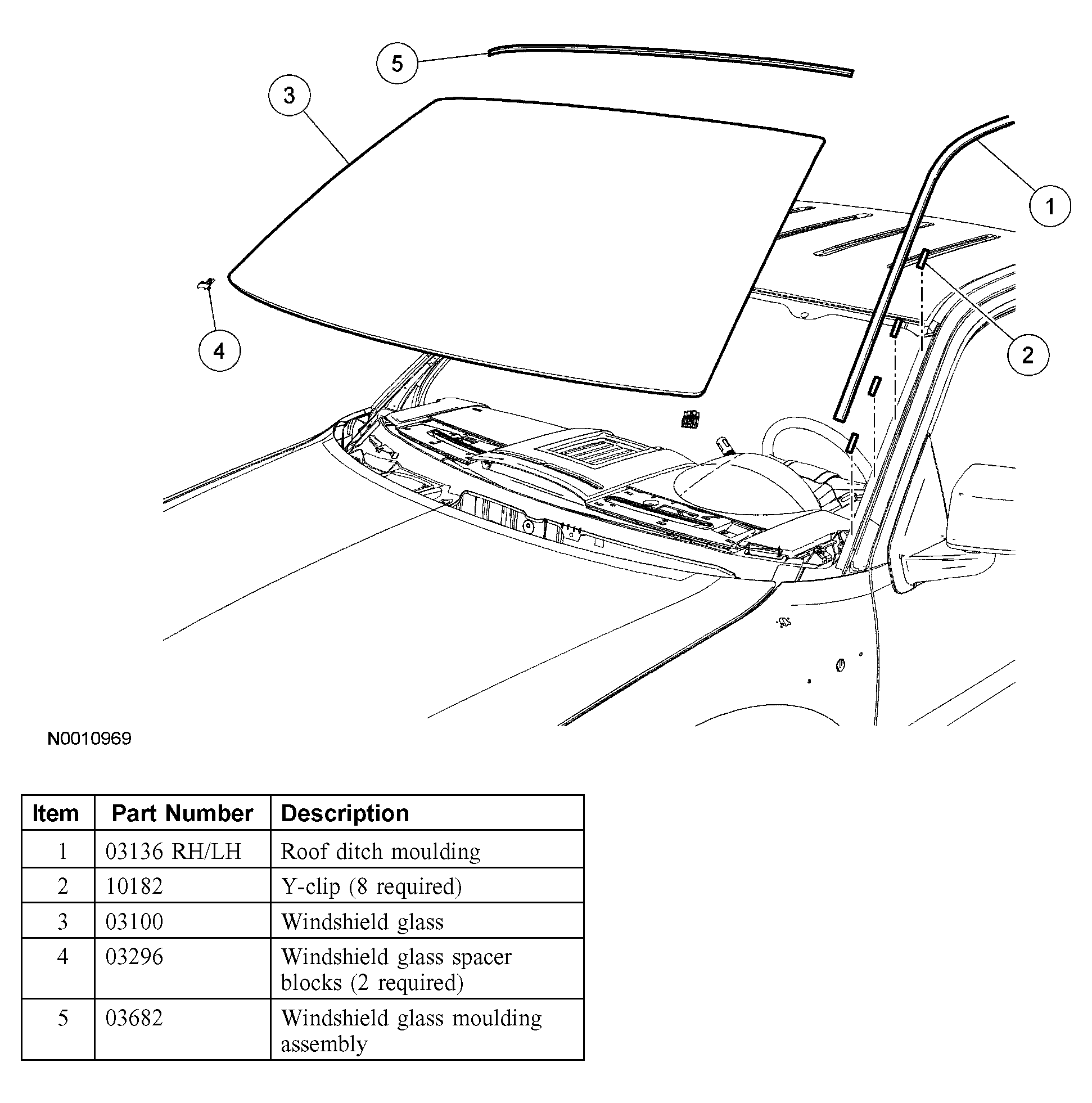

Fig 1: Identifying Glass Assembly From Vehicle
G03966367Courtesy of FORD MOTOR CO.
