Rear Window Glass: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

    NOTE: Remove as much of the foam core butyl as possible from the body and window glass prior to installation.
  1. Install the rear window glass.
    • Apply foam core butyl to the window. Overlap the foam core butyl by 25 mm (1 in) at the bottom middle of the rear window glass.
    • Carefully install the rear window glass into the body opening.
  2. Install the rear window glass nuts.
    • Tighten to 4 Nm (35 lb-in).
  3. If equipped, connect the heated rear backlight connectors.

    Power sliding rear window

    4. CAUTION: The following substeps are to prevent the cables from popping out of the motor housing. If an existing regulator and motor assembly is to be reused, do not allow the cables to pop out of the motor housing, as they can unwind from the drum. If the cables unwind from the drum, a new regulator and motor assembly will have to be installed.
    NOTE: LH side shown, RH side similar.

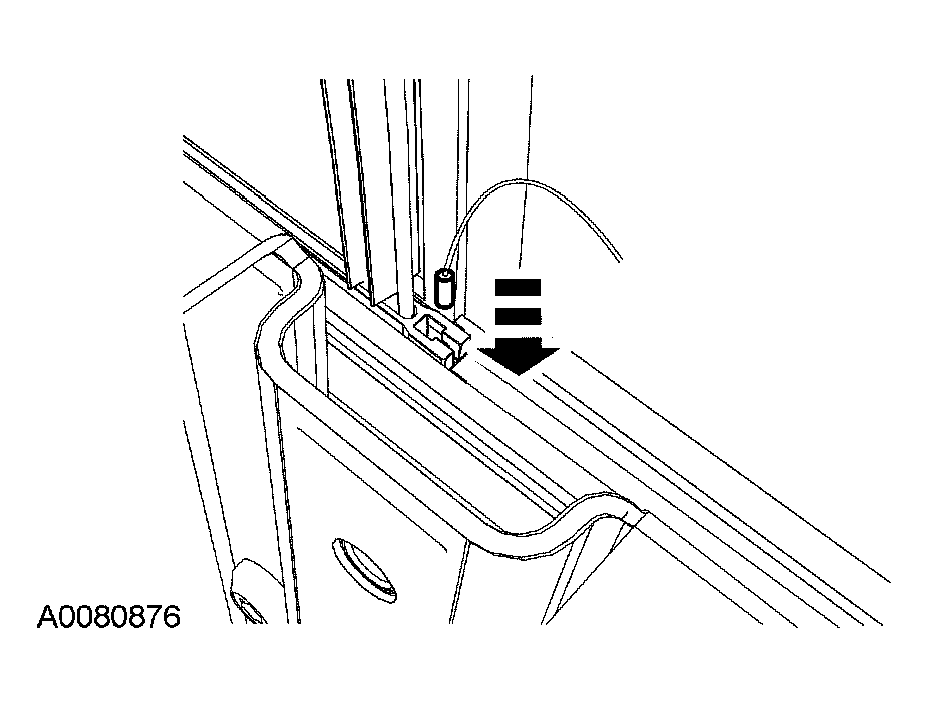

    Fig 1: Installing Cable Swag Into Guide Bracket On Sliding Rear Window
    G03966391Courtesy of FORD MOTOR CO.
  4. Install the LH cable first, then the RH side cable. Install the cable swag into the guide bracket on the sliding rear window.
    5. NOTE: LH side shown, RH side similar.

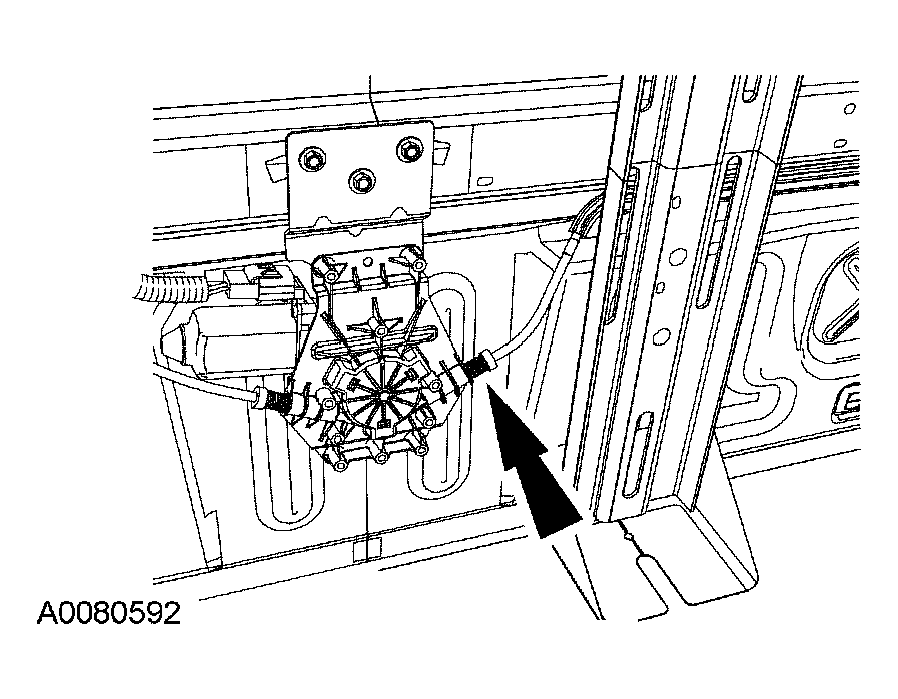

    Fig 2: Compressing And Hold Cable Tension Spring
    G03966389Courtesy of FORD MOTOR CO.
  5. Compress and hold the cable tension spring.
    6. NOTE: LH side shown, RH side similar.
    NOTE: While holding the LH cable under tension, cycle the window motor to decrease the freeplay on the RH cable. Reducing the freeplay on the RH cable will allow ease of installation of the RH cable.

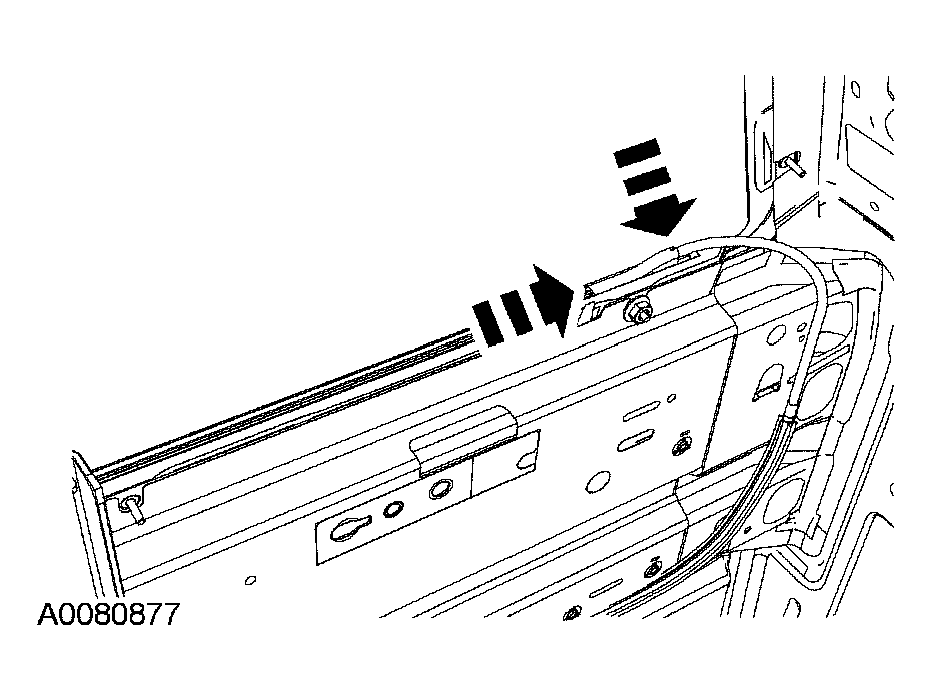

    Fig 3: Pressing Transition Block Away From Centerline Of Vehicle And Snapping It Into Groove
    G03966393Courtesy of FORD MOTOR CO.
  6. Press the transition block away from the centerline of the vehicle, then snap it into the groove. Release the cable tension spring.
    7. NOTE: LH side shown, RH side similar.

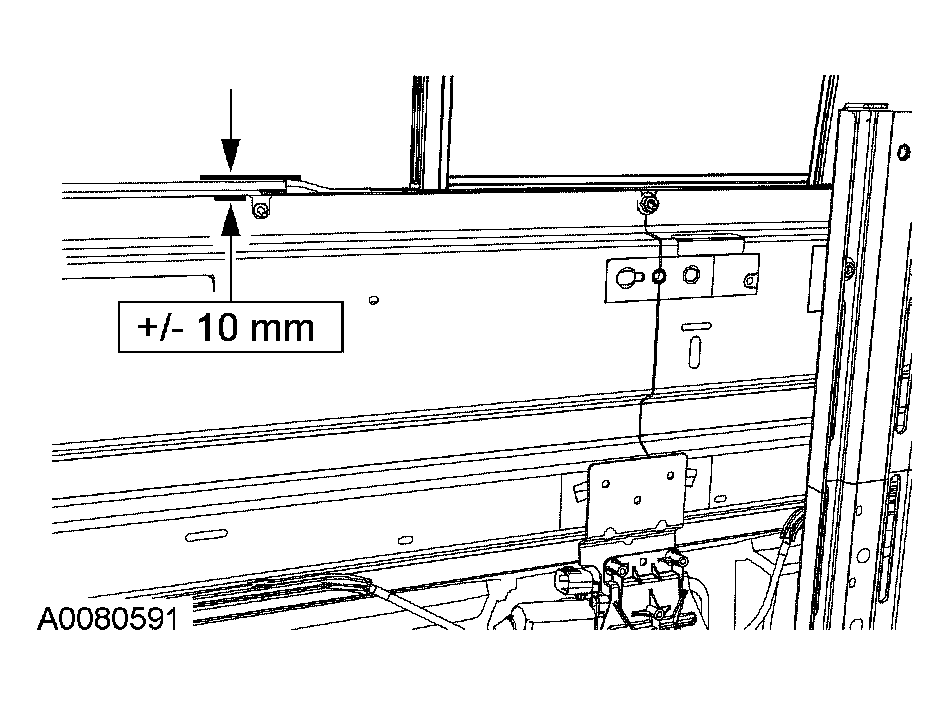

    Fig 4: Identifying Transition Block Is Correctly Seated When Its Top Edge Is Above Top Of Window Opening
    G03966394Courtesy of FORD MOTOR CO.
  7. The transition block is correctly seated when its top edge is +/- 10 mm (0.39 in) above the top of the window opening.
  8. Install the rear corner trim. For SuperCab vehicles, install the B-pillar trim panel. For SuperCrew vehicles, install the C-pillar trim panel. For additional information, REFER to INTERIOR TRIM AND ORNAMENTATION .

    9. All vehicles

  9. Install the rear trim panel.
  10. Install the rear trim panel pin-type retainers.

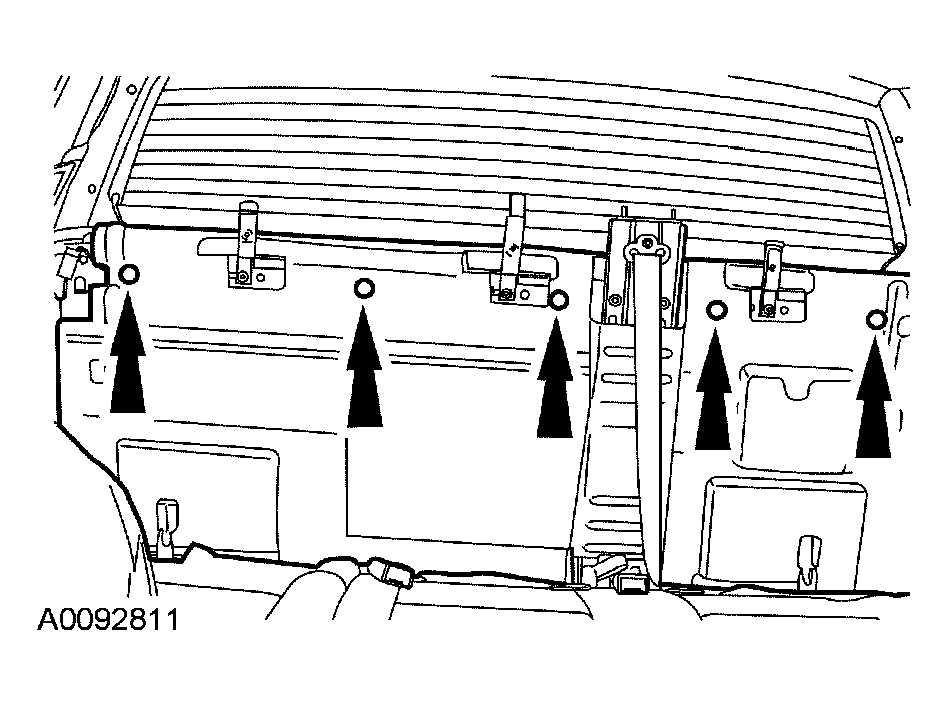

    Fig 5: Installing Rear Trim Panel Pin-Type Retainers
    G03966385Courtesy of FORD MOTOR CO.
  11. Install the headliner, for Regular and SuperCab vehicles. For SuperCrew vehicles, raise and reposition the headliner. For additional information, REFER to INTERIOR TRIM AND ORNAMENTATION .
