Clutch and Clutch Field Coil: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

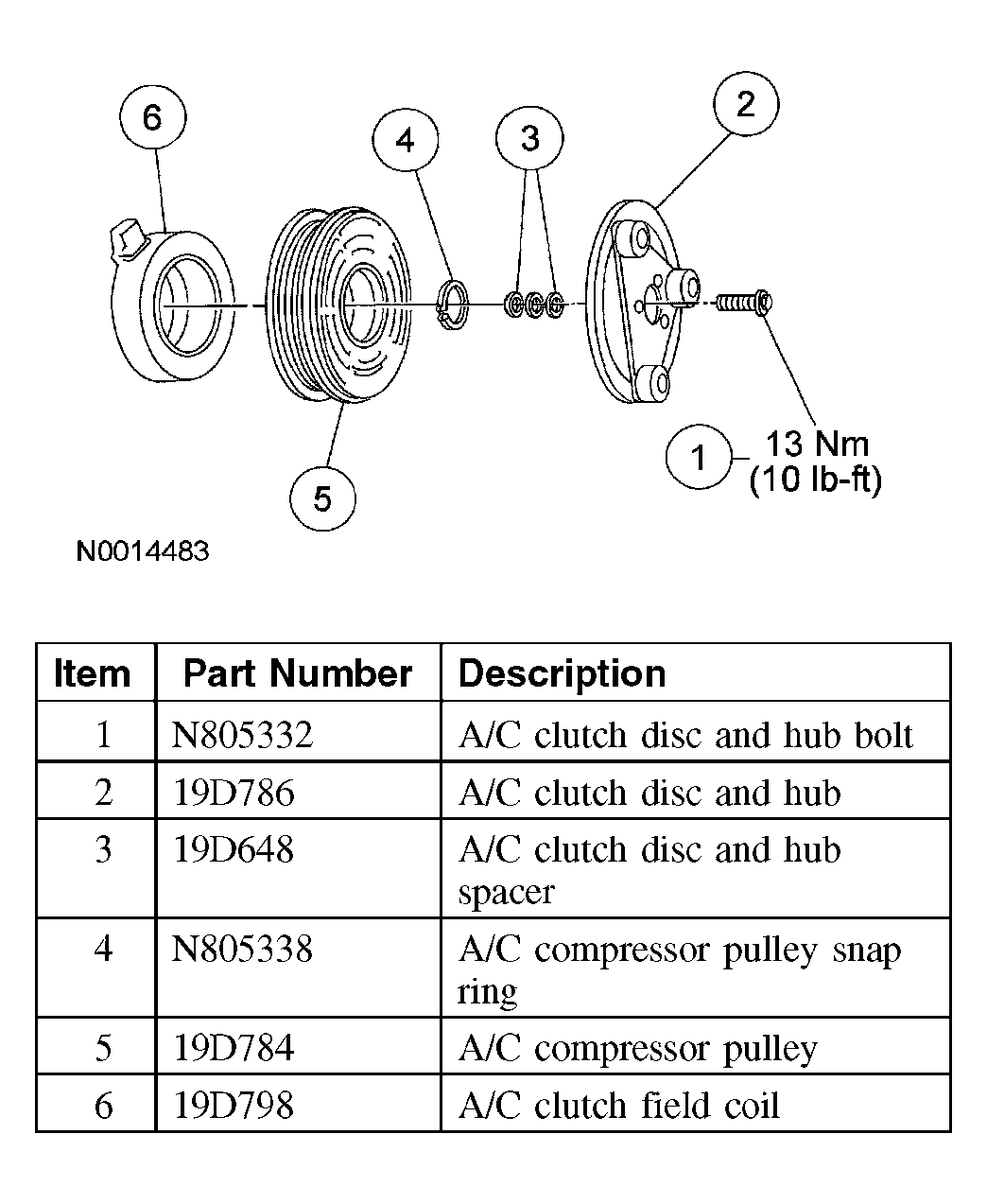

Fig 1: Identifying Clutch And Clutch Field Coil Components
G03965347Courtesy of FORD MOTOR CO.
  1. Remove the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR - 4.2L  or AIR CONDITIONING (A/C) COMPRESSOR - 4.6L AND 5.4L .
  2. Remove the A/C clutch disc and hub bolt.
    1. Using the special tool, hold the A/C clutch disc and hub.
    2. Remove the A/C clutch disc and hub bolt.
    Fig 2: Removing A/C Clutch Disc And Hub Bolt
    G03952015Courtesy of FORD MOTOR CO.
  3. Remove the A/C clutch disc and hub.
  4. Remove the A/C clutch disc and hub spacer(s).
  5. Remove the A/C clutch pulley snap ring.
    6. CAUTION: Do not use air tools. Damage to the A/C compressor pulley or A/C compressor may result.

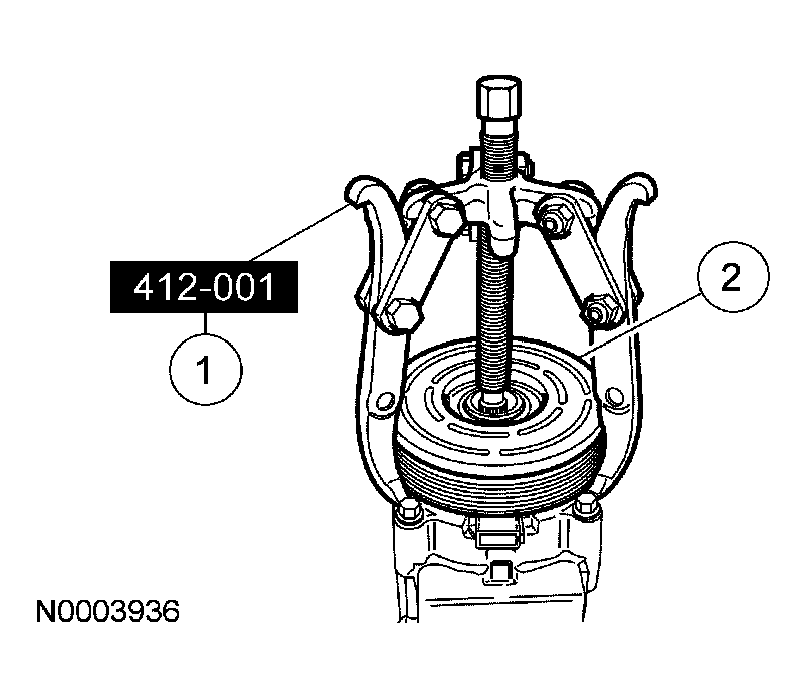

    Fig 3: Removing A/C Compressor Pulley Using Special Tool
    G03965349Courtesy of FORD MOTOR CO.
  6. Remove the A/C compressor pulley.
    1. Install the special tool.
    2. Remove the A/C compressor pulley.
    7. CAUTION: Do not use air tools. Damage to the A/C clutch field coil or A/C compressor may result.

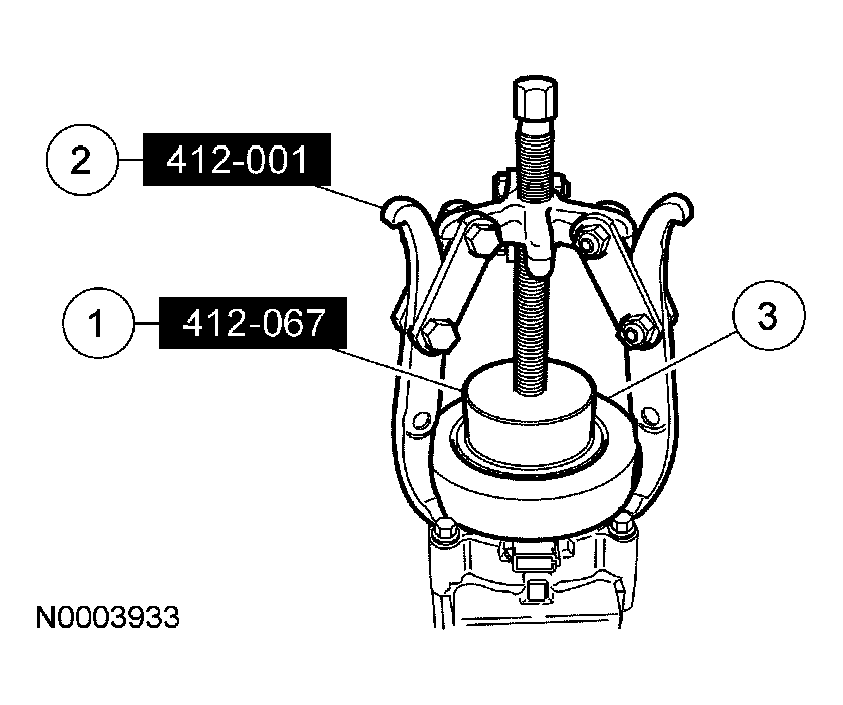

    Fig 4: Removing A/C Clutch Field Coil Using Special Tools
    G03965350Courtesy of FORD MOTOR CO.
  7. Remove the A/C clutch field coil.
    1. Install the special tool.
    2. Install the special tool.
    3. Remove the A/C clutch field coil.
