Clutch and Clutch Field Coil: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If installing a new A/C compressor, the A/C clutch components should be reused unless obvious signs of damage are found. If excessive grooving is found, a new A/C clutch disc and hub and A/C compressor pulley must be installed together. Otherwise, each component can be installed individually where needed.
  1. Visually inspect the A/C clutch disc and hub, A/C compressor pulley and A/C clutch field coil for damage.
    • Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
    • Inspect for excessive wear, including grooving in the A/C clutch disc and hub or A/C compressor pulley that is more than fingernail depth.
    • Inspect for roughness in the A/C compressor pulley bearing.
    2. CAUTION: Do not use air tools. Damage to the A/C clutch field coil or A/C compressor may result.

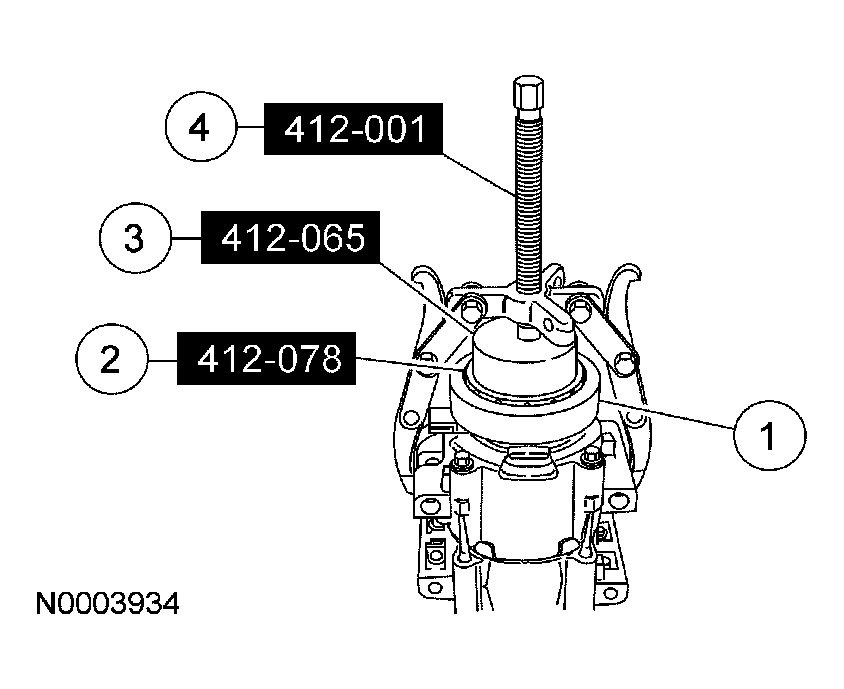

    Fig 1: Installing A/C Clutch Field Coil Using Special Tool
    G03965351Courtesy of FORD MOTOR CO.
  2. Install the A/C clutch field coil.
    1. Place the A/C clutch field coil on the A/C compressor with the A/C clutch field coil electrical connector correctly positioned.
    2. Place the special tool on the A/C clutch field coil.
    3. Place special tool 412-065 on special tool 412-078.
    4. Use the special tool to install the A/C clutch field coil.
  3. Install the A/C compressor pulley.
  4. Install the A/C compressor pulley snap ring.
  5. Install the A/C clutch disc and hub spacer(s) and the A/C clutch disc and hub.
  6. Install the A/C clutch disc and hub bolt.
    1. Hold the A/C clutch disc and hub with the special tool
    2. Tighten to 13 Nm (10 lb-ft).
    Fig 2: Installing A/C Clutch Disc And Hub Bolt
    G03952015Courtesy of FORD MOTOR CO.
  7. Measure and adjust the clutch air gap by adding or removing A/C clutch disc and hub spacers.
    Fig 3: Measuring And Adjusting Clutch Air Gap
    G03965284Courtesy of FORD MOTOR CO.
  8. Install the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR - 4.2L  or AIR CONDITIONING (A/C) COMPRESSOR - 4.6L AND 5.4L .
